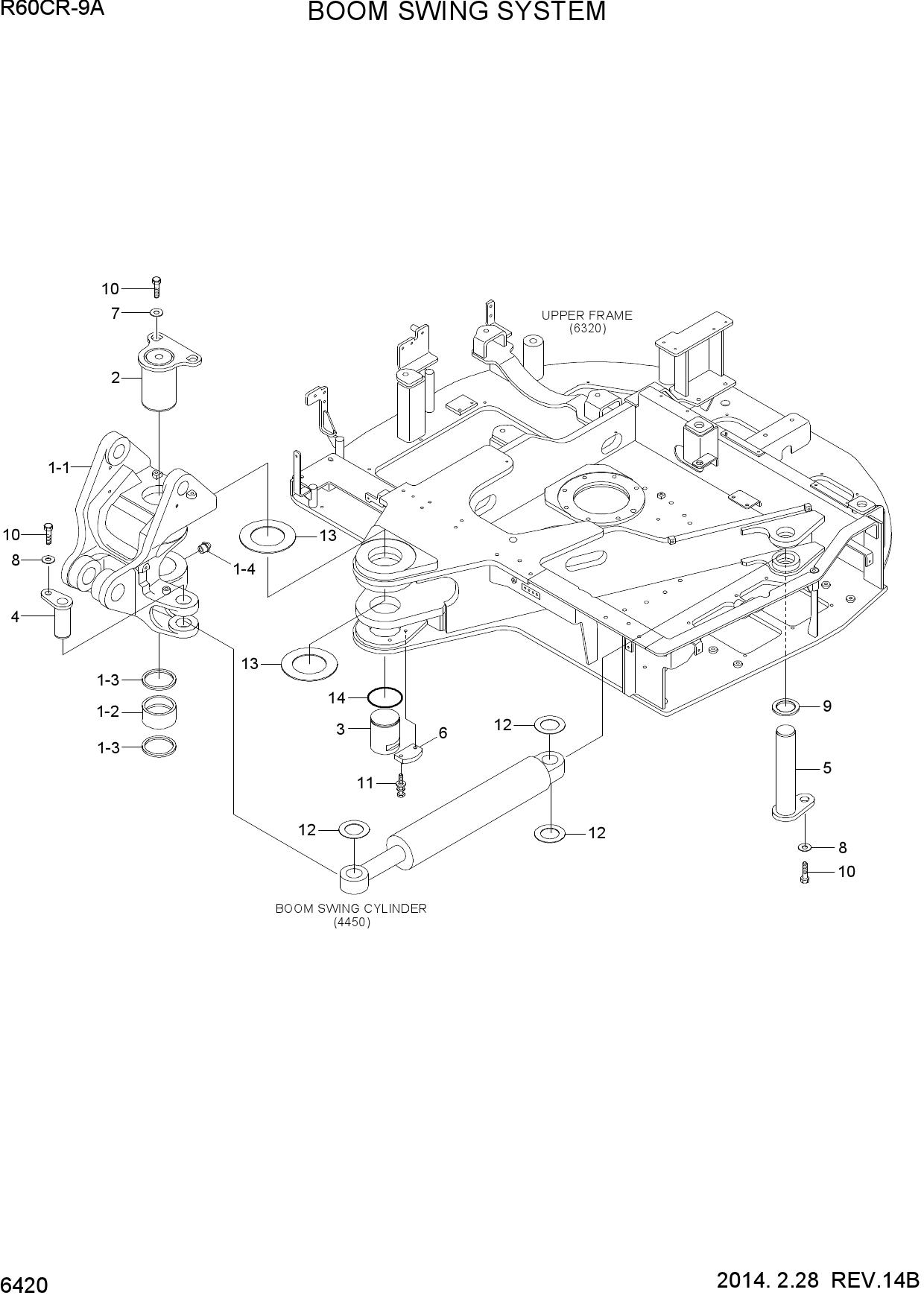

BOOM SWING SYSTEM
1 41ML-70001
- 41ML-70001 - SWING POST ASSY
- Поз.: 1
2 41ML-70011
- 41ML-70011 - SWING POST
- Поз.: 1-1
3 61M9-91100
- 61M9-91100 - BUSHING
- Поз.: 1-2
4 Y020-110011
- Y020-110011 - SEAL-DUST
- DLI
- KPU
- Поз.: 1-3
5 S651-810002
- S651-810002 - NIPPLE-GREASE
- Поз.: 1-4
6 41M8-70021GG
- 41M8-70021GG - PIN ASSY
- Поз.: 2
7 S651-810002
- S651-810002 - NIPPLE-GREASE
- Поз.: 2-1
8 41M8-70032
- 41M8-70032 - PIN
- Поз.: 3
9 41M8-70033
- 41M8-70033 - PIN
- Поз.: 3
10 61M8-01711GG
- 61M8-01711GG - PIN ASSY
- Поз.: 4
11 61ML-01762
- 61ML-01762 - PIN ASSY
- Поз.: 5
12 41M5-70111GG
- 41M5-70111GG - LOCK PLATE
- Поз.: 6
13 61N8-00300-DA
- 61N8-00300-DA - WASHER-HARDENED
- Поз.: 7
14 61N8-00330-DA
- 61N8-00330-DA - WASHER-HARDENED
- Поз.: 8
15 61N8-00100GG
- 61N8-00100GG - SPACER-PIN
- Поз.: 9
16 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 10
17 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 11
18 S391-050085
- S391-050085 - SHIM-ROUND(1.0T)
- Поз.: 12
19 S391-110175
- S391-110175 - SHIM-ROUND(1.0T)
- Поз.: 13
20 S601-110006
- S601-110006 - RING-RETAINING
- C TYPE
- Поз.: 14
