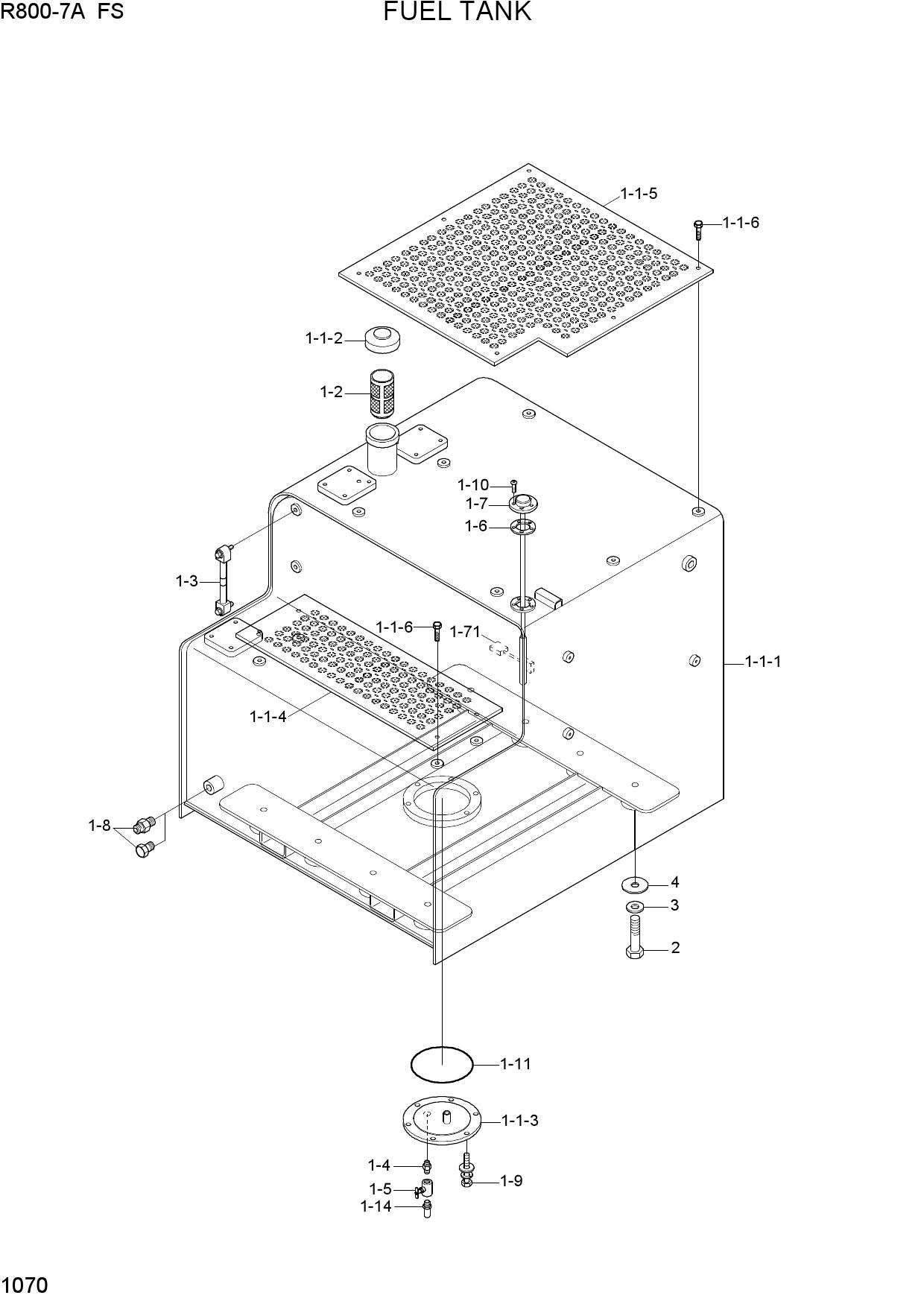

FUEL TANK
1 31ND-02201
- 31ND-02201 - FUEL TANK SUB ASSY
- Поз.: 1-1
2 31ND-02011
- 31ND-02011 - FUEL TANK WA
- Поз.: 1-1-1
3 31N4-02120
- 31N4-02120 - FUEL CAP ASSY
- Поз.: 1-1-2
4 31N4-02110
- 31N4-02110 - COVER-DRAIN
- Поз.: 1-1-3
5 71ND-46102
- 71ND-46102 - NON SLIP PLATE
- Поз.: 1-1-4
6 71ND-46303
- 71ND-46303 - NON SLIP PLATE
- Поз.: 1-1-5
7 S037-121556
- S037-121556 - BOLT-W/WASHER
- Поз.: 1-1-6
8 31QA-02080
- 31QA-02080 - STRAINER
- Поз.: 1-2
9 31N6-02600
- 31N6-02600 - GAUGE-LEVEL
- Поз.: 1-3
10 31E5-3049
- 31E5-3049 - FITTING
- Поз.: 1-4
11 E131-1006
- E131-1006 - VALVE-NEEDLE
- Поз.: 1-5
12 E128-1053
- E128-1053 - GASKET
- Поз.: 1-6
13 21QB-10700
- 21QB-10700 - SENDER-FUEL
- Поз.: 1-7
14 21N6-10710
- 21N6-10710 - FLOAT
- Поз.: 1-71
15 P220-430204
- P220-430204 - PLUG-HEX
- Поз.: 1-8
16 P090-101608
- P090-101608 - CONNECTOR-HOSE
- Поз.: 1-8
17 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 1-9
18 S131-051546
- S131-051546 - SCREW-W/WASHER
- Поз.: 1-10
19 S632-170001
- S632-170001 - O-RING
- Поз.: 1-11
20 P090-100404
- P090-100404 - CONNECTOR-HOSE
- Поз.: 1-14
21 S017-20080D
- S017-20080D - BOLT-HEX
- Поз.: 2
22 31ND-01370
- 31ND-01370 - SPACER
- Поз.: 3
23 31N8-01300
- 31N8-01300 - SHIM(1.0T)
- Поз.: 4
