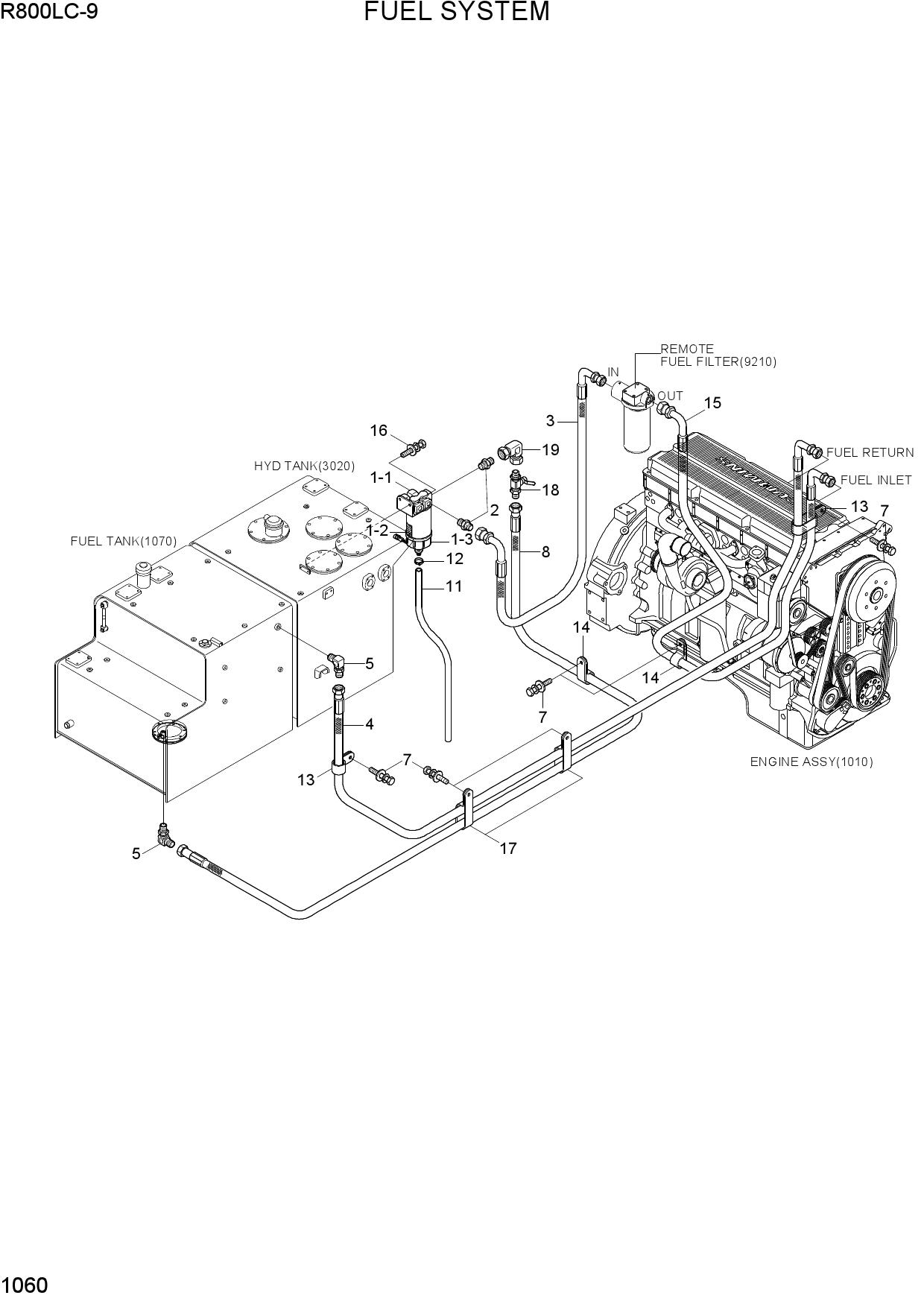

FUEL SYSTEM
1 11NB-70400
- 11NB-70400 - PREFILTER ASSY
- Поз.: 1
2 11LD-20240
- 11LD-20240 - HEAD-FILTER
- Поз.: 1-1
3 11LB-20310
- 11LB-20310 - ELEMENT ASSY-F/FILTER
- Поз.: 1-2
4 11NB-70410
- 11NB-70410 - BOWL ASSY-W/HEATER
- Поз.: 1-3
5 11NA-50042
- 11NA-50042 - CONNECTOR
- Поз.: 2
6 11ND-50023
- 11ND-50023 - HOSE-FUEL
- Поз.: 3
7 11ND-50032
- 11ND-50032 - HOSE ASSY-RETURN
- Поз.: 4
8 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 5
9 S037-101526
- S037-101526 - BOLT-W/WASHER
- Поз.: 7
10 11ND-50070
- 11ND-50070 - HOSE-FUEL
- Поз.: 8
11 11N1-50040
- 11N1-50040 - HOSE-DRAIN
- Поз.: 11
12 S520-017000
- S520-017000 - CLAMP-HOSE
- Поз.: 12
13 31L7-10200
- 31L7-10200 - CLAMP-TUBE
- Поз.: 13
14 31L7-10240
- 31L7-10240 - CLAMP-TUBE INS
- Поз.: 14
15 11ND-50051
- 11ND-50051 - HOSE-FUEL
- Поз.: 15
16 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 16
17 31L7-10260
- 31L7-10260 - CLAMP-TUBE
- Поз.: 17
18 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 18
19 11ND-50060
- 11ND-50060 - ELBOW-90
- ORFS
- Поз.: 19
