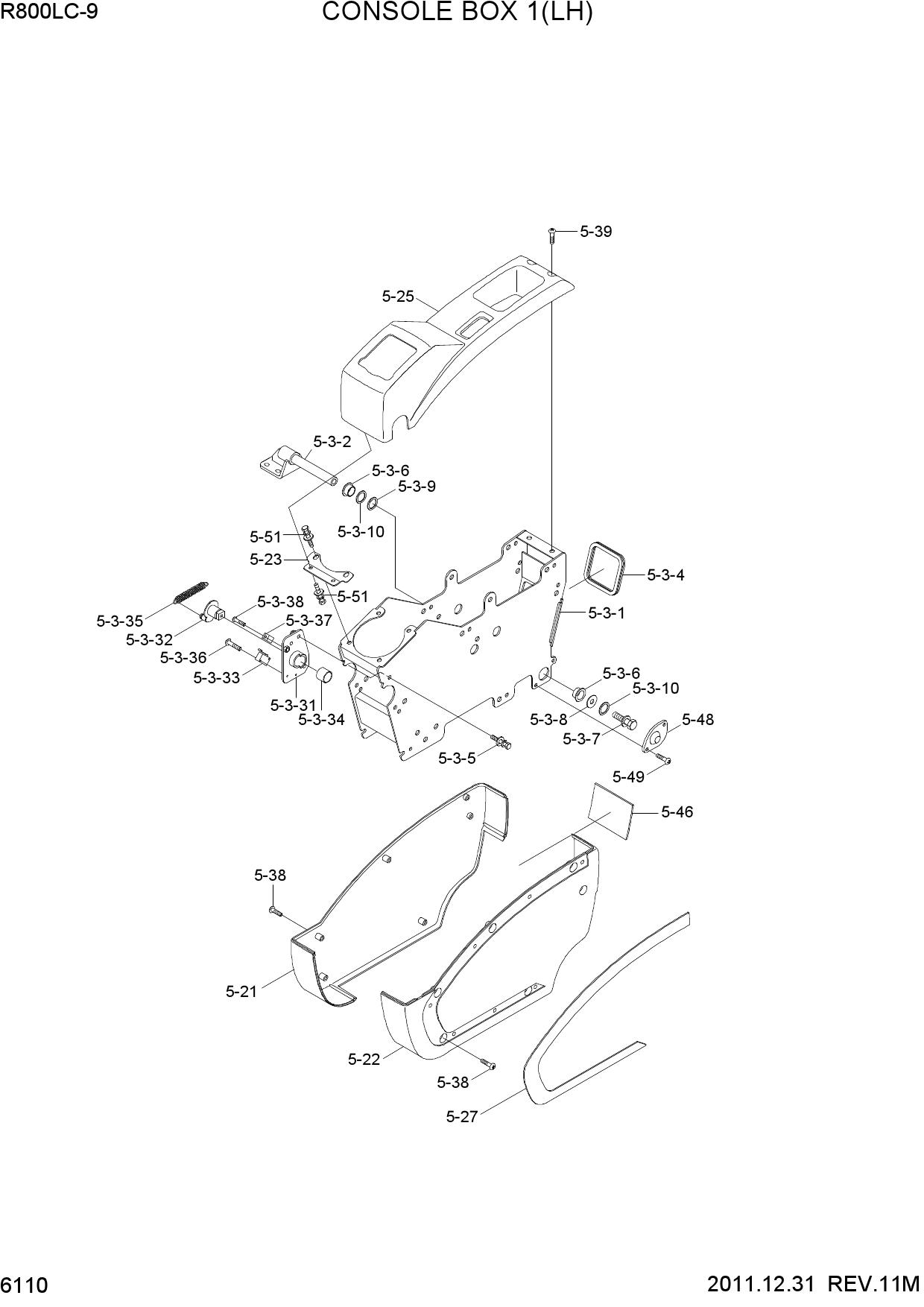

CONSOLE BOX 1(LH)
1 71Q6-23670
- 71Q6-23670 - CONSOLE FRAME ASSY-LH
- Поз.: 5-3
2 71Q4-21341
- 71Q4-21341 - FRAME WA-CONSOLE
- Поз.: 5-3-1
3 71Q6-23720
- 71Q6-23720 - BRACKET WA-CONSOLE
- Поз.: 5-3-2
4 71Q6-20920
- 71Q6-20920 - BRACKET ASSY-SAFETY
- Поз.: 5-3-3
5 71Q6-20930
- 71Q6-20930 - BRACKET-LOWER
- Поз.: 5-3-31
6 71Q6-20960
- 71Q6-20960 - BRACKET-UPPER
- Поз.: 5-3-32
7 21N8-20300
- 21N8-20300 - SWITCH-MICRO
- Поз.: 5-3-33
8 S731-020015
- S731-020015 - DU BUSHING
- Поз.: 5-3-34
9 71N6-21610
- 71N6-21610 - SPRING
- Поз.: 5-3-35
10 S161-030156
- S161-030156 - SCREW-CROSS R/ROUND
- Поз.: 5-3-36
11 71Q6-22840
- 71Q6-22840 - PLATE-STOPPER
- Поз.: 5-3-37
12 S131-051526
- S131-051526 - SCREW-W/WASHER
- Поз.: 5-3-38
13 71Q6-21420
- 71Q6-21420 - GROMMET
- Поз.: 5-3-4
14 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 5-3-5
15 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 5-3-6
16 S037-102016
- S037-102016 - BOLT-W/WASHER
- Поз.: 5-3-7
17 71Q6-23700
- 71Q6-23700 - SHIM(2.0T)-ROUND
- Поз.: 5-3-8
18 71Q6-22631
- 71Q6-22631 - SHIM(1.0T)-CONSOLE
- Поз.: 5-3-9
19 71Q6-23080
- 71Q6-23080 - SHIM(1.0T)-CONSOLE
- Поз.: 5-3-10
20 71Q6-22050GG
- 71Q6-22050GG - CONSOLE COVER-LOW
- RH
- Поз.: 5-21
21 71Q6-22010GG
- 71Q6-22010GG - CONSOLE COVER-LOW
- LH
- Поз.: 5-22
22 71Q6-21610
- 71Q6-21610 - BRACKET-CONSOLE UP
- Поз.: 5-23
23 71Q6-22060GG
- 71Q6-22060GG - CONSOLE COVER UP-LH
- Поз.: 5-25
24 71Q6-22031
- 71Q6-22031 - CONSOLE COVER-TRIM
- Поз.: 5-27
25 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 5-38
26 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 5-39
27 71Q6-22670
- 71Q6-22670 - PROTECTOR
- Поз.: 5-46
28 71Q6-22672
- 71Q6-22672 - PROTECTOR
- Поз.: 5-46
29 71Q6-23130GG
- 71Q6-23130GG - CAP-CONSOLE
- Поз.: 5-48
30 S002-05015B
- S002-05015B - SCREW-TRUS HEAD
- Поз.: 5-49
31 S035-061526
- S035-061526 - BOLT-W/WASHER
- Поз.: 5-51
