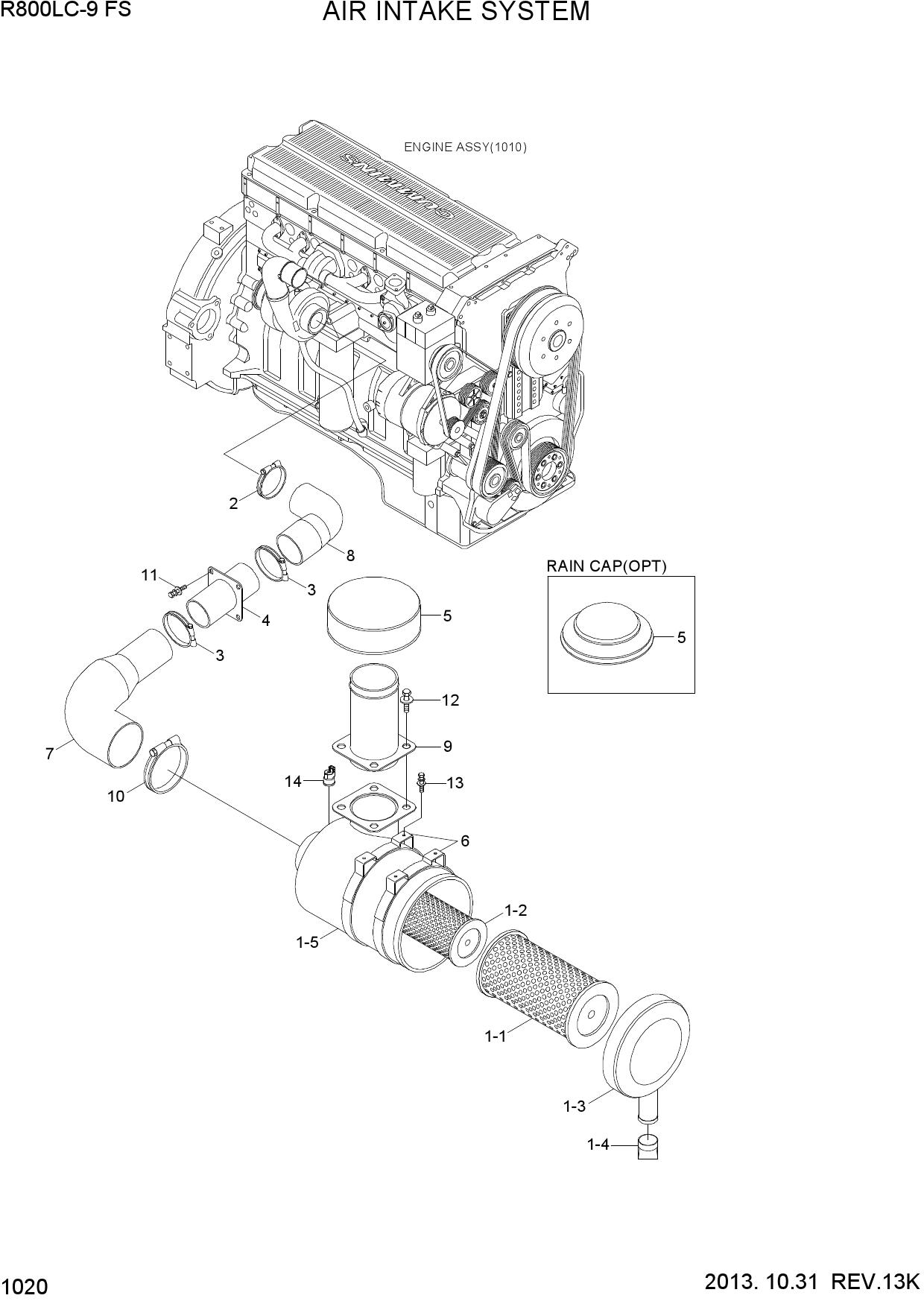

AIR INTAKE SYSTEM
1 11ND-20160
- 11ND-20160 - AIR CLEANER ASSY
- Поз.: 1
2 11ND-20240
- 11ND-20240 - ELEMENT-PRIMARY
- Поз.: 1-1
3 11ND-20230
- 11ND-20230 - ELEMENT-SAFETY
- Поз.: 1-2
4 11ND-20220
- 11ND-20220 - COVER ASSY
- Поз.: 1-3
5 11ND-20210
- 11ND-20210 - VALVE-VACUUM
- Поз.: 1-4
6 11ND-20200
- 11ND-20200 - BODY ASSY
- Поз.: 1-5
7 11LB-40300
- 11LB-40300 - CLAMP-BAND
- T-BOLT
- Поз.: 2
8 11LB-40330
- 11LB-40330 - CLAMP-BAND
- T-BOLT
- Поз.: 3
9 11ND-20050
- 11ND-20050 - BRACKET-CONNECTOR
- Поз.: 4
10 11ND-20610
- 11ND-20610 - PRECLEANER
- Поз.: 5
11 11ND-20190
- 11ND-20190 - RAIN CAP
- Поз.: 5
12 11ND-20170
- 11ND-20170 - CLAMP ASSY
- Поз.: 6
13 11ND-20420
- 11ND-20420 - HOSE-INTAKE(A)
- Поз.: 7
14 11ND-20410
- 11ND-20410 - HOSE-INTAKE(B)
- Поз.: 8
15 11ND-20411
- 11ND-20411 - HOSE-INTAKE(B)
- Поз.: 8
16 11ND-20181
- 11ND-20181 - PIPE
- Поз.: 9
17 11ND-20150
- 11ND-20150 - CLAMP-BAND
- T-BOLT
- Поз.: 10
18 S037-123026
- S037-123026 - BOLT-W/WASHER
- Поз.: 11
19 S037-122556
- S037-122556 - BOLT-W/WASHER
- Поз.: 12
20 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 13
21 11Q4-21010
- 11Q4-21010 - INDICATOR
- Поз.: 14
