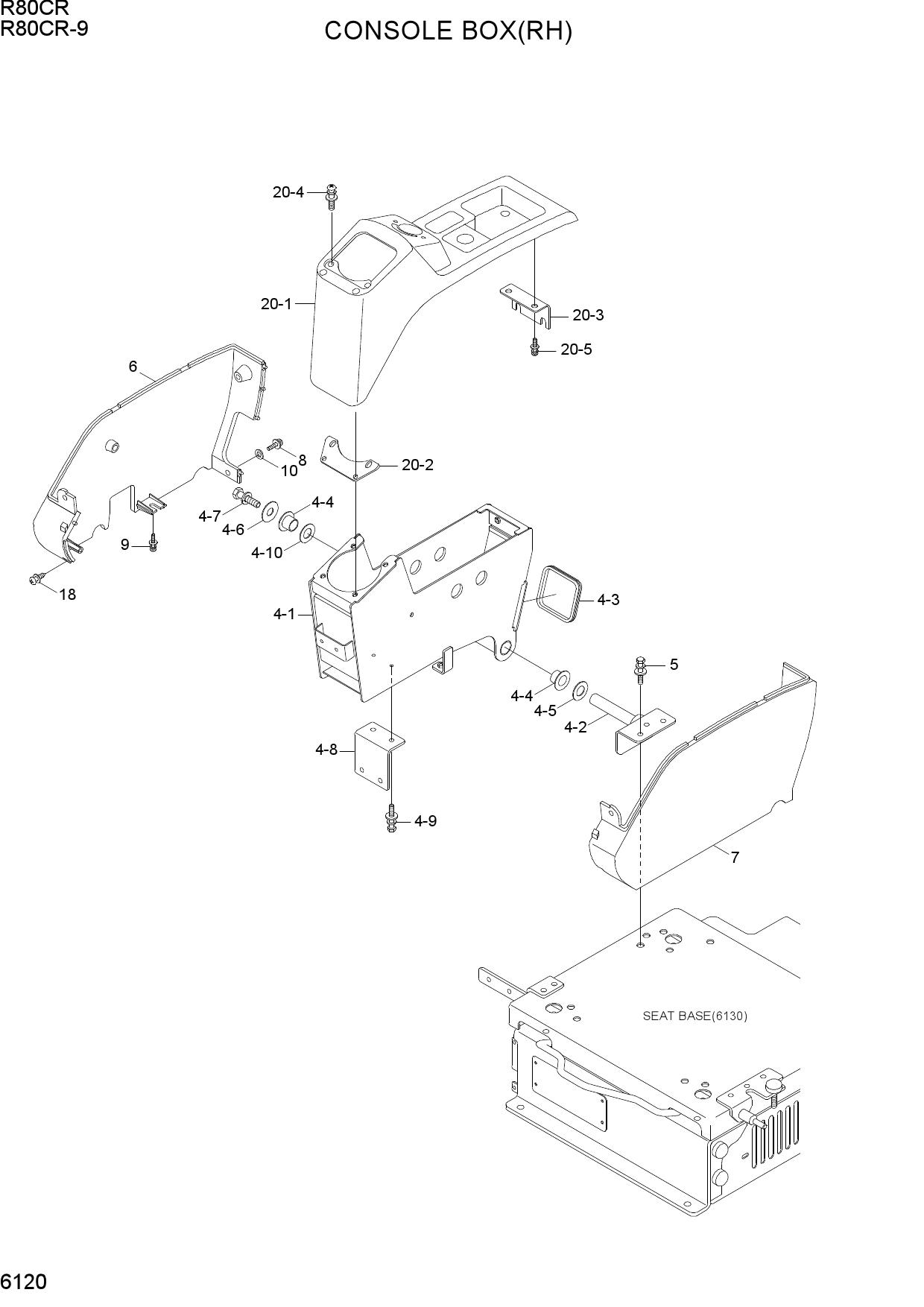

CONSOLE BOX(RH)
1 72M9-23690
- 72M9-23690 - FRAME ASSY-CONSOL
- RH
- Поз.: 4
2 71M9-22612
- 71M9-22612 - FRAME WA-RH
- Поз.: 4-1
3 72M9-23740
- 72M9-23740 - BRACKET WA-CONSOL
- RR
- Поз.: 4-2
4 71Q6-21420
- 71Q6-21420 - GROMMET
- Поз.: 4-3
5 S731-020020
- S731-020020 - BUSHING-DU
- Поз.: 4-4
6 71Q6-22631
- 71Q6-22631 - SHIM(1.0T)-CONSOLE
- Поз.: 4-5
7 71Q6-23700
- 71Q6-23700 - SHIM(2.0T)-ROUND
- Поз.: 4-6
8 S037-102016
- S037-102016 - BOLT-W/WASHER
- Поз.: 4-7
9 71M9-22662
- 71M9-22662 - BRACKET-UNDER
- Поз.: 4-8
10 S035-081526
- S035-081526 - BOLT-W/WASHER
- Поз.: 4-9
11 71Q6-23080
- 71Q6-23080 - SHIM(1.0T)-CONSOLE
- Поз.: 4-10
12 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 5
13 71M9-21021
- 71M9-21021 - CONSOLE LOW-RH
- Поз.: 6
14 71M9-21011
- 71M9-21011 - CONSOLE LOW-LH
- Поз.: 7
15 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 8
16 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 9
17 S403-06500B
- S403-06500B - WASHER-PLAIN
- Поз.: 10
18 S151-040156
- S151-040156 - SCREW-TAPPING
- Поз.: 18
19 71M9-21231
- 71M9-21231 - CONSOLE ASSY-UP
- RH
- Поз.: 20
20 71M9-21251
- 71M9-21251 - COVER-CONSOLE UP
- RH
- Поз.: 20-1
21 71M9-22471
- 71M9-22471 - BRACKET
- Поз.: 20-2
22 71M9-21270
- 71M9-21270 - BRACKET WA
- Поз.: 20-3
23 S002-06010B
- S002-06010B - SCREW-TRUS HEAD
- Поз.: 20-4
24 S002-06015B
- S002-06015B - SCREW-TRUS HEAD
- Поз.: 20-5
