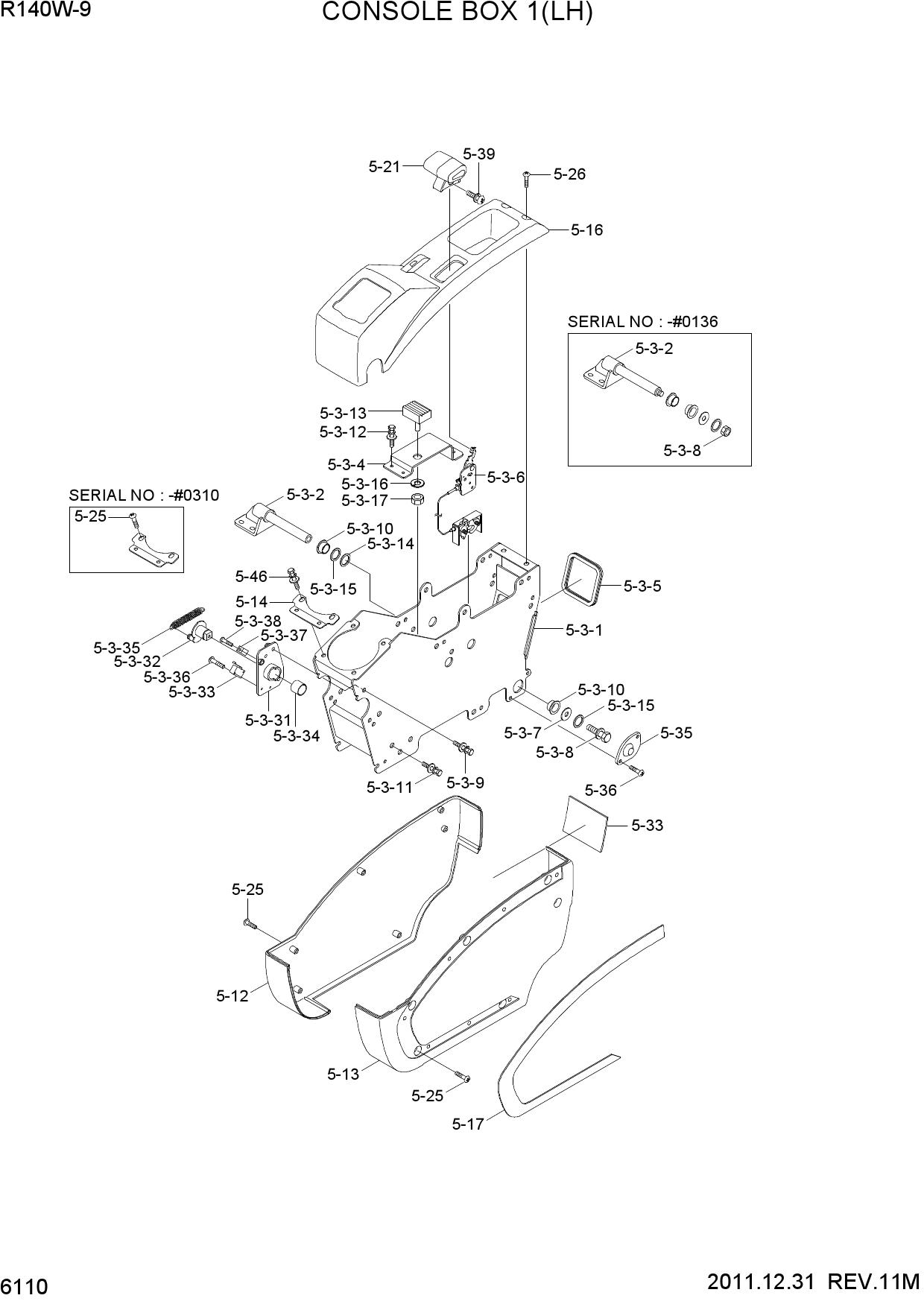

CONSOLE BOX 1(LH)

CONSOLE BOX 1(LH)

CONSOLE BOX 1(LH)

1 71Q4-21001

  • 71Q4-21001 - CONSOLE FRAME ASSY-LH
  • Поз.: 5-3

2 71Q4-23670

  • 71Q4-23670 - CONSOLE FRAME ASSY-LH
  • Поз.: 5-3

3 71Q4-21331

  • 71Q4-21331 - FRAME WA-CONSOLE
  • Поз.: 5-3-1

4 71Q6-21311

  • 71Q6-21311 - BRACKET WA-CONSOLE
  • Поз.: 5-3-2

5 71Q6-23720

  • 71Q6-23720 - BRACKET WA-CONSOLE
  • Поз.: 5-3-2

6 71Q6-20920

  • 71Q6-20920 - BRACKET ASSY-SAFETY
  • Поз.: 5-3-3

7 71Q6-20930

  • 71Q6-20930 - BRACKET-LOWER
  • Поз.: 5-3-31

8 71Q6-20960

  • 71Q6-20960 - BRACKET-UPPER
  • Поз.: 5-3-32

9 21N8-20300

  • 21N8-20300 - SWITCH-MICRO
  • Поз.: 5-3-33

10 S731-020010

  • S731-020010 - BUSHING-DU
  • Поз.: 5-3-34

11 71N6-21610

  • 71N6-21610 - SPRING
  • Поз.: 5-3-35

12 S161-030156

  • S161-030156 - SCREW-CROSS R/ROUND
  • Поз.: 5-3-36

13 71Q6-22840

  • 71Q6-22840 - PLATE-STOPPER
  • Поз.: 5-3-37

14 S131-051526

  • S131-051526 - SCREW-W/WASHER
  • Поз.: 5-3-38

15 71Q4-22070

  • 71Q4-22070 - PLATE
  • Поз.: 5-3-4

16 71Q6-21420

  • 71Q6-21420 - GROMMET
  • Поз.: 5-3-5

17 71Q4-22001

  • 71Q4-22001 - LATCH ASSY
  • Поз.: 5-3-6

18 71Q4-22002

  • 71Q4-22002 - LATCH ASSY
  • Поз.: 5-3-6

19 71Q6-22690

  • 71Q6-22690 - SHIM-ROUND
  • Поз.: 5-3-7

20 71Q6-23700

  • 71Q6-23700 - SHIM(2.0T)-ROUND
  • Поз.: 5-3-7

21 S275-12000B

  • S275-12000B - NUT-SELF LOCKING
  • Поз.: 5-3-8

22 S037-102016

  • S037-102016 - BOLT-W/WASHER
  • Поз.: 5-3-8

23 71Q6-22631

  • 71Q6-22631 - SHIM(1.0T)-CONSOLE
  • Поз.: 5-3-9

24 S731-020020

  • S731-020020 - BUSHING-DU
  • Поз.: 5-3-10

25 S035-084526

  • S035-084526 - BOLT-W/WASHER
  • Поз.: 5-3-11

26 S132-061526

  • S132-061526 - SCREW-W/WASHER
  • Поз.: 5-3-12

27 71Q4-22140

  • 71Q4-22140 - DAMPER-CONSOLE
  • Поз.: 5-3-13

28 71Q6-22631

  • 71Q6-22631 - SHIM(1.0T)-CONSOLE
  • Поз.: 5-3-14

29 71Q6-23080

  • 71Q6-23080 - SHIM(1.0T)-CONSOLE
  • Поз.: 5-3-15

30 S403-08200B

  • S403-08200B - WASHER-PLAIN
  • Поз.: 5-3-16

31 S205-08100B

  • S205-08100B - NUT-HEX
  • Поз.: 5-3-17

32 71Q6-22050

  • 71Q6-22050 - CONSOLE COVER-LOW
  • RH
  • Поз.: 5-12

33 71Q6-22050GG

  • 71Q6-22050GG - CONSOLE COVER-LOW
  • RH
  • Поз.: 5-12

34 71Q6-22010

  • 71Q6-22010 - CONSOLE COVER-LOW
  • LH
  • Поз.: 5-13

35 71Q6-22010GG

  • 71Q6-22010GG - CONSOLE COVER-LOW
  • LH
  • Поз.: 5-13

36 71Q6-21610

  • 71Q6-21610 - BRACKET-CONSOLE UP
  • Поз.: 5-14

37 71Q4-22060

  • 71Q4-22060 - CONSOLE COVER-UP
  • LH
  • Поз.: 5-16

38 71Q4-22060GG

  • 71Q4-22060GG - CONSOLE COVER-UP
  • LH
  • Поз.: 5-16

39 71Q6-22031

  • 71Q6-22031 - CONSOLE COVER-TRIM
  • Поз.: 5-17

40 71Q4-22120

  • 71Q4-22120 - KNOB-LATCH
  • Поз.: 5-21

41 71Q4-22120GG

  • 71Q4-22120GG - KNOB-LATCH
  • Поз.: 5-21

42 S002-06010B

  • S002-06010B - SCREW-TRUS HEAD
  • Поз.: 5-25

43 S002-06010B

  • S002-06010B - SCREW-TRUS HEAD
  • Поз.: 5-25

44 S002-06015B

  • S002-06015B - SCREW-TRUS HEAD
  • Поз.: 5-26

45 S002-06015B

  • S002-06015B - SCREW-TRUS HEAD
  • Поз.: 5-26

46 71Q6-22670

  • 71Q6-22670 - PROTECTOR
  • Поз.: 5-33

47 71Q6-22672

  • 71Q6-22672 - PROTECTOR
  • Поз.: 5-33

48 71Q6-23130

  • 71Q6-23130 - CAP-CONSOLE
  • Поз.: 5-35

49 71Q6-23130GG

  • 71Q6-23130GG - CAP-CONSOLE
  • Поз.: 5-35

50 S002-05015B

  • S002-05015B - SCREW-TRUS HEAD
  • Поз.: 5-36

51 S131-040826

  • S131-040826 - SCREW-W/WASHER
  • Поз.: 5-39

52 S131-040826

  • S131-040826 - SCREW-W/WASHER
  • Поз.: 5-39
