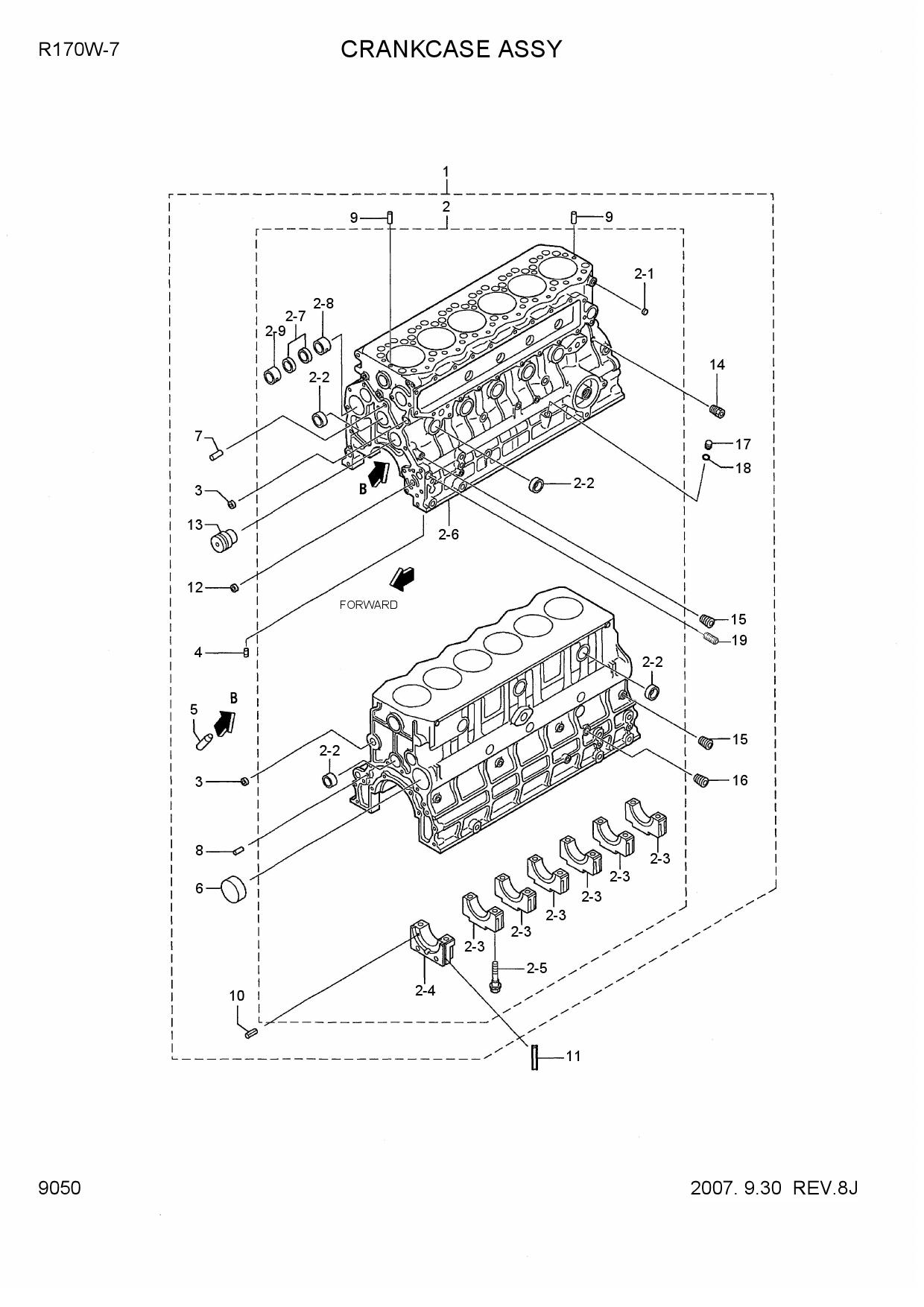

CRANKCASE ASSY
1 XJAF-02593
- XJAF-02593 - CRANKCASE ASSY
- Поз.: 1
2 XJAF-00189
- XJAF-00189 - CAP-SEALING
- Поз.: 2-1
3 XJAF-00190
- XJAF-00190 - CAP-SEALING
- Поз.: 2-2
4 XJAF-00605
- XJAF-00605 - BOLT-BEARING CAP
- Поз.: 2-5
5 XJAF-00194
- XJAF-00194 - BUSHING-CAMSHAFT
- Поз.: 2-7
6 XJAF-00195
- XJAF-00195 - BUSHING-CAMSHAFT
- Поз.: 2-8
7 XJAF-00192
- XJAF-00192 - BUSHING-CAMSHAFT
- Поз.: 2-9
8 XJAF-00189
- XJAF-00189 - CAP-SEALING
- Поз.: 3
9 XJAF-00606
- XJAF-00606 - VALVE-CHECK
- Поз.: 5
10 XJAF-00198
- XJAF-00198 - PLUG-CAM
- Поз.: 6
11 XJAF-00607
- XJAF-00607 - PIN-DOWEL
- Поз.: 7
12 XJAF-00202
- XJAF-00202 - PIN-DOWEL
- Поз.: 8
13 XJAF-00608
- XJAF-00608 - PIN-DOWEL
- Поз.: 9
14 XJAF-00609
- XJAF-00609 - PIN-SPRING
- Поз.: 10
15 XJAF-00611
- XJAF-00611 - BUSHING
- Поз.: 12
16 XJAF-00612
- XJAF-00612 - SHAFT-IDLER
- Поз.: 13
17 XJAF-00613
- XJAF-00613 - PLUG-TAPER
- Поз.: 14
18 XJAF-00201
- XJAF-00201 - PLUG-TAPER
- Поз.: 15
19 XJAF-00208
- XJAF-00208 - PLUG-TAPER
- Поз.: 16
20 XJAF-00614
- XJAF-00614 - PLUG
- Поз.: 17
21 XJAF-00276
- XJAF-00276 - O-RING
- Поз.: 18
22 XJAF-02594
- XJAF-02594 - PLUG
- TAPERED
- Поз.: 19
23 XJAF-00610
- XJAF-00610 - SEAL-SIDE
- Поз.: 11
