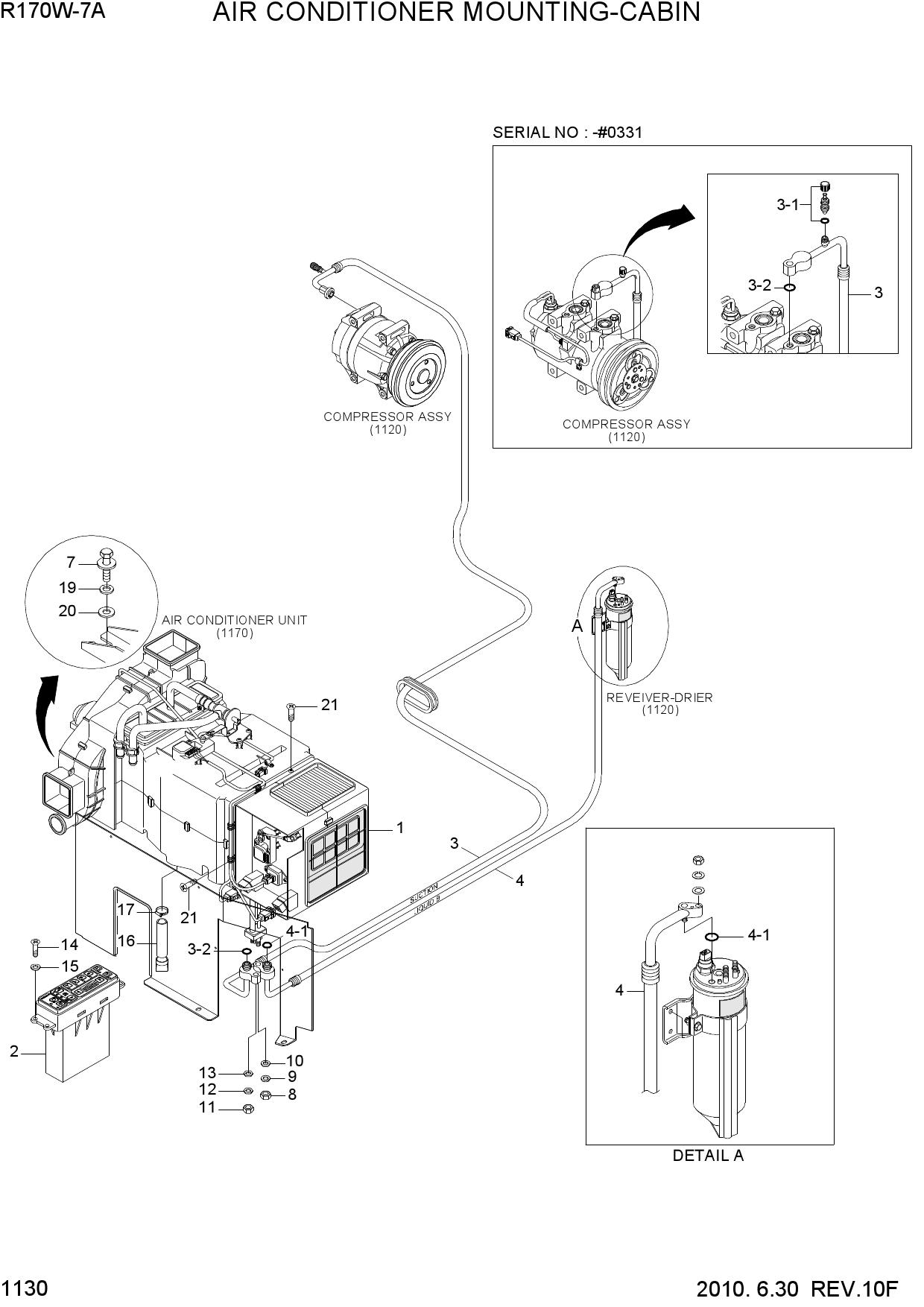

AIR CONDITIONER MOUNTING-CABIN
1 11N6-90031
- 11N6-90031 - CONTROL ASSY-SEMI
- Поз.: 2
2 11N4-90100
- 11N4-90100 - HOSE-SUCTION
- Поз.: 3
3 11N4-90101
- 11N4-90101 - HOSE-SUCTION
- Поз.: 3
4 A304000401-4
- A304000401-4 - CHARGE VALVE ASSY
- Поз.: 3-1
5 A310069299-2
- A310069299-2 - O-RING
- Поз.: 3-2
6 11N5-90090
- 11N5-90090 - HOSE(B)-LIQUID
- Поз.: 4
7 A305000209-2
- A305000209-2 - O-RING
- Поз.: 4-1
8 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 7
9 S205-061006
- S205-061006 - NUT-HEX
- Поз.: 8
10 S411-060006
- S411-060006 - WASHER-SPRING
- Поз.: 9
11 S403-06100B
- S403-06100B - WASHER-PLAIN
- Поз.: 10
12 S205-081006
- S205-081006 - NUT-HEX
- Поз.: 11
13 S411-080006
- S411-080006 - WASHER-SPRING
- Поз.: 12
14 S403-08100B
- S403-08100B - WASHER-PLAIN
- Поз.: 13
15 S179-050206
- S179-050206 - SCREW-SOCKET RD HD
- Поз.: 14
16 S403-05200B
- S403-05200B - WASHER-PLAIN
- Поз.: 15
17 11EK-92090
- 11EK-92090 - HOSE-DRAIN
- Поз.: 16
18 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 17
19 S441-120006
- S441-120006 - WASHER-HARDENED
- Поз.: 19
20 73NB-56400
- 73NB-56400 - SHIM
- Поз.: 20
21 S151-040126
- S151-040126 - SCREW-TAPPING
- Поз.: 21
