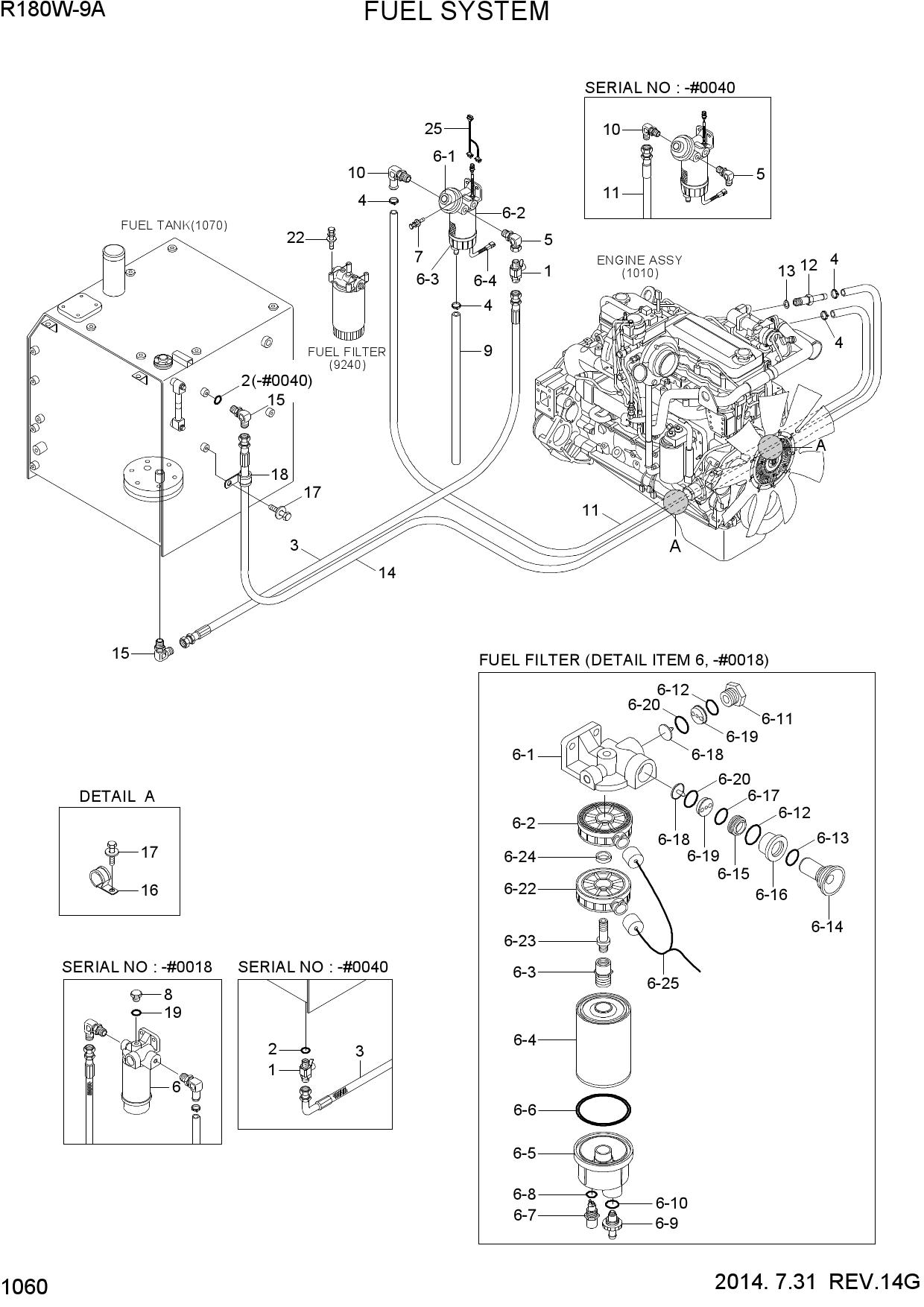

FUEL SYSTEM
1 11Q4-50010
- 11Q4-50010 - VALVE-FUEL CUT
- Поз.: 1
2 S631-018004
- S631-018004 - O-RING
- Поз.: 1-1
3 S631-018004
- S631-018004 - O-RING
- Поз.: 2
4 11N5-50020
- 11N5-50020 - HOSE ASSY-FUEL
- Поз.: 3
5 11QE-50010
- 11QE-50010 - HOSE-FUEL
- Поз.: 3
6 S520-020000
- S520-020000 - CLAMP-HOSE
- Поз.: 4
7 11Q4-50060
- 11Q4-50060 - ELBOW-90
- Поз.: 5
8 11Q4-52130
- 11Q4-52130 - ELBOW-90
- ORFS
- Поз.: 5
9 11NA-73000
- 11NA-73000 - FUEL FILTER & W/S ASSY
- Поз.: 6
10 11NA-71001
- 11NA-71001 - FUEL FILTER & W/S ASSY
- Поз.: 6
11 11NA-71010
- 11NA-71010 - HEAD-FILTER
- Поз.: 6-1
12 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 6-2
13 11NA-71030
- 11NA-71030 - CONNECTOR
- Поз.: 6-3
14 11NA-71041
- 11NA-71041 - ELEMENT ASSY
- Поз.: 6-4
15 11NA-71050
- 11NA-71050 - BOWL-CLEAR
- Поз.: 6-5
16 11NA-71060
- 11NA-71060 - O-RING
- Поз.: 6-6
17 11NA-71070
- 11NA-71070 - SENSOR
- Поз.: 6-7
18 11NA-71080
- 11NA-71080 - O-RING
- Поз.: 6-8
19 11NA-71090
- 11NA-71090 - VALVE-SCREW
- Поз.: 6-9
20 11NA-71100
- 11NA-71100 - O-RING
- Поз.: 6-10
21 11NA-71020
- 11NA-71020 - HEATER-FUEL
- Поз.: 6-22
22 11Q6-50100
- 11Q6-50100 - CONNECTOR
- Поз.: 6-23
23 11Q6-50110
- 11Q6-50110 - SPACER
- Поз.: 6-24
24 21Q8-23200
- 21Q8-23200 - HARNESS-FUEL WARMER
- Поз.: 6-25
25 11QA-71000
- 11QA-71000 - FUEL FILTER ASSY
- Поз.: 6
26 11QA-73000
- 11QA-73000 - FUEL FILTER ASSY
- Поз.: 6
27 11QA-71010
- 11QA-71010 - HEAD ASSY
- Поз.: 6-1
28 11QA-71040
- 11QA-71040 - ELEMENT ASSY
- Поз.: 6-2
29 11QA-71050
- 11QA-71050 - BOWL ASSY
- Поз.: 6-3
30 11QA-71030
- 11QA-71030 - BOWL ASSY
- Поз.: 6-3
31 11QA-71020
- 11QA-71020 - WIF SENSOR ASSY
- Поз.: 6-4
32 S035-082556
- S035-082556 - BOLT-W/WASHER
- Поз.: 7
33 P210-101400
- P210-101400 - PLUG-HEX
- Поз.: 8
34 11F8-00061
- 11F8-00061 - HOSE-FUEL
- Поз.: 9
35 11N8-50060
- 11N8-50060 - ELBOW-90
- Поз.: 10
36 11Q4-50060
- 11Q4-50060 - ELBOW-90
- Поз.: 10
37 11N8-57060
- 11N8-57060 - HOSE-FUEL
- Поз.: 11
38 11Q8-52060
- 11Q8-52060 - HOSE-FUEL
- Поз.: 11
39 11ND-40170
- 11ND-40170 - CONNECTOR
- Поз.: 12
40 P392-120000
- P392-120000 - WASHER-COPPER
- Поз.: 13
41 11N8-57060
- 11N8-57060 - HOSE-FUEL
- Поз.: 14
42 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 15
43 P020-110003
- P020-110003 - ELBOW-90
- Поз.: 15
44 31L7-10220
- 31L7-10220 - CLAMP-TUBE
- INS SINGLE
- Поз.: 16
45 S037-102056
- S037-102056 - BOLT-W/WASHER
- Поз.: 17
46 31L7-10190
- 31L7-10190 - CLAMP-TUBE
- Поз.: 18
47 S631-014001
- S631-014001 - O-RING
- Поз.: 19
48 S035-083026
- S035-083026 - BOLT-W/WASHER
- Поз.: 22
49 21QB-23500
- 21QB-23500 - HARNESS FUEL WARMER
- Поз.: 25
