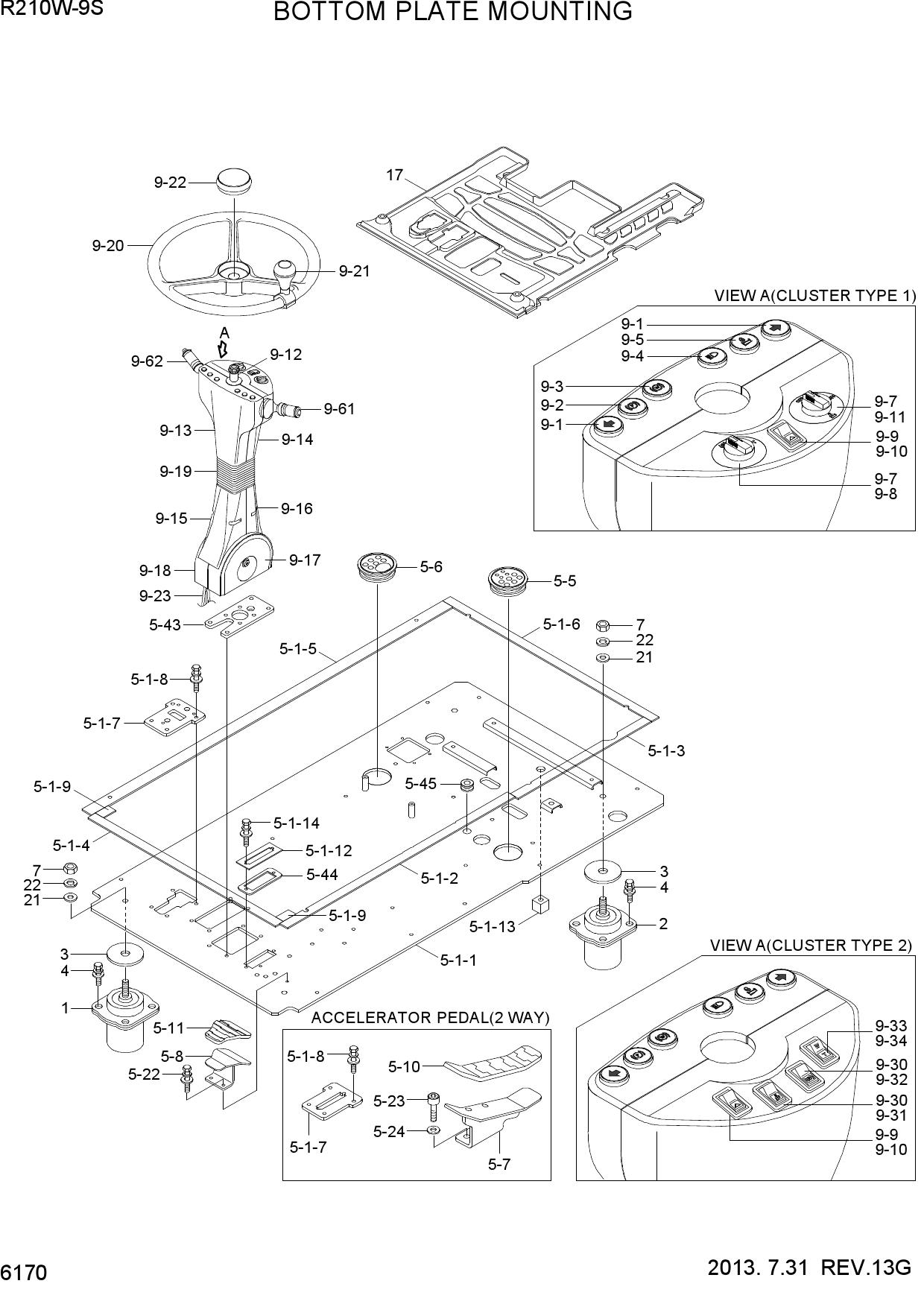

BOTTOM PLATE MOUNTING
1 71Q6-22730
- 71Q6-22730 - VISCOUS MOUNT
- Поз.: 1
2 71Q6-22820
- 71Q6-22820 - VISCOUS MOUNT
- Поз.: 2
3 71E9-10650-DA
- 71E9-10650-DA - WASHER
- Поз.: 3
4 S037-103026
- S037-103026 - BOLT-W/WASHER
- Поз.: 4
5 71Q4-10200
- 71Q4-10200 - BOTTOM PLATE ASSY
- Поз.: 5-1
6 71Q4-10201
- 71Q4-10201 - BOTTOM PLATE ASSY
- Поз.: 5-1
7 71Q4-10210
- 71Q4-10210 - BOTTOM PLATE WA
- Поз.: 5-1-1
8 71Q6-10120
- 71Q6-10120 - PAD-RUBBER
- Поз.: 5-1-2
9 71Q6-10130
- 71Q6-10130 - PAD-RUBBER
- Поз.: 5-1-3
10 71Q6-10140
- 71Q6-10140 - PAD-RUBBER
- Поз.: 5-1-4
11 71Q6-10150
- 71Q6-10150 - PAD-RUBBER
- Поз.: 5-1-5
12 71Q6-10160
- 71Q6-10160 - PAD-RUBBER
- Поз.: 5-1-6
13 71Q4-10300
- 71Q4-10300 - PLATE WA
- Поз.: 5-1-7
14 71Q4-10290
- 71Q4-10290 - PLATE WA
- Поз.: 5-1-7
15 S035-082526
- S035-082526 - BOLT-W/WASHER
- Поз.: 5-1-8
16 71Q6-22780
- 71Q6-22780 - PAD-RUBBER
- Поз.: 5-1-9
17 71Q6-10300
- 71Q6-10300 - PAD-RUBBER
- Поз.: 5-1-12
18 71Q6-10310
- 71Q6-10310 - SPONGE
- Поз.: 5-1-13
19 S017-120156
- S017-120156 - BOLT-HEX
- Поз.: 5-1-14
20 71Q6-20990
- 71Q6-20990 - GROMMET-PILOT HOSE
- Поз.: 5-5
21 71Q6-22960
- 71Q6-22960 - GROMMET-RH
- Поз.: 5-6
22 71Q4-20561
- 71Q4-20561 - PEDAL WA-LH
- Поз.: 5-7
23 71Q6-20530
- 71Q6-20530 - FOOT REST WA-LH
- Поз.: 5-8
24 71Q6-22740
- 71Q6-22740 - RUBBER-PEDAL
- Поз.: 5-10
25 71Q6-20670
- 71Q6-20670 - RUBBER-FOOT REST
- LH
- Поз.: 5-11
26 S037-102526
- S037-102526 - BOLT-W/WASHER
- Поз.: 5-22
27 S037-102026
- S037-102026 - BOLT-W/WASHER
- Поз.: 5-23
28 S403-10200B
- S403-10200B - WASHER-PLAIN
- Поз.: 5-24
29 71Q4-10180
- 71Q4-10180 - ADAPTER
- Поз.: 5-43
30 71Q6-22790
- 71Q6-22790 - COVER-PLATE
- Поз.: 5-44
31 S661-301200
- S661-301200 - CAP-RUBBER
- Поз.: 5-45
32 S205-16100B
- S205-16100B - NUT-HEX
- Поз.: 7
33 71Q4-10231
- 71Q4-10231 - STEERING COLUMN ASSY
- Поз.: 9
34 71Q4-10430
- 71Q4-10430 - STEERING COLUMN ASSY
- Поз.: 9
35 ZTAZ-00051
- ZTAZ-00051 - SIGNAL-TURNING
- Поз.: 9-1
36 ZTAZ-00052
- ZTAZ-00052 - PILOT LAMP-PARKING
- Поз.: 9-2
37 ZTAZ-00053
- ZTAZ-00053 - PILOT LAMP-WORK
- Поз.: 9-3
38 ZTAZ-00054
- ZTAZ-00054 - PILOT LAMP-HIGH BEAM
- Поз.: 9-4
39 ZTAZ-00055
- ZTAZ-00055 - PILOT LAMP-RAM LOCK
- Поз.: 9-5
40 ZTAZ-00072
- ZTAZ-00072 - STEERING COLUMN SW-LH
- Поз.: 9-61
41 ZTAZ-00073
- ZTAZ-00073 - STEERING COLUMN SW-RH
- Поз.: 9-62
42 ZTAZ-00057
- ZTAZ-00057 - SWITCH-SELECT
- Поз.: 9-7
43 ZTAZ-00058
- ZTAZ-00058 - DECAL-PWT
- Поз.: 9-8
44 ZTAZ-00059
- ZTAZ-00059 - SWITCH-HAZARD
- Поз.: 9-9
45 ZTAZ-00037
- ZTAZ-00037 - DECAL-HAZARD
- Поз.: 9-10
46 ZTAZ-00060
- ZTAZ-00060 - DECAL-RAM LOCK
- Поз.: 9-11
47 ZTAZ-00061
- ZTAZ-00061 - STEERING COLUMN
- Поз.: 9-12
48 PSIB0019
- PSIB0019 - STEERING COLUMN
- Поз.: 9-12
49 ZTAZ-00062
- ZTAZ-00062 - COVER-FRONT UPPER
- Поз.: 9-13
50 ZTAZ-00063
- ZTAZ-00063 - COVER-REAR UPPER
- Поз.: 9-14
51 0060.0598
- 0060.0598 - COVER-REAR UPPER
- Поз.: 9-14
52 ZTAZ-00064
- ZTAZ-00064 - COVER-FRONT LOWER
- Поз.: 9-15
53 ZTAZ-00065
- ZTAZ-00065 - COVER-REAR LOWER
- Поз.: 9-16
54 ZTAZ-00066
- ZTAZ-00066 - PROTECTION-LEFT
- Поз.: 9-17
55 ZTAZ-00067
- ZTAZ-00067 - PROTECTION-RIGHT
- Поз.: 9-18
56 ZTAZ-00068
- ZTAZ-00068 - BELLOW-RUBBER
- Поз.: 9-19
57 ZTAZ-00069
- ZTAZ-00069 - WHEEL-STEERING
- Поз.: 9-20
58 ZTAZ-00070
- ZTAZ-00070 - KNOB
- Поз.: 9-21
59 ZTAZ-00032
- ZTAZ-00032 - CAP-CENTER
- Поз.: 9-22
60 ZTAZ-00071
- ZTAZ-00071 - HARNESS
- Поз.: 9-23
61 HY04.C506
- HY04.C506 - HARNESS
- Поз.: 9-23
62 0058.0333
- 0058.0333 - SWITCH-HAZARD
- Поз.: 9-30
63 ZTAZ-00039
- ZTAZ-00039 - KEY-SWITCH
- Поз.: 9-31
64 ZTAZ-00042
- ZTAZ-00042 - KEY-SWITCH
- Поз.: 9-32
65 0058.0334
- 0058.0334 - SWITCH-HAZARD
- Поз.: 9-33
66 0011.0685
- 0011.0685 - KEY-SWITCH
- Поз.: 9-34
67 71Q4-22360
- 71Q4-22360 - MAT-FLOOR
- Поз.: 17
68 71Q4-23020
- 71Q4-23020 - MAT-FLOOR
- Поз.: 17
69 S403-162006
- S403-162006 - WASHER-PLAIN
- Поз.: 21
70 S411-160006
- S411-160006 - WASHER-SPRING
- Поз.: 22
