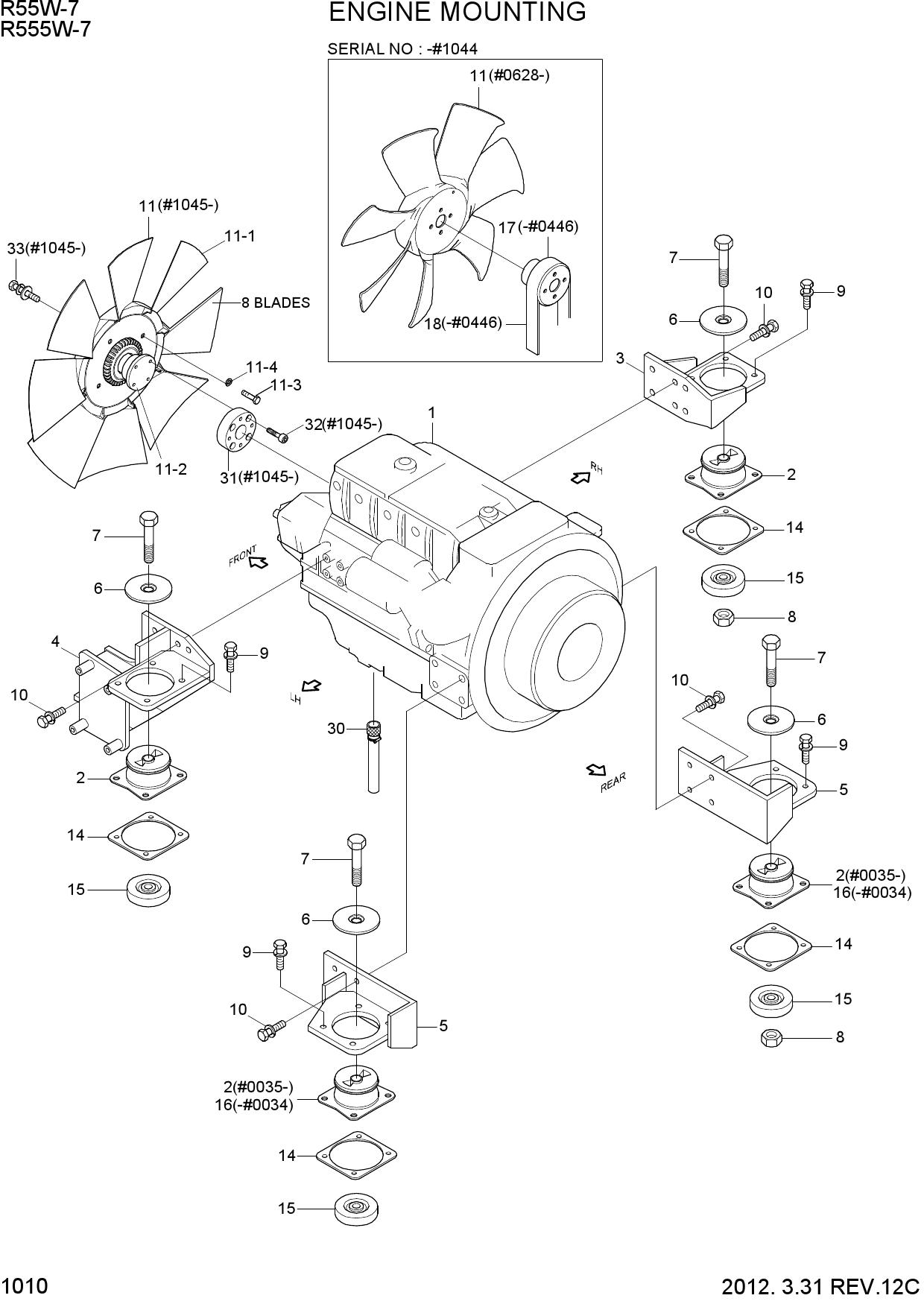

ENGINE MOUNTING
1 11M8-02014
- 11M8-02014 - ENGINE ASSY
- Поз.: 1
2 11M8-00045
- 11M8-00045 - RESILIENT
- Поз.: 2
3 11M8-07550
- 11M8-07550 - RESILIENT
- Поз.: 2
4 11M8-00012
- 11M8-00012 - BRACKET-COMP
- Поз.: 3
5 11M8-00141
- 11M8-00141 - BRACKET-COMP
- Поз.: 3
6 11M8-00150
- 11M8-00150 - BRACKET-COMP
- Поз.: 3
7 11M8-00020
- 11M8-00020 - BRACKET
- Поз.: 4
8 11M8-00030
- 11M8-00030 - BRACKET
- Поз.: 5
9 11M8-00130
- 11M8-00130 - WASHER-OVERLOAD
- Поз.: 6
10 S017-161102
- S017-161102 - BOLT-HEX
- Поз.: 7
11 S205-161002
- S205-161002 - NUT-HEX
- Поз.: 8
12 S035-082522
- S035-082522 - BOLT-W/WASHER
- Поз.: 9
13 S037-103022
- S037-103022 - BOLT-W/WASHER
- Поз.: 10
14 11M8-00110
- 11M8-00110 - FAN-COOLING
- Поз.: 11
15 11N1-00110
- 11N1-00110 - FAN-COOLING
- Поз.: 11
16 11N1-00110
- 11N1-00110 - FAN-COOLING
- Поз.: 11
17 11M8-00170
- 11M8-00170 - FAN-COOLING
- Поз.: 11
18 11Q6-00340
- 11Q6-00340 - FAN-CLUTCH
- COOLING
- Поз.: 11
19 11Q6-00200
- 11Q6-00200 - FAN CLUTCH
- Поз.: 11-1
20 11Q6-01240
- 11Q6-01240 - COOLING FAN
- Поз.: 11-2
21 S109-080126
- S109-080126 - BOLT-SOCKET
- Поз.: 11-3
22 S411-080002
- S411-080002 - WASHER-SPRING
- Поз.: 11-4
23 11M8-00041
- 11M8-00041 - PLATE
- Поз.: 14
24 11N1-10000
- 11N1-10000 - WASHER-OVERLOAD
- Поз.: 15
25 11M8-00060
- 11M8-00060 - RESILIENT
- Поз.: 16
26 XJAU-00190
- XJAU-00190 - PULLEY-FAN
- Поз.: 17
27 XJAU-00473
- XJAU-00473 - PULLEY-FAN
- Поз.: 17
28 XJAU-00467
- XJAU-00467 - V-BELT
- Поз.: 18
29 XJAU-00165
- XJAU-00165 - V-BELT
- Поз.: 18
30 11M8-00120
- 11M8-00120 - CONNECTOR-DRAIN HOSE
- Поз.: 30
31 11N9-00300
- 11N9-00300 - CONNECTOR-DRAIN HOSE
- Поз.: 30
32 11M8-00901
- 11M8-00901 - SPACER
- Поз.: 31
33 S109-080356
- S109-080356 - BOLT-SOCKET
- Поз.: 32
34 S035-082046
- S035-082046 - BOLT-W/WASHER
- Поз.: 33
