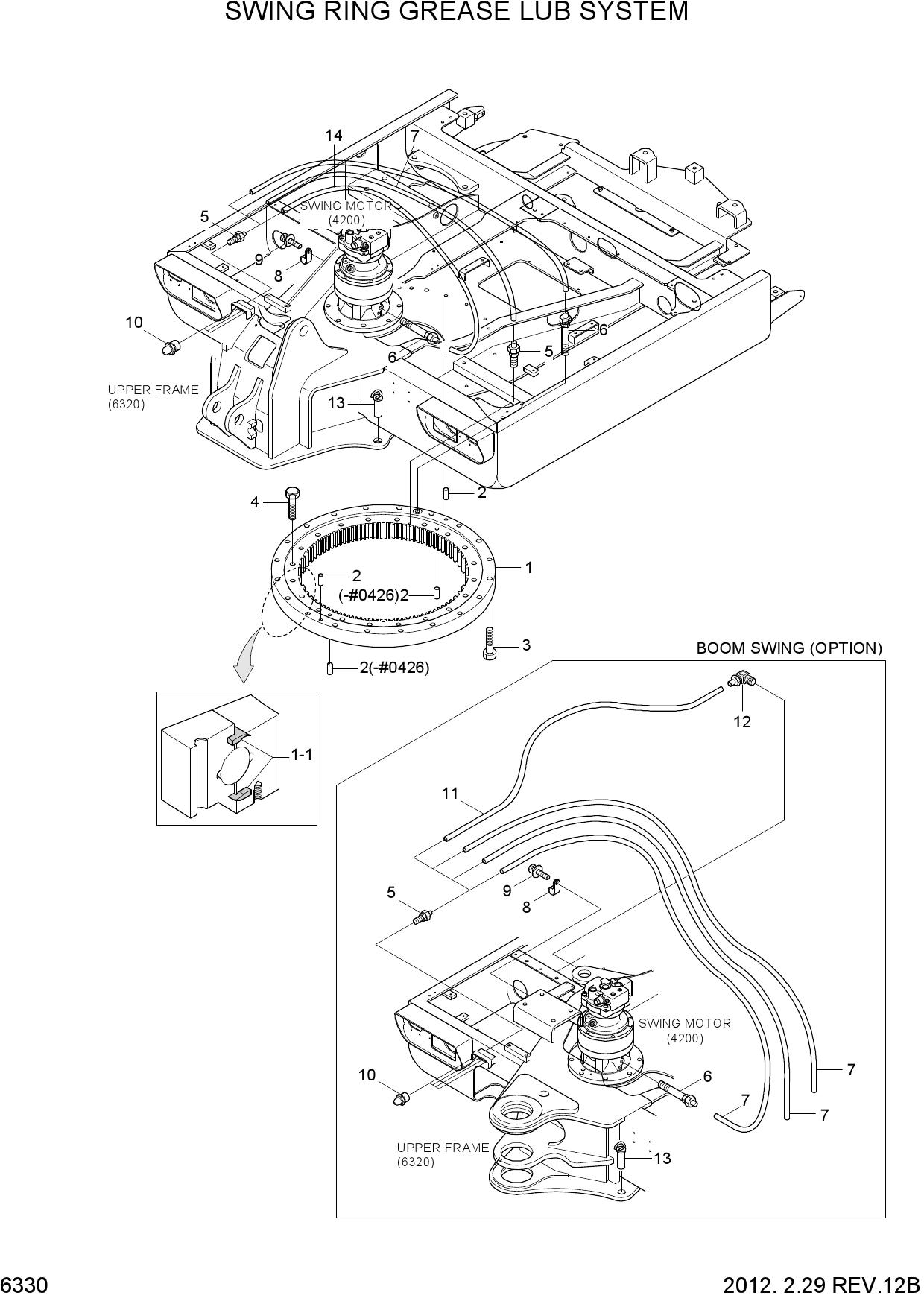

SWING RING GREASE LUB SYSTEM
1 81M8-01020
- 81M8-01020 - SWING BEARING
- Поз.: 1
2 81M8-01021
- 81M8-01021 - SWING BEARING
- Поз.: 1
3 51M6-40070
- 51M6-40070 - SEAL-SWING BEARING
- Поз.: 1-1
4 51M5-00020
- 51M5-00020 - PIN-DOWEL
- Поз.: 2
5 51M5-00020
- 51M5-00020 - PIN-DOWEL
- Поз.: 2
6 S017-160802
- S017-160802 - BOLT-HEX
- Поз.: 3
7 S017-16080A
- S017-16080A - BOLT-HEX(COATING)
- Поз.: 3
8 S017-160806
- S017-160806 - BOLT-HEX
- Поз.: 3
9 S017-16080D
- S017-16080D - BOLT-HEX
- Поз.: 3
10 S017-160902
- S017-160902 - BOLT-HEX
- Поз.: 4
11 S017-16090A
- S017-16090A - BOLT-HEX
- Поз.: 4
12 S017-160906
- S017-160906 - BOLT-HEX
- Поз.: 4
13 S017-16090D
- S017-16090D - BOLT-HEX
- Поз.: 4
14 81M6-00010
- 81M6-00010 - CONNECTOR-STRAIGHT
- Поз.: 5
15 81M6-00010
- 81M6-00010 - CONNECTOR-STRAIGHT
- Поз.: 5
16 81M6-00030
- 81M6-00030 - CONNECTOR-LONG
- Поз.: 6
17 51M6-40120
- 51M6-40120 - TUBE
- Поз.: 7
18 S543-200002
- S543-200002 - CLAMP-TUBE
- Поз.: 8
19 S037-102052
- S037-102052 - BOLT-W/WASHER
- Поз.: 9
20 S651-810002
- S651-810002 - NIPPLE-GREASE
- Поз.: 10
21 S651-810002
- S651-810002 - NIPPLE-GREASE
- Поз.: 10
22 51M6-40110
- 51M6-40110 - TUBE
- Поз.: 11
23 81M6-00020
- 81M6-00020 - CONNECTOR-ELBOW
- Поз.: 12
24 41M8-70070
- 41M8-70070 - PIN ASSY-SWING LOCK
- Поз.: 13
25 51M6-45020
- 51M6-45020 - TUBE
- Поз.: 14
