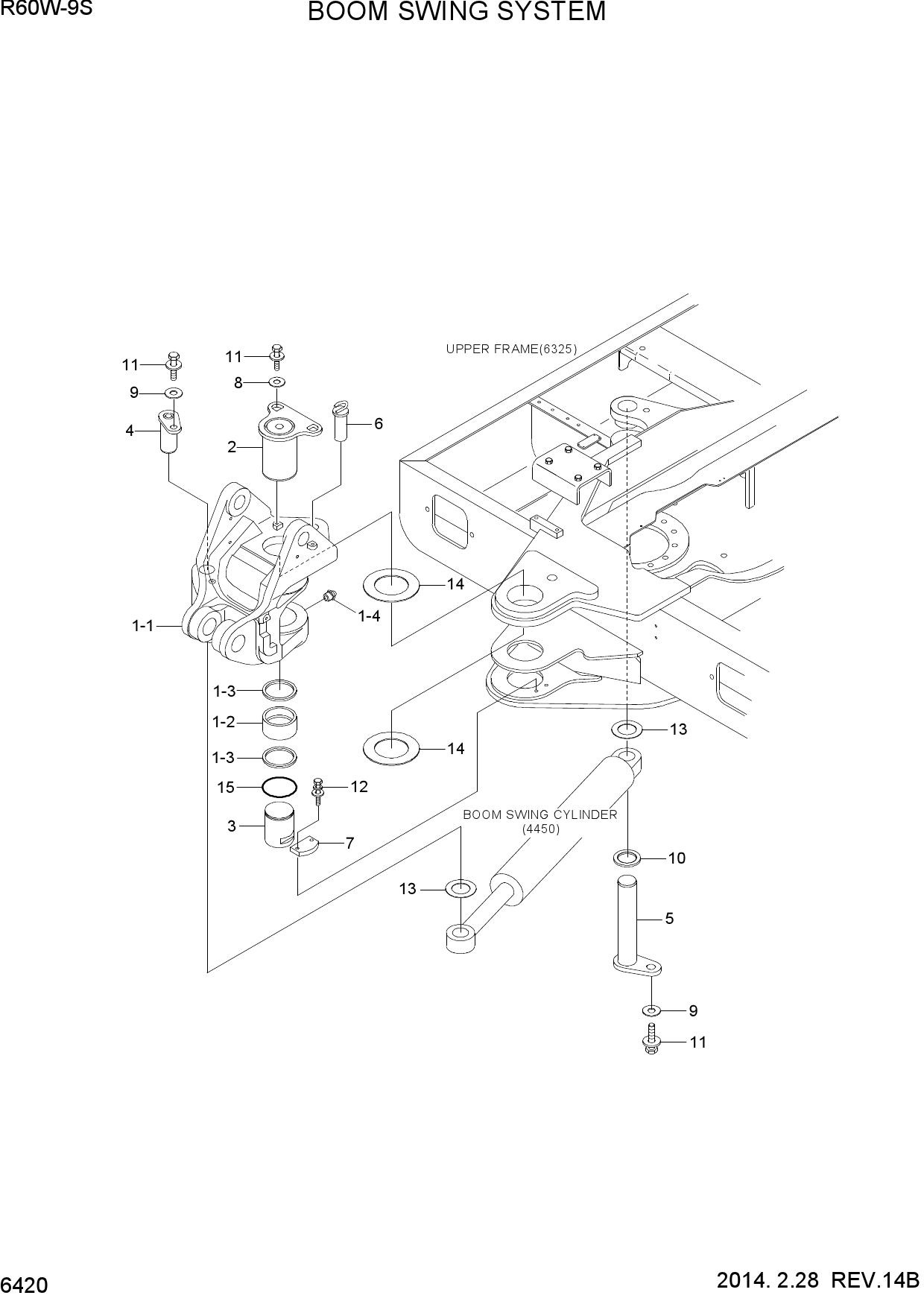

BOOM SWING SYSTEM
1 41M9-70003
- 41M9-70003 - SWING POST ASSY
- Поз.: 1
2 41M9-70012
- 41M9-70012 - SWING POST
- Поз.: 1-1
3 61M9-91100
- 61M9-91100 - BUSHING
- Поз.: 1-2
4 Y020-110011
- Y020-110011 - SEAL-DUST
- DLI
- KPU
- Поз.: 1-3
5 XKCC-00707
- XKCC-00707 - NIPPLE-GREASE
- Поз.: 1-4
6 41M8-70021GG
- 41M8-70021GG - PIN ASSY
- Поз.: 2
7 41M8-70032
- 41M8-70032 - PIN
- Поз.: 3
8 41M8-70033
- 41M8-70033 - PIN
- Поз.: 3
9 61M8-01711GG
- 61M8-01711GG - PIN ASSY
- Поз.: 4
10 61M8-01761GG
- 61M8-01761GG - PIN ASSY
- Поз.: 5
11 41M9-70061
- 41M9-70061 - PIN ASSY-S/POST LOCK
- Поз.: 6
12 41M5-70111GG
- 41M5-70111GG - LOCK PLATE
- Поз.: 7
13 61N8-00300-DA
- 61N8-00300-DA - WASHER-HARDENED
- Поз.: 8
14 61N8-00330-DA
- 61N8-00330-DA - WASHER-HARDENED
- Поз.: 9
15 61Q8-00110
- 61Q8-00110 - SPACER-PIN
- Поз.: 10
16 S017-120256
- S017-120256 - BOLT-HEX
- Поз.: 11
17 S037-123526
- S037-123526 - BOLT-W/WASHER
- Поз.: 12
18 S391-050085
- S391-050085 - SHIM-ROUND(1.0T)
- Поз.: 13
19 S391-110175
- S391-110175 - SHIM-ROUND(1.0T)
- Поз.: 14
20 S601-110006
- S601-110006 - RING-RETAINING
- C TYPE
- Поз.: 15
