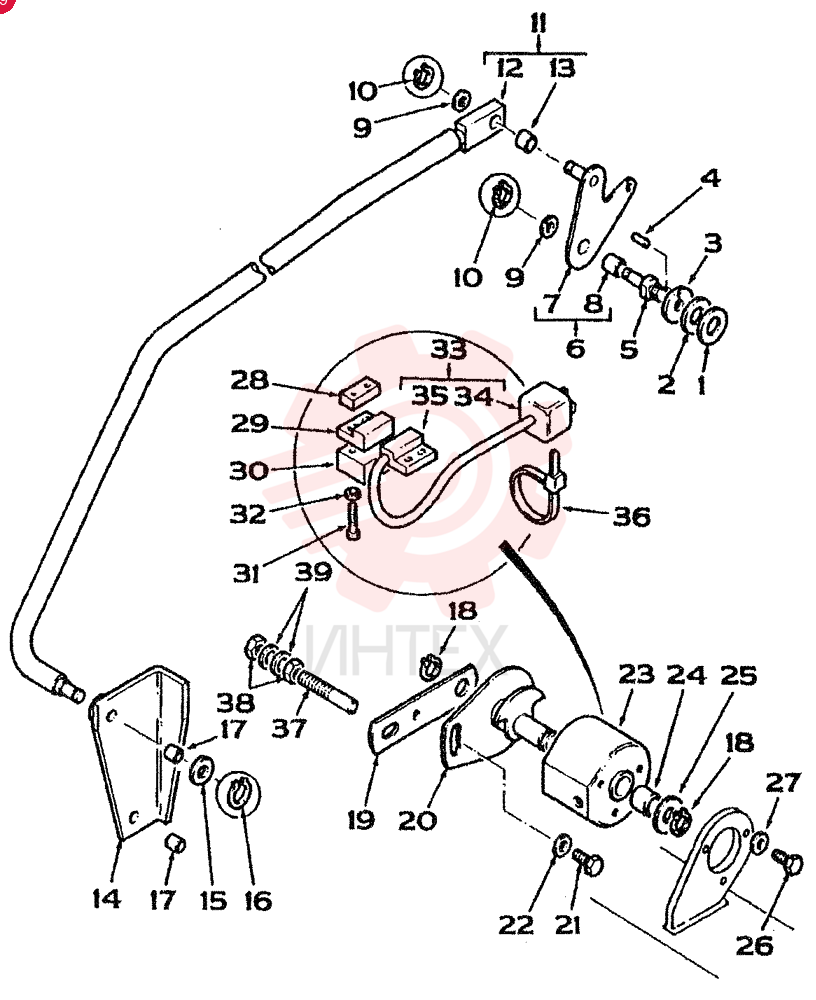

WASHER, THRUST
1 3522963M1
- 3522963M1 - WASHER
- THRUST
- THRUST WASHER
2 3522962M1
- 3522962M1 - WASHER
- THRUST
- THRUST WASHER
3 3522717 M3
- 3522717 M3 - WASHER
4 1441736X1
- 1441736X1 - LINCH PIN
- SPIRAL PIN
5 3521799M5
- 3521799M5 - SHAFT
6 3516765M91
- 3516765M91 - ARM ASSY.
- ARM (CONSIST OF REF. 7)
7 NSS
- NSS - NOT SOLD SEPARAT
- ARM
8 3516761M1
- 3516761M1 - BUSHING
- BUSH
9 339300X1
- 339300X1 - WASHER
10 3516762M1
- 3516762M1 - CIRCLIP
- CLRCLIP
11 3516764M91
- 3516764M91 - PITMAN
- LINK (CONSISTS OF REF. 12 & 13)
12 NSS
- NSS - NOT SOLD SEPARAT
- LINK
13 3516761M1
- 3516761M1 - BUSHING
- BUSH
14 3516767M92
- 3516767M92 - POWER ARM
- LINK
15 339300X1
- 339300X1 - WASHER
16 3516762M1
- 3516762M1 - CIRCLIP
17 3516761M1
- 3516761M1 - BUSHING
- BUSH
18 3516762M1
- 3516762M1 - CIRCLIP
19 3516192M91
- 3516192M91 - ARM
20 3521967M95
- 3521967M95 - ARM
21 339123X1
- 339123X1 - SCREW
- BOLT (M8 X 20MM)
22 390972X1
- 390972X1 - WASHER
23 3521963M94
- 3521963M94 - HOUSING
24 3516761M1
- 3516761M1 - BUSHING
- BUSH
25 339300X1
- 339300X1 - WASHER
26 339123X1
- 339123X1 - SCREW
- BOLT (M8 X 20MM)
27 339371X1
- 339371X1 - WASHER
28 3522874M1
- 3522874M1 - LARGE PLATE
- PLATE
29 3522649M1
- 3522649M1 - SOLENOID SWITCH
- MAGNET
30 3522093M1
- 3522093M1 - SPACER
31 3522673M2
- 3522673M2 - SCREW
32 390752X1
- 390752X1 - WASHER
33 3517798M91
- 3517798M91 - HARNESS
- (CONSISTS OF REF. 34 & 35)
34 NSS
- NSS - NOT SOLD SEPARAT
- HARNESS
35 3522650M2
- 3522650M2 - SENSOR
36 1862425M1
- 1862425M1 - MOUNTING CLIP
- STRAP
37 3522075M2
- 3522075M2 - CROSS SHAFT
- PIVOT
38 3009693X1
- 3009693X1 - NUT
- (M10)
39 339376X1
- 339376X1 - WASHER
- LOCK
- WASHER
