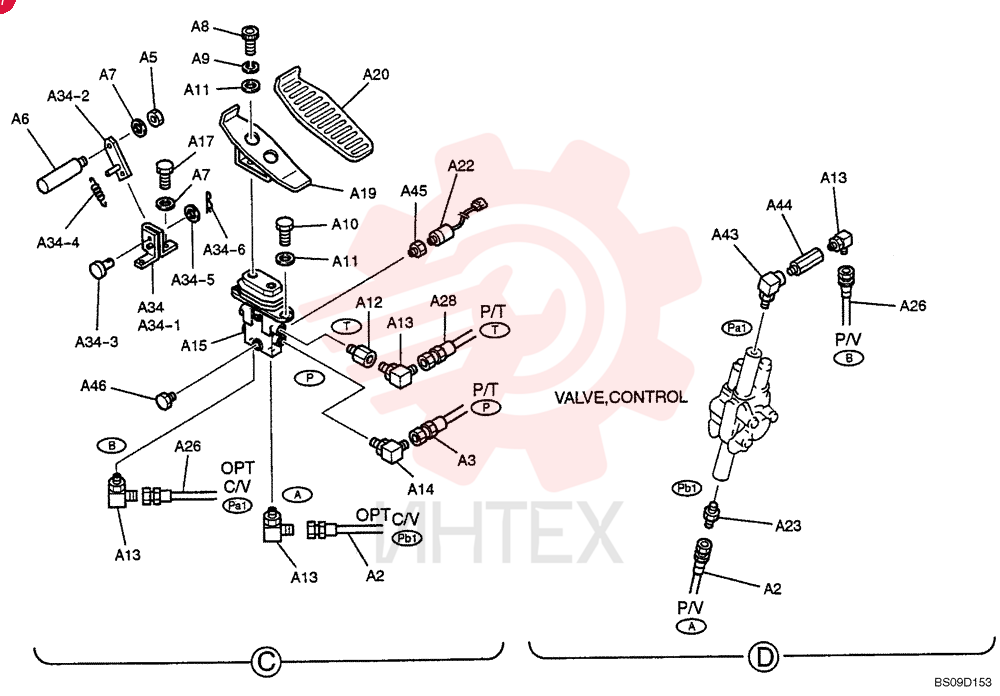

(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04)
/
HOSE ASSY. 2420R349D200 (1)

HOSE ASSY. 2420R349D200 (1)

HOSE ASSY. 2420R349D200 (1)

1 2420R349D200

  • 2420R349D200 - HOSE ASSY.
  • 2000mm Long (78-3/4 in)

2 2420R349D040

  • 2420R349D040 - HOSE
  • 6.35mm ID x 400mm L
  • 1/4" PF
  • 400mm Long (15-3/4 in)

3 2444R1120D050

  • 2444R1120D050 - HOSE
  • 500mm Long (19-11/16 in)

4 ZN18C08007

  • ZN18C08007 - NUT
  • M08x1.25mm

5 PY03M01026P1

  • PY03M01026P1 - PIN
  • M08x1.25x115mm Long

6 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk
  • ID 08 x OD 17 x Th 1.6mm

7 ZS28C10020

  • ZS28C10020 - SCREW
  • Hex Socket Head
  • M10 x 20mm
  • M10x1.50x20mm

8 ZW26X10000

  • ZW26X10000 - LOCK WASHER
  • ID 10 x OD 18 x Th 2.5mm

9 ZS18C10025

  • ZS18C10025 - SCREW
  • Hex
  • M10 x 25mm
  • M10x1.50x25mm

10 ZW16X10000

  • ZW16X10000 - WASHER
  • ID 10 x OD 21 x Th 2.0mm

11 2444Z2525

  • 2444Z2525 - HYD CONNECTOR
  • 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100)

12 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 90° -- (PF 1/4)(Incls. O-Ring 237-6004)

13 HH35X04004G3

  • HH35X04004G3 - 90 ELBOW
  • 90° -- 1/4"PF (Incls. O-Ring ZD12P01100)

14 YN30V00080F1

  • YN30V00080F1 - VALVE
  • Assembly
  • Pilot
  • See Full Model Parts Catalog

15 2444Z3833

  • 2444Z3833 - ELBOW

16 ZS18C08020

  • ZS18C08020 - SCREW
  • Hex
  • M8 x 20mm
  • M08x1.25x20mm

17 YT30M01002F1

  • YT30M01002F1 - LOCK
  • Assembly
  • Right Hand

18 PY30M01004P1

  • PY30M01004P1 - SUPPORT

19 YT30M01004P1

  • YT30M01004P1 - LOCK
  • Lever

20 HP45X10022G1

  • HP45X10022G1 - PIN

21 HP26T09002G1

  • HP26T09002G1 - SPRING

22 ZW16X10000

  • ZW16X10000 - WASHER
  • ID 10 x OD 21 x Th 2.0mm

23 2419R9D3

  • 2419R9D3 - PIN
  • Hair -- OD 10mm x 32.6mm Long

24 YN03M01265P1

  • YN03M01265P1 - PEDAL

25 YN03M01266P2

  • YN03M01266P2 - RUBBER SLEEVE

26 YT30V00004F1

  • YT30V00004F1 - PILOT VALVE
  • Assembly
  • Pilot
  • See Full Model Parts Catalog

27 GB50S00049F2

  • GB50S00049F2 - SWITCH
  • Pressure (Low Pressure)

28 ZH22X04000

  • ZH22X04000 - HYD CONNECTOR
  • 1/4" NPT x 1/4" NPT
  • 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)

29 2420R349D215

  • 2420R349D215 - HOSE
  • 2150mm Long (84-41/94 in)

30 2420R349D230

  • 2420R349D230 - HOSE ASSY.
  • 2300mm Long (90-1/2 in)

31 2444R1120D042

  • 2444R1120D042 - FLEXIBLE HOSE
  • 420mm Long (16-1/2 in)

32 ZH42X04000

  • ZH42X04000 - 45 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 45° -- (Incls. O-Ring 237-6004)

33 HH25R04004G5

  • HH25R04004G5 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01100)

34 YN68H01039P2

  • YN68H01039P2 - PEDAL

35 YR03M01134P1

  • YR03M01134P1 - COVER

36 YT30M01005F1

  • YT30M01005F1 - LOCK
  • Assembly
  • Left Hand

37 PY30M01003P1

  • PY30M01003P1 - SUPPORT

38 YT30M01004P1

  • YT30M01004P1 - LOCK
  • Lever

39 HP45X10022G1

  • HP45X10022G1 - PIN

40 HP26T09002G1

  • HP26T09002G1 - SPRING

41 ZW16X10000

  • ZW16X10000 - WASHER
  • ID 10 x OD 21 x Th 2.0mm

42 2419R9D3

  • 2419R9D3 - PIN
  • Hair -- OD 10mm x 32.6mm Long

43 2418T18004

  • 2418T18004 - PLATE

44 2416Z566

  • 2416Z566 - RUBBER BAND

45 YN68H01038P1

  • YN68H01038P1 - BRACKET

46 2419T3757D6

  • 2419T3757D6 - PIN

47 2419R9D4

  • 2419R9D4 - COTTER PIN
  • Snap -- OD 12mm x 35.8mm Long

48 ZW16X12000

  • ZW16X12000 - WASHER
  • ID 12 x OD 24 x Th 2.3mm

49 ZS18C08045

  • ZS18C08045 - SCREW
  • Hex
  • M8 x 45mm
  • M08x1.25x45mm

50 ZW16H08000

  • ZW16H08000 - WASHER
  • ID 08 x OD 18 x Th 3.2mm

51 2444Z2894

  • 2444Z2894 - 90 ELBOW
  • Elbow
  • 90° -- 1/4" PF (Incls. O-Ring ZD12P01100)

52 2444T2524

  • 2444T2524 - HYD CONNECTOR
  • 1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)

53 2444Z3322D2

  • 2444Z3322D2 - CONNECTION
  • 1/4"PF x 1/8"PT x 27mm Long (Incls. O-Ring ZD12P01100)

54 ZE72X04000

  • ZE72X04000 - PLUG
  • (PF 1/4) (Incls. O-Ring ZD12P01100)

55 2416N6141

  • 2416N6141 - BLOCK

56 ZH22X06000

  • ZH22X06000 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01400)

57 ZH32X06000

  • ZH32X06000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • Elbow
  • 90° -- (Incls. O-Ring 237-6006)

58 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring
  • Elbow
  • 90° -- (PF 1/4)(Incls. O-Ring 237-6004)

59 ZS18C08040

  • ZS18C08040 - SCREW
  • Hex
  • M8 x 40mm
  • M08x1.25x40mm

60 ZW16H08000

  • ZW16H08000 - WASHER
  • ID 08 x OD 18 x Th 3.2mm

61 HH55Q06006G1

  • HH55Q06006G1 - TEE
  • 3/8" PF (Incls. O-Ring ZD12P01400)

62 ZH22X04000

  • ZH22X04000 - HYD CONNECTOR
  • 1/4" NPT x 1/4" NPT
  • 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)

63 ZH42X06000

  • ZH42X06000 - 45 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring
  • 45° -- (Incls. O-Ring 237-6006)

64 ZH32X04006

  • ZH32X04006 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 3/8"
  • O-Ring
  • 90° -- (Incls. O-Ring 237-6006)

65 2444Z2525

  • 2444Z2525 - HYD CONNECTOR
  • 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100)

66 2444Z3155

  • 2444Z3155 - 90 ELBOW
  • PF 3/8" Fem x PF 3/8" Male
  • 90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006

67 HH55Q04004G1

  • HH55Q04004G1 - TEE
  • 1/4" ORB x 1/4" JIC x 1/4" JIC
  • 1/4" PF (Incls. O-Ring ZD12P01100)

68 2444Z2891

  • 2444Z2891 - HYD CONNECTOR
  • (Incls. O-Ring ZD12P01400)
