(SK115SRDZ-1E) - SHORT RADIUS EXCAVATOR DOZER ASN YY04-06001 (1/99-12/05)
/

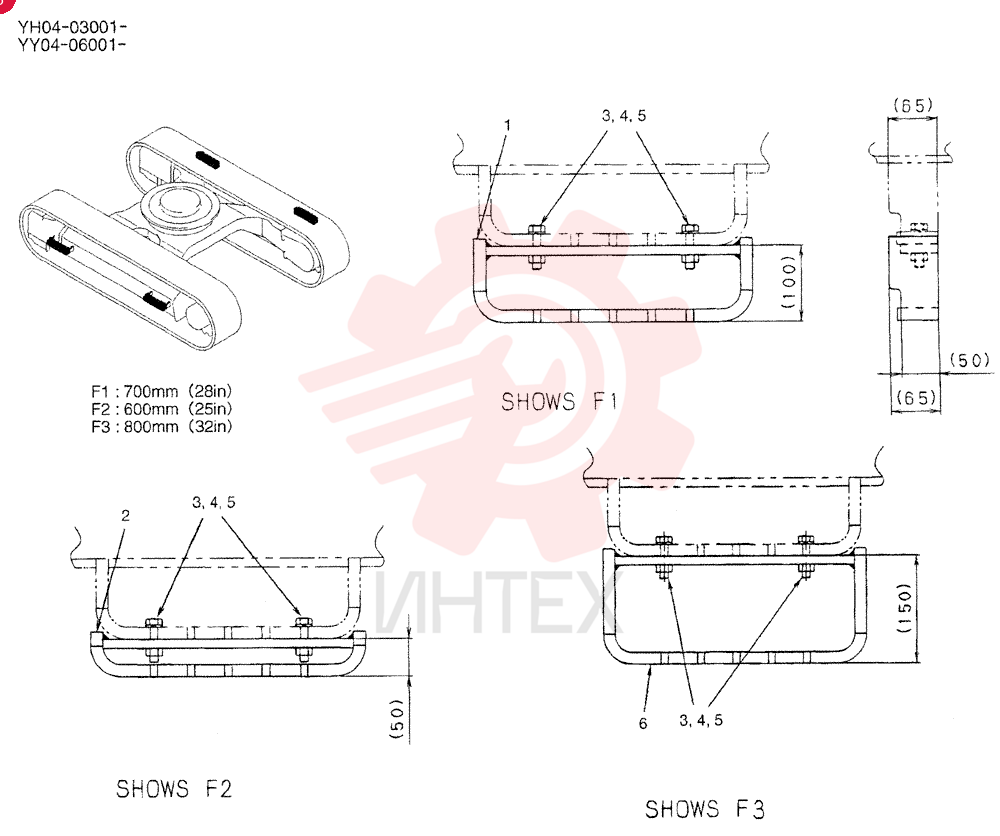

STEP YN41C00006F1 (1)

STEP YN41C00006F1 (1)

STEP YN41C00006F1 (1)

1 YN41C00006F1

  • YN41C00006F1 - STEP

2 YN41C00006F2

  • YN41C00006F2 - STEP

3 YN41C00006F3

  • YN41C00006F3 - STEP

4 YN41C00007P1

  • YN41C00007P1 - STEP
  • 366mm wide

5 YN41C00008P1

  • YN41C00008P1 - STEP
  • 366mm wide

6 ZS18C12050

  • ZS18C12050 - SCREW
  • Hex
  • M12 x 50mm

7 ZW26X12000

  • ZW26X12000 - LOCK WASHER

8 ZN18C12010

  • ZN18C12010 - NUT

9 YN41C00009P1

  • YN41C00009P1 - STEP
  • 366mm wide
