(SK115SRDZ-1E) - SHORT RADIUS EXCAVATOR DOZER ASN YY04-06001 (1/99-12/05)
/

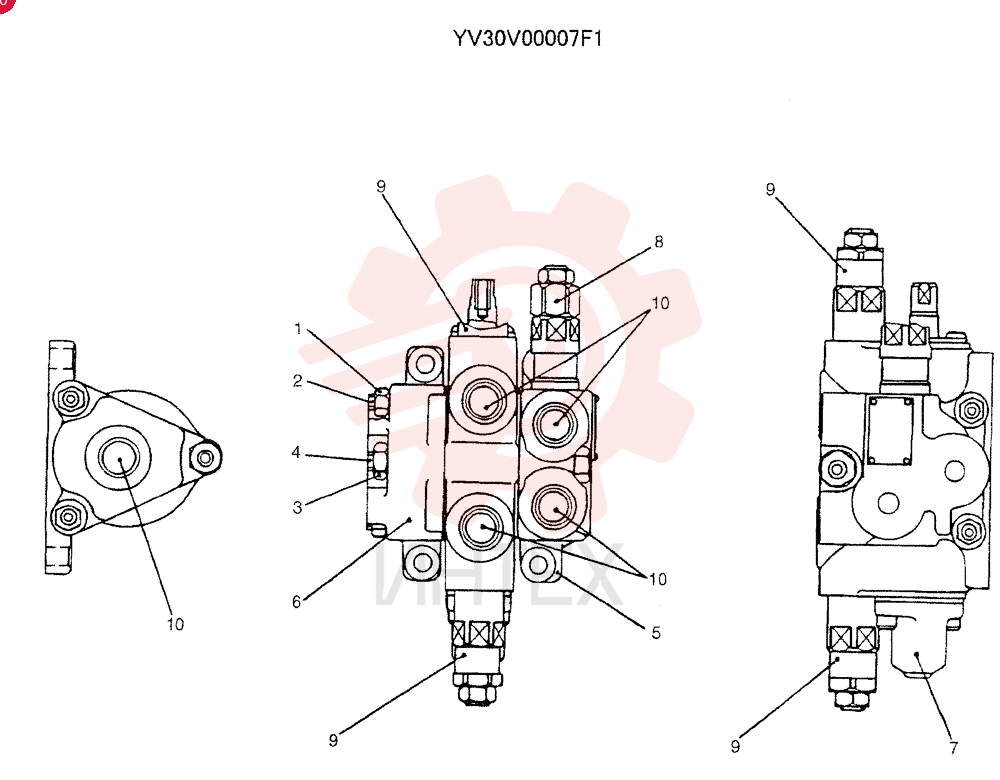

VALVE YV30V00007F1 (2)

VALVE YV30V00007F1 (2)

VALVE YV30V00007F1 (2)

1 YV30V00007F1

  • YV30V00007F1 - VALVE

2 ZN18C08007

  • ZN18C08007 - NUT

3 2436U880S6

  • 2436U880S6 - TIE-ROD

4 2436U424S9

  • 2436U424S9 - NUT

5 2436U880S8

  • 2436U880S8 - TIE-ROD

6 YR20V00001F1

  • YR20V00001F1 - VALVE

7 2436U1065S6

  • 2436U1065S6 - VALVE SECTION

8 YX30V00008F1

  • YX30V00008F1 - VALVE SECTION

9 2436R1119F5

  • 2436R1119F5 - VALVE

10 YT22V00006F4

  • YT22V00006F4 - VALVE

11 YR30V00014S010

  • YR30V00014S010 - PLUG
