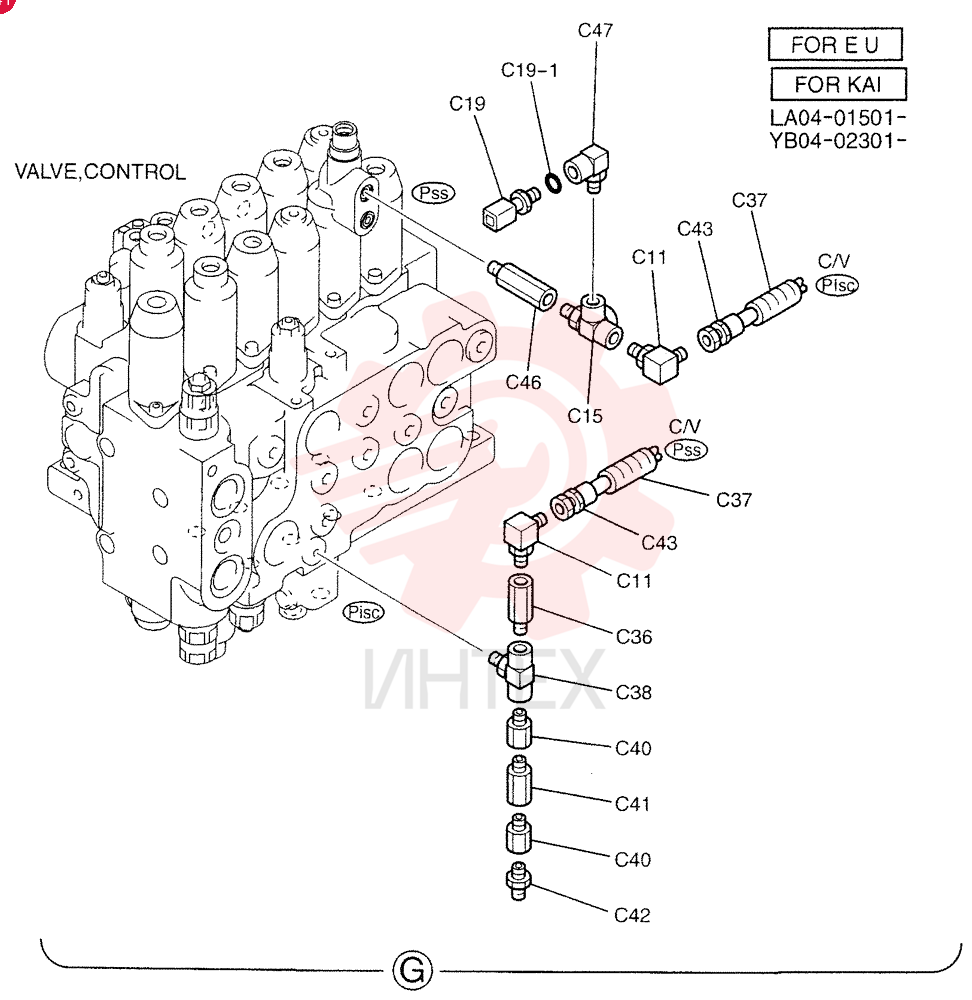

(SK200SR-1S) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/01-12/06)
/
NOT SERVICED YB68H00001F1 (1)

NOT SERVICED YB68H00001F1 (1)

NOT SERVICED YB68H00001F1 (1)

1 YB68H00001F1

  • YB68H00001F1 - NOT SERVICED

2 2420R349D145

  • 2420R349D145 - HOSE

3 2420R349D175

  • 2420R349D175 - HOSE
  • 6.35mm ID x 1750mm L

4 2444R1119D140

  • 2444R1119D140 - HOSE

5 2444R1119D175

  • 2444R1119D175 - FLEXIBLE HOSE

6 2444R1119D260

  • 2444R1119D260 - HOSE

7 YN68H01057D1

  • YN68H01057D1 - FLEXIBLE HOSE

8 YN68H01057D2

  • YN68H01057D2 - FLEXIBLE HOSE

9 YN68H01057D3

  • YN68H01057D3 - FLEXIBLE HOSE

10 YN68H01055D4

  • YN68H01055D4 - FLEXIBLE HOSE

11 YN68H01054D1

  • YN68H01054D1 - FLEXIBLE HOSE

12 YN68H01054D2

  • YN68H01054D2 - FLEXIBLE HOSE

13 YN68H01054D3

  • YN68H01054D3 - FLEXIBLE HOSE

14 YN68H01053D4

  • YN68H01053D4 - FLEXIBLE HOSE

15 YR68H01016D1

  • YR68H01016D1 - HOSE

16 YY30V00055F1

  • YY30V00055F1 - PILOT VALVE

17 ZW16X06000

  • ZW16X06000 - WASHER

18 ZH22X06000

  • ZH22X06000 - HYD CONNECTOR

19 HH25X04004G2

  • HH25X04004G2 - HYD CONNECTOR

20 PH03M01250P1

  • PH03M01250P1 - BOOT

21 PY01P01043D3

  • PY01P01043D3 - CABLE TIE
  • 188mm L

22 ZS28C06025

  • ZS28C06025 - SCREW
  • Hex Socket Head
  • M6 x 25mm

23 2420Z2185

  • 2420Z2185 - GROMMET

24 YB64H00021F2

  • YB64H00021F2 - CONTROL LINES
  • BLOCK

25 2420R537D370

  • 2420R537D370 - FLEXIBLE HOSE
  • 9.60mm ID x 3700mm L

26 2420R537D265

  • 2420R537D265 - FLEXIBLE HOSE
  • 9.60mm ID x 2650mm L

27 YB64H01009P1

  • YB64H01009P1 - U-BRACKET

28 YB64H01010P1

  • YB64H01010P1 - U-BRACKET

29 LC52S00011P1

  • LC52S00011P1 - SENSOR

30 ZD12P01100

  • ZD12P01100 - O-RING

31 JJ52F01132D4

  • JJ52F01132D4 - INSULATING PANEL

32 YN64H01079P1

  • YN64H01079P1 - GROMMET

33 YT64H01029D8

  • YT64H01029D8 - RUBBER

34 ZE72X04000

  • ZE72X04000 - PLUG

35 ZH32X06000

  • ZH32X06000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring

36 YN64H01075P1

  • YN64H01075P1 - BLOCK

37 2444Z3155

  • 2444Z3155 - 90 ELBOW
  • PF 3/8" Fem x PF 3/8" Male

38 ZS18C08020

  • ZS18C08020 - SCREW
  • Hex
  • M8 x 20mm

39 ZW16H08000

  • ZW16H08000 - WASHER

40 ZS18C08055

  • ZS18C08055 - CAPSCREW
  • Hex
  • M8 x 55mm

41 2420R537D270

  • 2420R537D270 - FLEXIBLE HOSE
  • 9.60mm ID x 2700mm L

42 2420R537D290

  • 2420R537D290 - HOSE
  • 9.53mm ID x 2900mm L

43 2420R537D350

  • 2420R537D350 - HOSE ASSY.
  • 9.60mm ID x 3500mm L

44 YW21C01100D2

  • YW21C01100D2 - INSULATING PANEL

45 YN21V00005F3

  • YN21V00005F3 - CHECK VALVE

46 YB06H00016F1

  • YB06H00016F1 - CONTROL LINES
  • MAIN

47 ZH22X04000

  • ZH22X04000 - HYD CONNECTOR
  • 1/4" NPT x 1/4" NPT

48 ZH22X04006

  • ZH22X04006 - HYD CONNECTOR

49 ZH22X06000

  • ZH22X06000 - HYD CONNECTOR

50 2444Z2525

  • 2444Z2525 - HYD CONNECTOR

51 2444T2505

  • 2444T2505 - HYD CONNECTOR

52 2444Z3711

  • 2444Z3711 - HYD CONNECTOR

53 YN21V00005F2

  • YN21V00005F2 - CHECK VALVE

54 ZX23M06076

  • ZX23M06076 - HOSE ASSY.

55 2444Z3943

  • 2444Z3943 - ELEC CONNECTOR

56 YN06H01017P1

  • YN06H01017P1 - HYD CONNECTOR

57 ZH32X04000

  • ZH32X04000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 1/4"
  • O-Ring

58 ZH32X04006

  • ZH32X04006 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 1/4" x PF 3/8"
  • O-Ring

59 ZH32X06000

  • ZH32X06000 - 90 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring

60 2444Z3155

  • 2444Z3155 - 90 ELBOW
  • PF 3/8" Fem x PF 3/8" Male

61 HH55Q04004G1

  • HH55Q04004G1 - TEE
  • 1/4" ORB x 1/4" JIC x 1/4" JIC

62 HH55Q06006G1

  • HH55Q06006G1 - TEE

63 2444Z2336

  • 2444Z2336 - TEE

64 2444Z2457

  • 2444Z2457 - TEE

65 LC52S00011P1

  • LC52S00011P1 - SENSOR

66 ZD12P01100

  • ZD12P01100 - O-RING

67 ZX23M04030

  • ZX23M04030 - FLEXIBLE HOSE

68 ZX23M04076

  • ZX23M04076 - HOSE

69 2444R1120D030

  • 2444R1120D030 - HOSE

70 2444R1120D060

  • 2444R1120D060 - HOSE

71 ZX23M04070

  • ZX23M04070 - HOSE ASSY.

72 ZX23M04066

  • ZX23M04066 - FLEXIBLE HOSE

73 2444R596D1

  • 2444R596D1 - 90 ELBOW

74 PU13E01010DN

  • PU13E01010DN - TUBE

75 ZE72X06000

  • ZE72X06000 - PLUG

76 PU13E01010DK

  • PU13E01010DK - TUBE

77 PU13E01010DJ

  • PU13E01010DJ - TUBE

78 PU13E01010DM

  • PU13E01010DM - TUBE

79 ZH42X06000

  • ZH42X06000 - 45 ELBOW
  • Male
  • 30 Degree Fl
  • PF 3/8" x PF 3/8"
  • O-Ring

80 2418Z1333D32

  • 2418Z1333D32 - PROTECTIVE SLEEVE
  • 19.5mm ID x 23.8mm OD x 650mm Length

81 2444T2524

  • 2444T2524 - HYD CONNECTOR

82 PU13E01002DC

  • PU13E01002DC - TUBE

83 2444Z4239

  • 2444Z4239 - TEE

84 HH25R04004G5

  • HH25R04004G5 - HYD CONNECTOR

85 YY21V00002F6

  • YY21V00002F6 - VALVE

86 2444Z2337

  • 2444Z2337 - HYD CONNECTOR

87 2420R349D055

  • 2420R349D055 - HOSE
  • 6.35mm ID x 550mm L

88 YB20V00001F1

  • YB20V00001F1 - VALVE

89 2444Z2296

  • 2444Z2296 - HYD CONNECTOR

90 HH25R04004G3

  • HH25R04004G3 - CONNECTION

91 2444Z2894

  • 2444Z2894 - 90 ELBOW
