(SK200SR-1S) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/01-12/06)
/

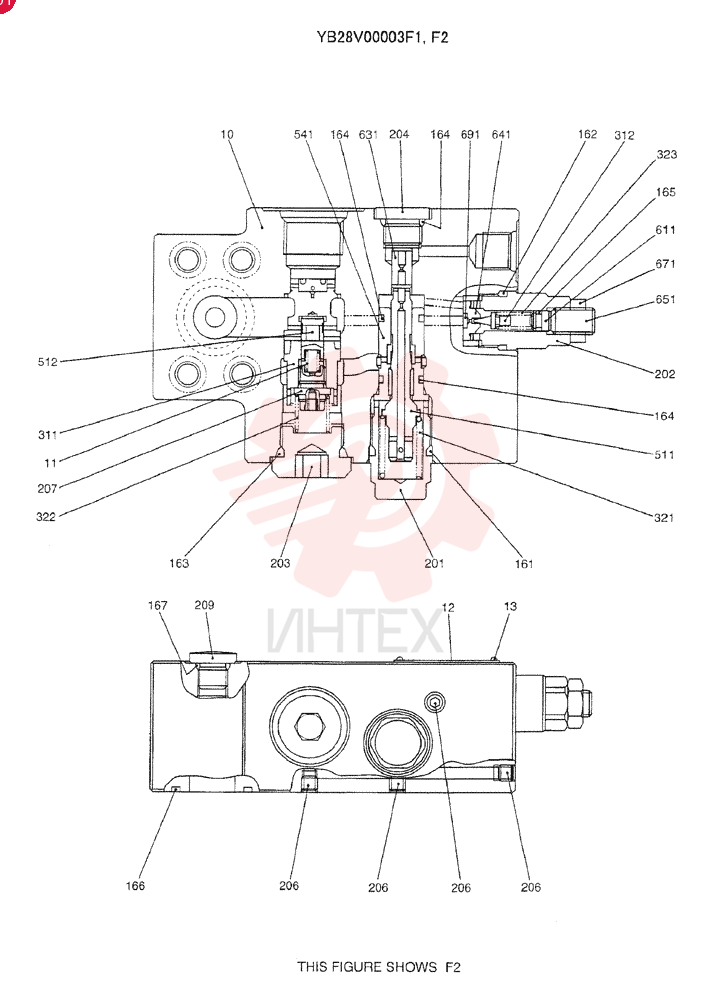

VALVE YB28V00003F1 (2)

VALVE YB28V00003F1 (2)

VALVE YB28V00003F1 (2)

1 YB28V00003F1

  • YB28V00003F1 - VALVE

2 YB28V00003F2

  • YB28V00003F2 - HYDRAULIC VALVE

3 NSS

  • NSS - NOT SOLD SEPARAT

4 NSS

  • NSS - NOT SOLD SEPARAT

5 NSS

  • NSS - NOT SOLD SEPARAT

6 NSS

  • NSS - NOT SOLD SEPARAT

7 NSS

  • NSS - NOT SOLD SEPARAT

8 ZD12P02290

  • ZD12P02290 - O-RING

9 ZD12P02200

  • ZD12P02200 - O-RING

10 ZD12P02400

  • ZD12P02400 - O-RING

11 ZD12P01600

  • ZD12P01600 - O-RING

12 ZD12P00600

  • ZD12P00600 - O-RING

13 ZD12G03000

  • ZD12G03000 - O-RING
  • 29.40mm ID x 35.60mm OD x 3.10mm

14 ZD12P01100

  • ZD12P01100 - O-RING

15 YM28V00001S201

  • YM28V00001S201 - PLUG

16 2436R683S201

  • 2436R683S201 - PLUG

17 YN30V00001S556

  • YN30V00001S556 - PLUG

18 2436U1832S651

  • 2436U1832S651 - PLUG

19 YM28V00001S205

  • YM28V00001S205 - PLUG

20 2441U722S490

  • 2441U722S490 - PLUG

21 NSS

  • NSS - NOT SOLD SEPARAT

22 YW30V00001S157

  • YW30V00001S157 - PLUG

23 NSS

  • NSS - NOT SOLD SEPARAT

24 2436R682S401

  • 2436R682S401 - POPPET

25 YM28V00001S321

  • YM28V00001S321 - SPRING

26 YM28V00001S322

  • YM28V00001S322 - SPRING

27 2436R683S1

  • 2436R683S1 - SPRING

28 NSS

  • NSS - NOT SOLD SEPARAT

29 NSS

  • NSS - NOT SOLD SEPARAT

30 NSS

  • NSS - NOT SOLD SEPARAT

31 NSS

  • NSS - NOT SOLD SEPARAT

32 2436R682S521

  • 2436R682S521 - SEAT

33 YM28V00001S631

  • YM28V00001S631 - PISTON

34 NSS

  • NSS - NOT SOLD SEPARAT

35 2436R683S651

  • 2436R683S651 - SET SCREW

36 ZN18C12007

  • ZN18C12007 - NUT

37 NSS

  • NSS - NOT SOLD SEPARAT

38 NSS

  • NSS - NOT SOLD SEPARAT

39 NSS

  • NSS - NOT SOLD SEPARAT

40 LC28V00003R100

  • LC28V00003R100 - REPAIR KIT

41 YN28V00008R100

  • YN28V00008R100 - REPAIR KIT

42 YB28V00003R100

  • YB28V00003R100 - REPAIR KIT
