(SK200SR) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/03-12/04)
/

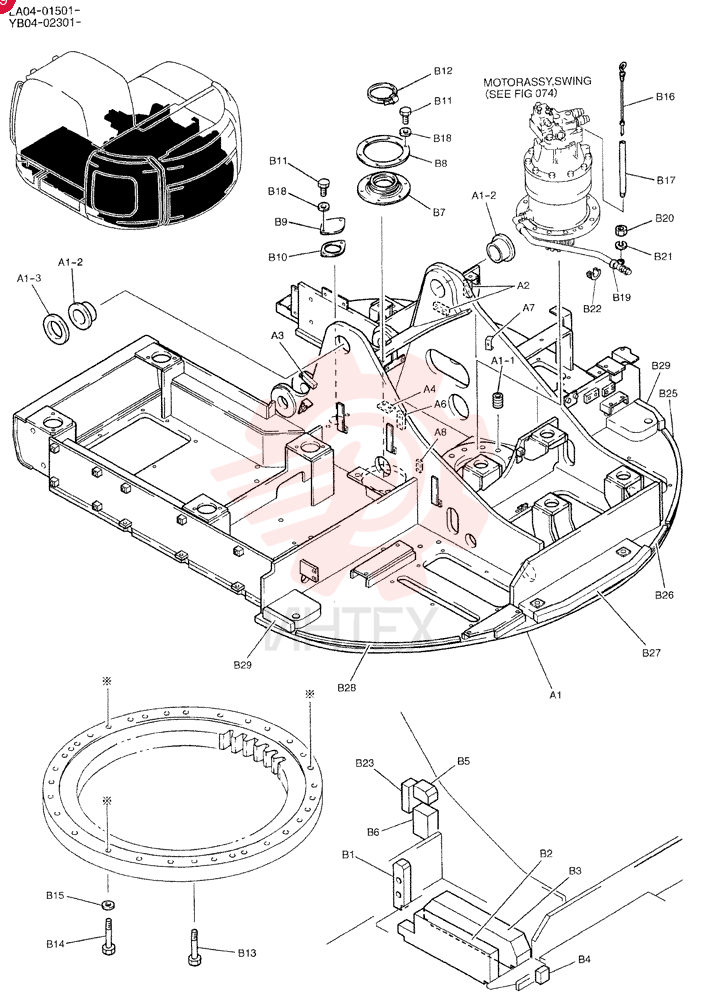

FRAME, UPPER YB52F00034P1 (2)

FRAME, UPPER YB52F00034P1 (2)

FRAME, UPPER YB52F00034P1 (2)

1 YB52F00034P1

  • YB52F00034P1 - FRAME
  • UPPER

2 ZS83C20020

  • ZS83C20020 - SCREW

3 YB52F01028P1

  • YB52F01028P1 - BUSHING

4 2414T2784

  • 2414T2784 - COVER

5 2416T19909D1

  • 2416T19909D1 - U-BRACKET

6 YN52F01074P1

  • YN52F01074P1 - PLATE

7 YB52F01049P1

  • YB52F01049P1 - U-BRACKET

8 HY45B12080G1

  • HY45B12080G1 - BLOCK

9 YN53F01138P1

  • YN53F01138P1 - SUPPORT

10 2416T20618

  • 2416T20618 - BLOCK

11 YB52F00009F2

  • YB52F00009F2 - FRAME GROUP
  • UPPER

12 YB52F01030P1

  • YB52F01030P1 - INSULATING PANEL

13 YB52F01043P1

  • YB52F01043P1 - INSULATING PANEL

14 YB52F01032P2

  • YB52F01032P2 - FOAM INSULATION

15 YB52F01033P1

  • YB52F01033P1 - INSULATING PANEL

16 YB52F01046P1

  • YB52F01046P1 - INSULATING PANEL

17 YB52F01044P1

  • YB52F01044P1 - INSULATING PANEL

18 LQ52F01081P1

  • LQ52F01081P1 - SEAL

19 YN52F01158P1

  • YN52F01158P1 - PLATE

20 YN52F01159P1

  • YN52F01159P1 - PLATE

21 2416Z434

  • 2416Z434 - PACKING

22 ZS18C10020

  • ZS18C10020 - SCREW
  • Hex
  • M10 x 20mm

23 ZC16X14800

  • ZC16X14800 - CLIP

24 YN52F01100D1

  • YN52F01100D1 - SCREW

25 2420T4564D1

  • 2420T4564D1 - BOLT

26 ZW13H20000

  • ZW13H20000 - WASHER

27 2420R561D1

  • 2420R561D1 - DIPSTICK

28 YN32W01038D1

  • YN32W01038D1 - TUBE

29 YN52F01157P1

  • YN52F01157P1 - SEAL

30 ZC46X22011

  • ZC46X22011 - CLIP

31 ZN18C10008

  • ZN18C10008 - NUT

32 ZW26X10000

  • ZW26X10000 - LOCK WASHER

33 YB52F01036P1

  • YB52F01036P1 - GROMMET

34 YB52F01045P1

  • YB52F01045P1 - INSULATING PANEL

35 YX52F01071D7

  • YX52F01071D7 - INSULATING PANEL

36 YX52F01071D8

  • YX52F01071D8 - INSULATING PANEL

37 YB52F01101P1

  • YB52F01101P1 - INSULATING PANEL

38 YX52F01071D9

  • YX52F01071D9 - INSULATION

39 YB52F01100P1

  • YB52F01100P1 - INSULATING PANEL
