(SK200SR) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/03-12/04)
/

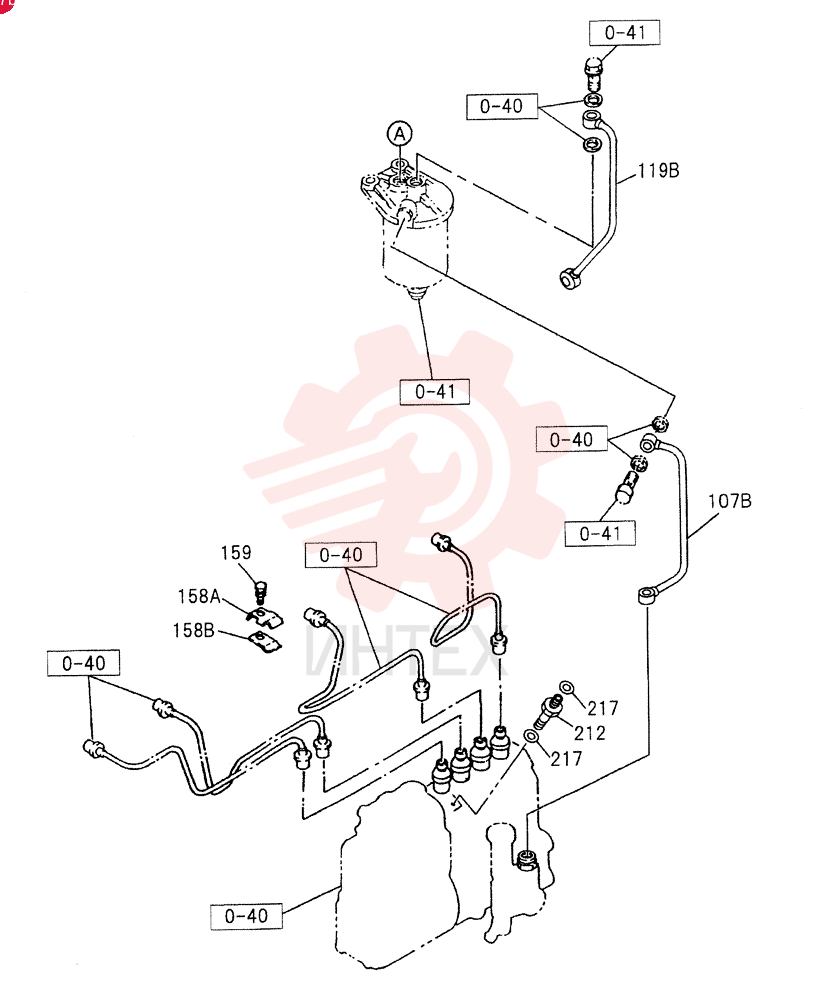

FUEL PUMP AND PIPE 0-42A (3)

FUEL PUMP AND PIPE 0-42A (3)

FUEL PUMP AND PIPE 0-42A (3)

1 0-42A

  • 0-42A - FUEL PUMP AND PIPE

2 VI8970209330

  • VI8970209330 - TUBE

3 VI8970209340

  • VI8970209340 - RIGID TUBE

4 VI5154190040

  • VI5154190040 - CLIP

5 VI5154190051

  • VI5154190051 - CLIP

6 VI0501406160

  • VI0501406160 - BOLT

7 VI0286806160

  • VI0286806160 - BOLT
  • CLIP (M6 x 16 FLANGE)
  • Start Year: 01-FEB-04

8 VI8972254470

  • VI8972254470 - VALVE

9 VI1096300850

  • VI1096300850 - GASKET
