(SK200SR) - SHORT RADIUS EXCAVATOR BTW YB04-02301 - YB04-02550 (1/03-12/04)
/

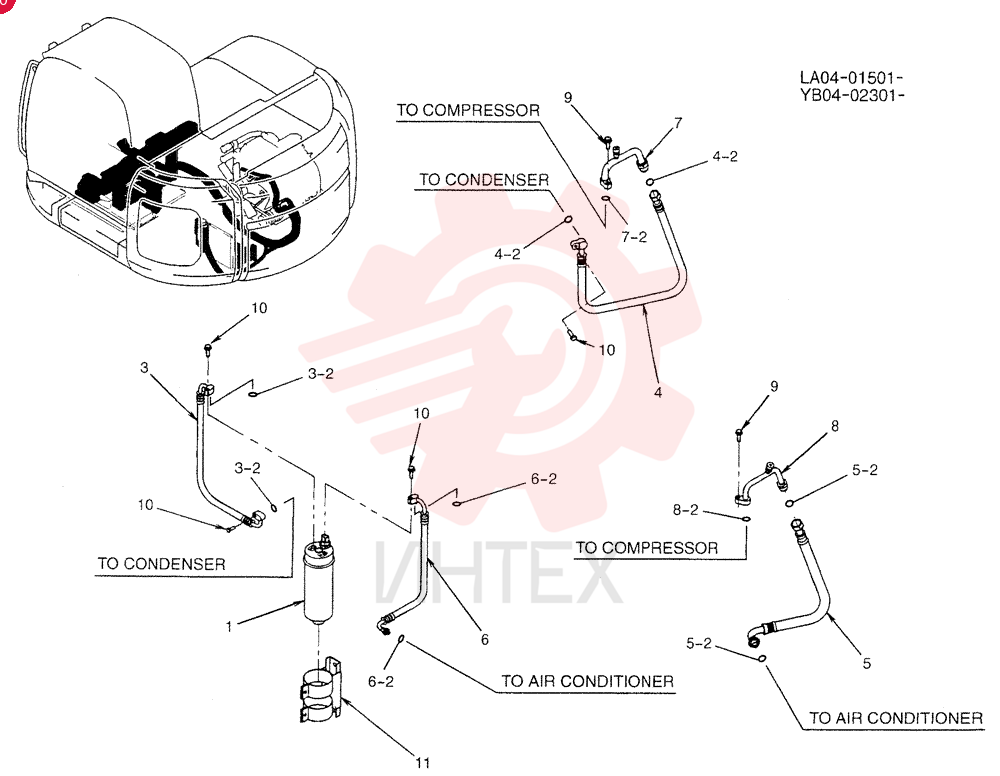

HEATER YB96V00001F2 (3)

HEATER YB96V00001F2 (3)

HEATER YB96V00001F2 (3)

1 YB96V00001F2

  • YB96V00001F2 - HEATER

2 YT54S00002P1

  • YT54S00002P1 - RECEIVER-DRYER

3 YN20M01240F1

  • YN20M01240F1 - HOSE

4 2445Z1604D6

  • 2445Z1604D6 - O-RING

5 YB20M01003F1

  • YB20M01003F1 - HOSE

6 2445Z1604D4

  • 2445Z1604D4 - O-RING

7 YB20M01004F1

  • YB20M01004F1 - HOSE

8 2445Z1604D5

  • 2445Z1604D5 - O-RING

9 YB20M01005F1

  • YB20M01005F1 - HOSE

10 2445Z1604D6

  • 2445Z1604D6 - O-RING

11 YX20M01030F1

  • YX20M01030F1 - RIGID TUBE

12 2445Z1604D4

  • 2445Z1604D4 - O-RING

13 YX20M01034F1

  • YX20M01034F1 - ELBOW

14 2445Z1604D5

  • 2445Z1604D5 - O-RING

15 YT96V00001S009

  • YT96V00001S009 - SCREW

16 YT20M00009S005

  • YT20M00009S005 - BOLT

17 YN20M01355P1

  • YN20M01355P1 - BRACKET
