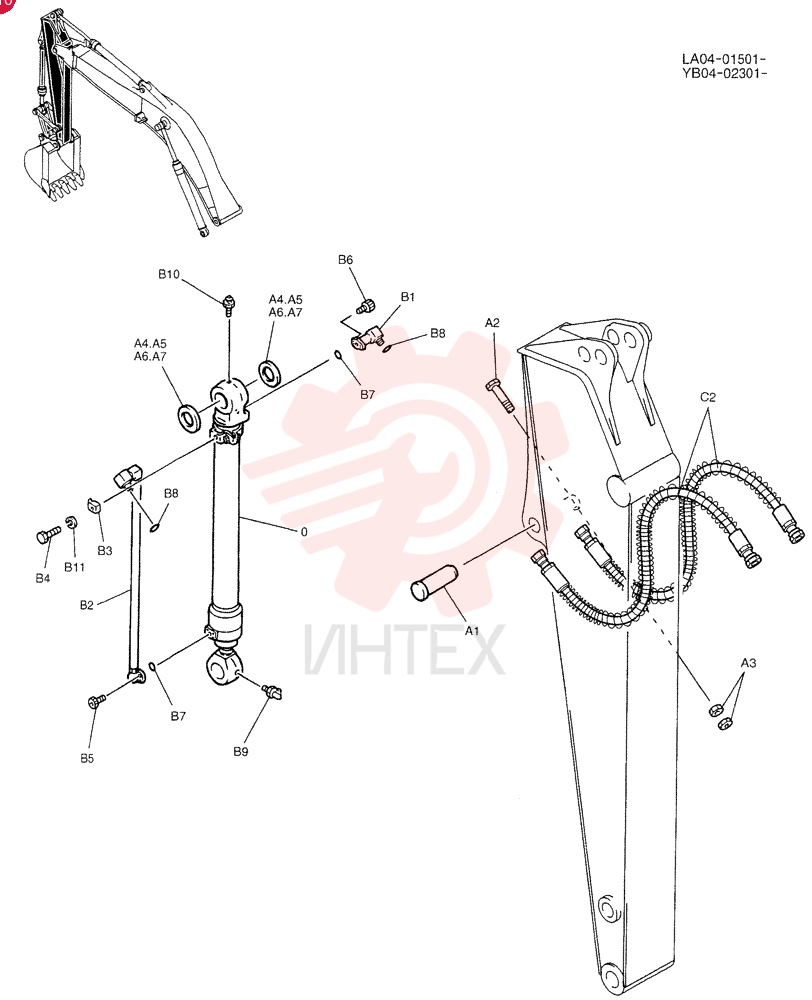

HYDRAULIC CYLINDER YB01V00011F2 (16)
1 YB01V00011F2
- YB01V00011F2 - HYDRAULIC CYLINDER
2 YN12B00121F1
- YN12B00121F1 - CYLINDER INSTAL
3 YN12B01218P1
- YN12B01218P1 - PIN
4 HS18C16140G1
- HS18C16140G1 - SCREW
5 ZN18C16013
- ZN18C16013 - NUT
6 YN12B01084P1
- YN12B01084P1 - SHIM
7 YN12B01122D1
- YN12B01122D1 - SHIM
- 82mm ID x 140mm OD x 0.5mm Thk
8 YN12B01122D2
- YN12B01122D2 - SHIM
- 82mm ID x 140mm OD x 0.9mm Thk
9 YN12B01122D3
- YN12B01122D3 - SHIM
- 82mm ID x 140mm OD x 1.6mm Thk
10 YB43H00008F1
- YB43H00008F1 - HYD LINES
- CYLINDER
11 LQ43H01029P2
- LQ43H01029P2 - TUBE
12 YB43H01013P1
- YB43H01013P1 - RIGID TUBE
13 YN43H01097P1
- YN43H01097P1 - CLAMP
14 ZS18C10055
- ZS18C10055 - SCREW
- Hex
- M10 x 55mm
15 ZS28C10030
- ZS28C10030 - SCREW
- Hex Socket Head
- M10 x 30mm
16 ZS28C10035
- ZS28C10035 - SCREW
- Hex Socket Head
- M10 x 35mm
17 ZD12P02600
- ZD12P02600 - O-RING
18 ZD12A01800
- ZD12A01800 - O-RING
- 1.78mm Thk x 18.77mm ID
- Cl 6
19 ZG91U02000
- ZG91U02000 - LUBE NIPPLE
20 ZG91S02000
- ZG91S02000 - LUBE NIPPLE
- 1/8" NPT x 1/8" NPT
21 ZW26X10000
- ZW26X10000 - LOCK WASHER
22 YB43H00001F2
- YB43H00001F2 - HYD LINES
- ARM
23 ZX50H12165
- ZX50H12165 - HOSE
