(SK200SRLC-1S) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/01)
/

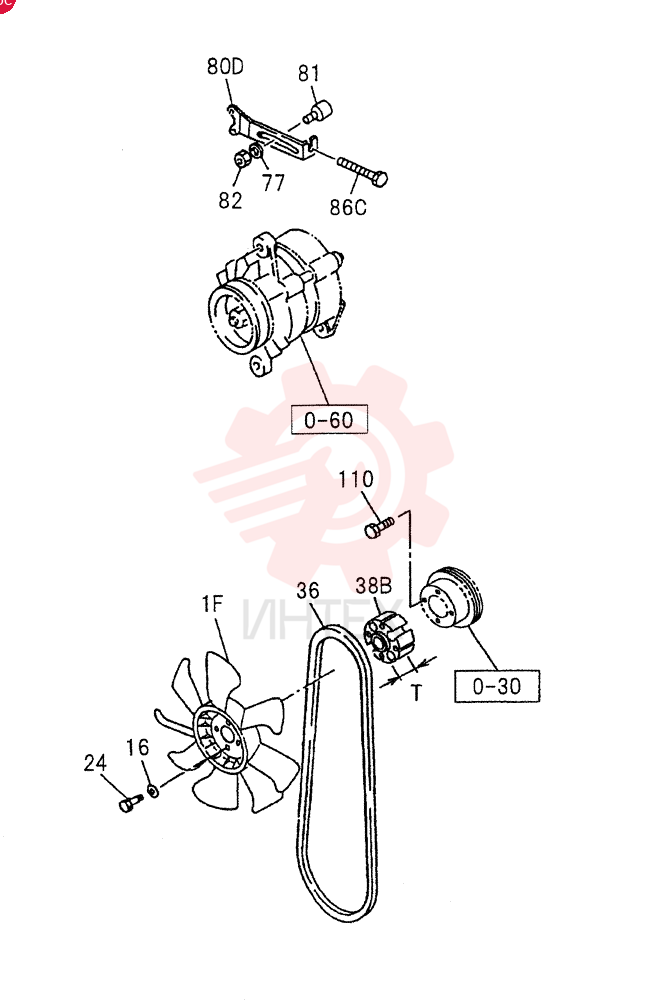

FAN AND FAN BELT 0-33A (1)

FAN AND FAN BELT 0-33A (1)

FAN AND FAN BELT 0-33A (1)

1 0-33A

  • 0-33A - FAN AND FAN BELT

2 VI8971615990

  • VI8971615990 - FAN

3 VI9091606080

  • VI9091606080 - WASHER

4 VI0500408800

  • VI0500408800 - BOLT

5 VI1136712830

  • VI1136712830 - SET OF 2 BELTS

6 VI1136420580

  • VI1136420580 - SPACER

7 VI1136420630

  • VI1136420630 - SPACER

8 VI9091647120

  • VI9091647120 - WASHER

9 VI1136741192

  • VI1136741192 - ADJUSTING PLATE

10 VI1136741600

  • VI1136741600 - SLIDE

11 VI0911501120

  • VI0911501120 - NUT

12 VI1090091131

  • VI1090091131 - BOLT

13 VI9034906100

  • VI9034906100 - SCREW
