(SK200SRLC-1S) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/01)
/

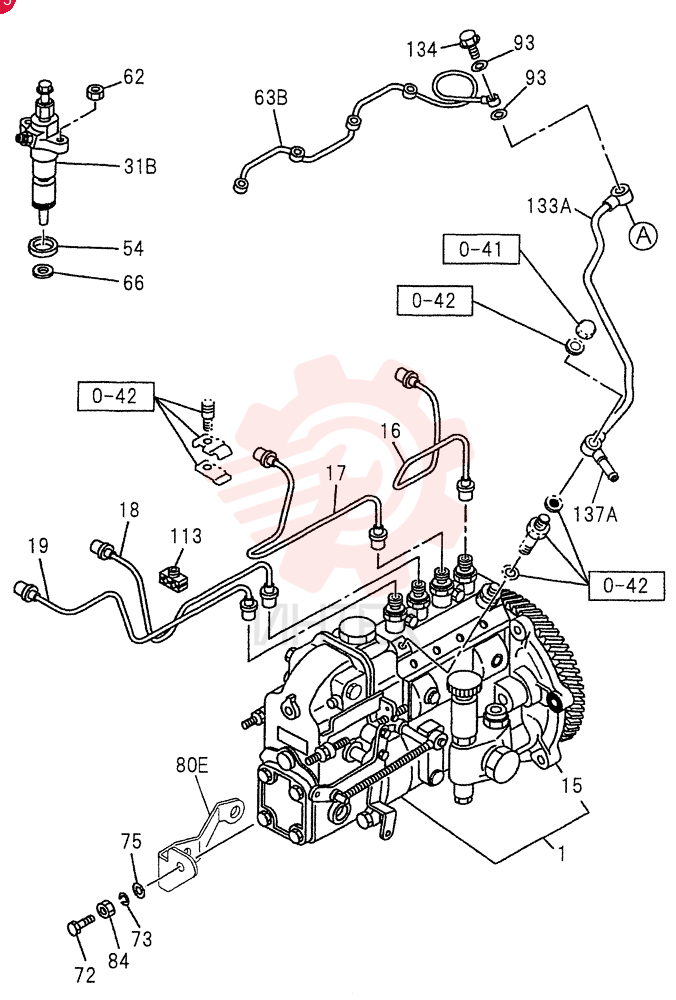

FUEL INJECTION SYSTEM 0-40A (2)

FUEL INJECTION SYSTEM 0-40A (2)

FUEL INJECTION SYSTEM 0-40A (2)

1 0-40A

  • 0-40A - FUEL INJECTION SYSTEM

2 VI8972410323

  • VI8972410323 - PUMP

3 VI8972519010

  • VI8972519010 - COUPLING ASM
  • INJ PUMP

4 VI8972520600

  • VI8972520600 - INJECTION PIPE

5 VI8972520610

  • VI8972520610 - INJECTION PIPE

6 VI8972520620

  • VI8972520620 - INJECTION PIPE

7 VI8972520630

  • VI8972520630 - INJECTION PIPE

8 VI1153004210

  • VI1153004210 - FUEL SYSTEM INJECTOR

9 VI8971348410

  • VI8971348410 - HOLDER ASM
  • NOZZLE

10 VI1153113160

  • VI1153113160 - NOZZLE

11 VI1096750371

  • VI1096750371 - BOLT

12 VI1153320170

  • VI1153320170 - NUT

13 VI1096300820

  • VI1096300820 - GASKET

14 VI5153320060

  • VI5153320060 - CAP

15 VI5153390600

  • VI5153390600 - GASKET

16 VI8941695030

  • VI8941695030 - SCREW

17 VI8943203080

  • VI8943203080 - CONNECTOR
  • 2-POLE

18 VI5513390030

  • VI5513390030 - GASKET

19 VI5153430050

  • VI5153430050 - SPRING

20 VI8941695020

  • VI8941695020 - PUSH ROD

21 VI9153390510

  • VI9153390510 - CUP COVER

22 VI0911501080

  • VI0911501080 - NUT

23 VI8970209371

  • VI8970209371 - PIPE

24 VI9095720140

  • VI9095720140 - PACKING

25 VI5153150030

  • VI5153150030 - PACKING

26 VI0280810200

  • VI0280810200 - BOLT

27 VI0280810220

  • VI0280810220 - BOLT
  • BRKT TO INJ PUMP (M10X22 FLANGE)
  • Start Year: 01-APR-02

28 VI9091505100

  • VI9091505100 - WASHER

29 VI9091605100

  • VI9091605100 - WASHER

30 VI9091607100

  • VI9091607100 - WASHER
  • PL
  • BRKT TO INJ PUMP
  • Start Year: 01-AUG-01

31 VI8972410390

  • VI8972410390 - BRACKET

32 VI9091105100

  • VI9091105100 - NUT

33 VI0911502100

  • VI0911502100 - NUT

34 VI9095714080

  • VI9095714080 - PACKING

35 VI5154190131

  • VI5154190131 - CLIP

36 VI8970209350

  • VI8970209350 - INJECTION PIPE

37 VI8973107810

  • VI8973107810 - PIPE
  • INJ NOZZLE LEAK OFF
  • Start Year: 01-MAY-00

38 VI1096750371

  • VI1096750371 - BOLT

39 VI5154112231

  • VI5154112231 - PIPE

40 VI5154112231

  • VI5154112231 - PIPE
