(SK200SRLC-1S) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/01)
/

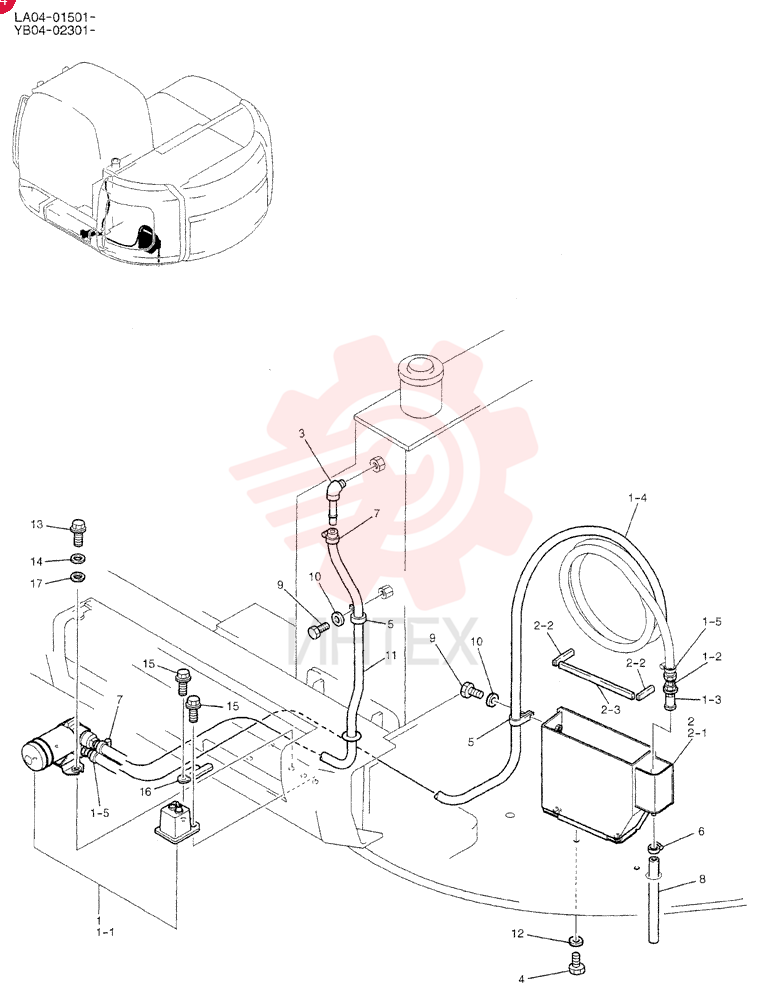

FUEL PUMP YB22P00002F1 (4)

FUEL PUMP YB22P00002F1 (4)

FUEL PUMP YB22P00002F1 (4)

1 YB22P00002F1

  • YB22P00002F1 - FUEL PUMP

2 YF22P00003F1

  • YF22P00003F1 - FUEL PUMP

3 YF22P00002F1

  • YF22P00002F1 - FUEL PUMP

4 2444Z1233D7

  • 2444Z1233D7 - ELEC CONNECTOR

5 2446Z143

  • 2446Z143 - STRAINER ASSY.

6 YF22P01004D1

  • YF22P01004D1 - HOSE

7 ZC15X02600

  • ZC15X02600 - CLAMP

8 YB22P01004F1

  • YB22P01004F1 - BOXED PANEL

9 YB22P01003P1

  • YB22P01003P1 - BOXED PANEL

10 YJ21C01146D7

  • YJ21C01146D7 - STRIP

11 YA21C01019D6

  • YA21C01019D6 - INSULATING PANEL

12 YT22P01004P1

  • YT22P01004P1 - ELBOW

13 ZS18C12045

  • ZS18C12045 - SCREW
  • Hex
  • M12 x 45mm

14 ZC46X25011

  • ZC46X25011 - CLIP

15 ZC16X01800

  • ZC16X01800 - CLIP

16 ZC16X02800

  • ZC16X02800 - CLIP

17 2444R2492D021

  • 2444R2492D021 - FLEXIBLE HOSE

18 ZS18C10020

  • ZS18C10020 - SCREW
  • Hex
  • M10 x 20mm

19 ZW16X10000

  • ZW16X10000 - WASHER

20 YF22P01004D2

  • YF22P01004D2 - FLEXIBLE HOSE

21 ZW16X12000

  • ZW16X12000 - WASHER

22 ZS18C08030

  • ZS18C08030 - SCREW
  • Hex
  • M8 x 30mm

23 ZW26X08000

  • ZW26X08000 - LOCK WASHER

24 ZM61C06016

  • ZM61C06016 - BOLT

25 2432R233D1

  • 2432R233D1 - CLIP

26 YR21C01161P1

  • YR21C01161P1 - WASHER
  • 9mm ID x 22mm OD x 2.3mm Thk
