(SK200SRLC-1S) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/01)
/

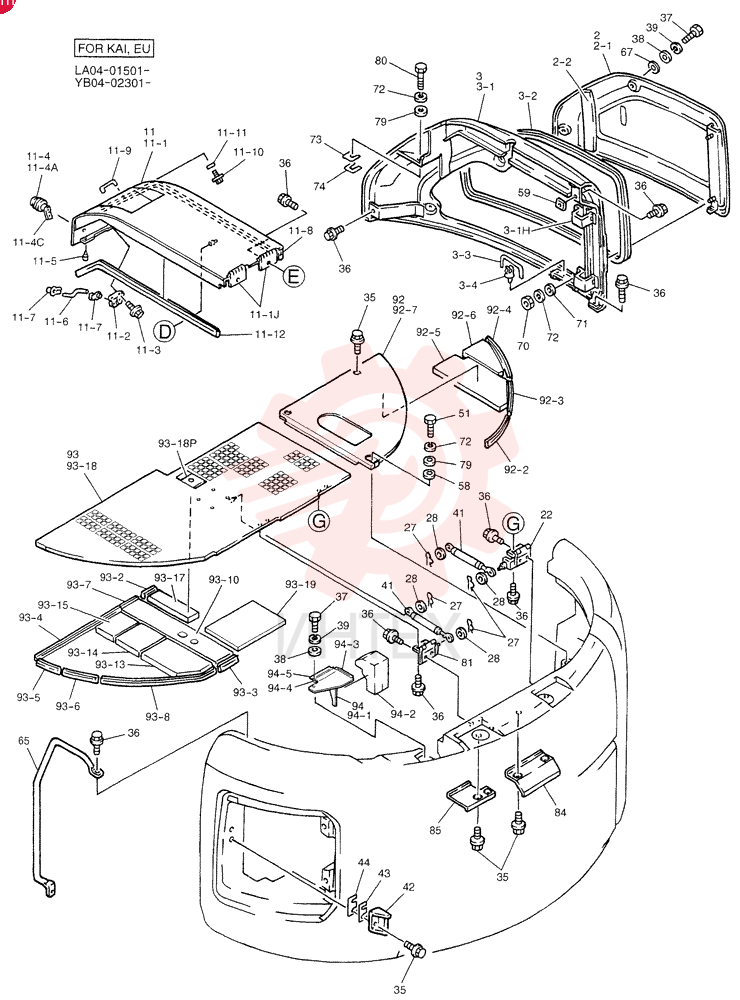

GUARD INSTAL YB21C00005F2 (2)

GUARD INSTAL YB21C00005F2 (2)

GUARD INSTAL YB21C00005F2 (2)

1 YB21C00005F2

  • YB21C00005F2 - GUARD INSTAL

2 YB21C01038F1

  • YB21C01038F1 - BODY

3 YB21C01061P1

  • YB21C01061P1 - BOXED PANEL

4 YB21C01010P1

  • YB21C01010P1 - COVER

5 YX21C01056P1

  • YX21C01056P1 - HINGE

6 YN21C01258P1

  • YN21C01258P1 - LOCK

7 YN21C01552P1

  • YN21C01552P1 - STAY

8 HY25X10027G1

  • HY25X10027G1 - WASHER
  • 10mm ID x 27mm OD x 3.2mm Thk

9 2419R9D2

  • 2419R9D2 - COTTER PIN

10 ZM32C12025

  • ZM32C12025 - BOLT

11 YN21C01710D4

  • YN21C01710D4 - RUBBER WEATHERSTRIP

12 YN21C01704P1

  • YN21C01704P1 - INSULATING PANEL

13 PY06C01040P1

  • PY06C01040P1 - STOP

14 ZN18F10008

  • ZN18F10008 - NUT

15 YN21C01706F1

  • YN21C01706F1 - PANEL

16 YN21C01616P2

  • YN21C01616P2 - PANEL

17 YN21C01705P1

  • YN21C01705P1 - FOAM INSULATION

18 YN21C01691F1

  • YN21C01691F1 - PANEL

19 YN21C01613P4

  • YN21C01613P4 - COWLING

20 YN21C01707P1

  • YN21C01707P1 - HINGE

21 PH21C01021D8

  • PH21C01021D8 - RUBBER WEATHERSTRIP

22 YX21C01204P1

  • YX21C01204P1 - STAY

23 YR21C01123P1

  • YR21C01123P1 - COLLAR

24 YN21C01749P2

  • YN21C01749P2 - COVER

25 YN21C01686F4

  • YN21C01686F4 - COVER

26 YF21C01051P1

  • YF21C01051P1 - FOAM INSULATION

27 YN21C01815P1

  • YN21C01815P1 - COVER

28 YN21C01692D4

  • YN21C01692D4 - SOFT TRIM

29 YB21C01074P1

  • YB21C01074P1 - FOAM INSULATION

30 YB21C01039F1

  • YB21C01039F1 - COVER

31 YB21C01068P1

  • YB21C01068P1 - GUARD

32 YT21C01057P1

  • YT21C01057P1 - HINGE

33 YT21C01034P2

  • YT21C01034P2 - CATCH

34 ZM61C06016

  • ZM61C06016 - BOLT

35 YN21C01438F2

  • YN21C01438F2 - LOCK

36 YR22C01025P2

  • YR22C01025P2 - LOCK

37 YN21C01702P1

  • YN21C01702P1 - PLATE

38 YT21C01143P1

  • YT21C01143P1 - RUBBER SLEEVE

39 YN21C01572P1

  • YN21C01572P1 - ROD

40 YT21C01053P1

  • YT21C01053P1 - CLIP

41 YW21C01057D4

  • YW21C01057D4 - WEATHERSEAL STRIP

42 YN21C01181P1

  • YN21C01181P1 - HANDLE

43 ZM12C08020

  • ZM12C08020 - BOLT

44 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

45 PY01P01019D9

  • PY01P01019D9 - WEATHERSEAL STRIP

46 YB21C01040F1

  • YB21C01040F1 - COVER

47 YB21C01063P1

  • YB21C01063P1 - GUARD

48 YJ21C01146D3

  • YJ21C01146D3 - INSULATING PANEL

49 YJ21C01079D2

  • YJ21C01079D2 - WEATHERSTRIP

50 YB21C01042F1

  • YB21C01042F1 - GUARD

51 YB21C01022P1

  • YB21C01022P1 - COVER

52 YW21C01057D9

  • YW21C01057D9 - WEATHERSTRIP

53 YT21C01163DE

  • YT21C01163DE - INSULATING PANEL

54 YN21C01136D4

  • YN21C01136D4 - WEATHERSTRIP

55 YN21C01687P1

  • YN21C01687P1 - GRIP

56 YB21C01072P1

  • YB21C01072P1 - FOAM INSULATION

57 YB21C01043F1

  • YB21C01043F1 - COVER

58 YB21C01004P1

  • YB21C01004P1 - GUARD

59 YB21C01033P1

  • YB21C01033P1 - INSULATING PANEL

60 YB21C01087P1

  • YB21C01087P1 - GUARD

61 YB21C01044F2

  • YB21C01044F2 - U-BRACKET

62 YB21C01034D1

  • YB21C01034D1 - INSULATING PANEL

63 YN21C01530P1

  • YN21C01530P1 - INSULATING PANEL

64 YB21C01035D1

  • YB21C01035D1 - LABEL

65 YB21C01080P1

  • YB21C01080P1 - INSULATING PANEL

66 YB21C01081P1

  • YB21C01081P1 - INSULATING PANEL

67 YT21C01163D1

  • YT21C01163D1 - INSULATING PANEL

68 LE21C01070DK

  • LE21C01070DK - WEATHERSEAL STRIP

69 PY01P01019D1

  • PY01P01019D1 - INSULATING PANEL

70 YB21C01092P2

  • YB21C01092P2 - U-BRACKET

71 YB21C01139F1

  • YB21C01139F1 - GUARD

72 YB21C01142P1

  • YB21C01142P1 - GUARD

73 YJ21C01079D2

  • YJ21C01079D2 - WEATHERSTRIP

74 YN21C01460D2

  • YN21C01460D2 - INSULATING PANEL

75 YN21C01722P1

  • YN21C01722P1 - GUARD

76 ZM12C08020

  • ZM12C08020 - BOLT

77 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

78 LE21C01070DQ

  • LE21C01070DQ - WEATHERSEAL STRIP

79 YB21C01036D2

  • YB21C01036D2 - RUBBER

80 YB21C01062P1

  • YB21C01062P1 - U-BRACKET

81 YB21C01079F1

  • YB21C01079F1 - GUARD

82 YB21C01077P1

  • YB21C01077P1 - GUARD

83 YB21C01078P1

  • YB21C01078P1 - INSULATING PANEL

84 YN21C01751F1

  • YN21C01751F1 - BRACKET

85 YN21C01743P1

  • YN21C01743P1 - BRACKET

86 PY06C01040P1

  • PY06C01040P1 - STOP

87 ZN18F10008

  • ZN18F10008 - NUT

88 YN21C01440P1

  • YN21C01440P1 - HINGE

89 YN21C01434P2

  • YN21C01434P2 - STAY

90 YB21C01021P1

  • YB21C01021P1 - SUPPORT

91 YB21C01047F1

  • YB21C01047F1 - GUARD

92 YB21C01023P1

  • YB21C01023P1 - GUARD

93 2427P1836D14

  • 2427P1836D14 - WEATHERSTRIP

94 PH03M01281P1

  • PH03M01281P1 - GROMMET

95 YW21C01302P1

  • YW21C01302P1 - GAS STRUT

96 2419R9D2

  • 2419R9D2 - COTTER PIN

97 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

98 HY25X10027G1

  • HY25X10027G1 - WASHER
  • 10mm ID x 27mm OD x 3.2mm Thk

99 YN21C01321P1

  • YN21C01321P1 - STOP

100 YN21C01748P1

  • YN21C01748P1 - STRIKER PLATE

101 ZM32C12025

  • ZM32C12025 - BOLT

102 ZM32C12030

  • ZM32C12030 - BOLT

103 HS18C10025G1

  • HS18C10025G1 - SCREW

104 HY25X11024G1

  • HY25X11024G1 - WASHER

105 YT21C01172P1

  • YT21C01172P1 - LOCK WASHER

106 YW21C01180P1

  • YW21C01180P1 - GAS STRUT

107 YN21C01467P2

  • YN21C01467P2 - STRIKER PLATE

108 YN21C01174D1

  • YN21C01174D1 - SPACER

109 YN21C01174D2

  • YN21C01174D2 - SPACER

110 YB21C01050F1

  • YB21C01050F1 - U-BRACKET

111 YB21C01007P2

  • YB21C01007P2 - U-BRACKET

112 YB21C01071D1

  • YB21C01071D1 - INSULATING PANEL

113 ZN18F10008

  • ZN18F10008 - NUT

114 YB21C01051F2

  • YB21C01051F2 - GUARD

115 YN21C01528D6

  • YN21C01528D6 - INSULATING PANEL

116 YJ21C01080D5

  • YJ21C01080D5 - INSULATING PANEL

117 YJ21C01080D6

  • YJ21C01080D6 - INSULATING PANEL

118 LE21C01070D2

  • LE21C01070D2 - RUBBER WEATHERSTRIP

119 YB21C01084P1

  • YB21C01084P1 - GUARD

120 2416Z440D7

  • 2416Z440D7 - INSULATING PANEL

121 YR21C01251D1

  • YR21C01251D1 - INSULATING PANEL

122 YB21C01088P2

  • YB21C01088P2 - STAY

123 ZS18C12035

  • ZS18C12035 - SCREW
  • Hex
  • M12 x 35mm

124 YB21C01064P1

  • YB21C01064P1 - COVER

125 YB21C01025P1

  • YB21C01025P1 - GUARD

126 YB21C01024P1

  • YB21C01024P1 - GUARD

127 YB21C01030P1

  • YB21C01030P1 - STRIKER PLATE

128 YN21C01752P1

  • YN21C01752P1 - BOLT

129 YT21C01179D1

  • YT21C01179D1 - SHIM

130 YX21C01165D2

  • YX21C01165D2 - SPACER

131 HY35X13025G1

  • HY35X13025G1 - WASHER

132 ZS18C12045

  • ZS18C12045 - SCREW
  • Hex
  • M12 x 45mm

133 ZS18C12070

  • ZS18C12070 - SCREW
  • Hex
  • M12 x 70mm

134 YN21C01694P1

  • YN21C01694P1 - STRIKER PLATE

135 ZS18C12025

  • ZS18C12025 - SCREW
  • Hex
  • M12 x 25mm

136 YN21C01685P1

  • YN21C01685P1 - STAY

137 YT21C01187P2

  • YT21C01187P2 - WASHER

138 YB21C01006P1

  • YB21C01006P1 - GUARD

139 ZM12C08020

  • ZM12C08020 - BOLT

140 ZN18C12010

  • ZN18C12010 - NUT

141 2418T10357

  • 2418T10357 - WASHER

142 ZW26X12000

  • ZW26X12000 - LOCK WASHER

143 YN21C01175D1

  • YN21C01175D1 - SHIM

144 YN21C01175D2

  • YN21C01175D2 - SHIM

145 YN21C01713P1

  • YN21C01713P1 - U-BRACKET

146 ZS18C12065

  • ZS18C12065 - SCREW
  • Hex
  • M12 x 65mm

147 2418T17912D1

  • 2418T17912D1 - WASHER

148 ZS18C12030

  • ZS18C12030 - SCREW
  • Hex
  • M12 x 30mm

149 YB21C01020P1

  • YB21C01020P1 - HINGE

150 YB21C01067P1

  • YB21C01067P1 - U-BRACKET

151 YB21C01052F1

  • YB21C01052F1 - COVER

152 YB21C01055P1

  • YB21C01055P1 - COVER

153 YB21C01073D1

  • YB21C01073D1 - GASKET

154 YB21C01152P1

  • YB21C01152P1 - GUARD

155 YB21C01153P1

  • YB21C01153P1 - GUARD

156 YB21C01057P1

  • YB21C01057P1 - U-BRACKET

157 YB21C01082P1

  • YB21C01082P1 - PLATE

158 YB21C01140F1

  • YB21C01140F1 - GUARD

159 YB21C01141P1

  • YB21C01141P1 - COVER

160 YN21C01712D9

  • YN21C01712D9 - INSULATING PANEL

161 PH03M01264D4

  • PH03M01264D4 - INSULATING PANEL

162 PH03M01264D6

  • PH03M01264D6 - INSULATING PANEL

163 PH03M01264D7

  • PH03M01264D7 - INSULATING PANEL

164 PH03M01264D2

  • PH03M01264D2 - INSULATING PANEL

165 YN21C01535F4

  • YN21C01535F4 - GUARD

166 YN21C01754P2

  • YN21C01754P2 - COVER

167 YN21C01725P2

  • YN21C01725P2 - HINGE

168 YN21C01438F2

  • YN21C01438F2 - LOCK

169 YR22C01025P1

  • YR22C01025P1 - LOCK

170 YN21C01702P1

  • YN21C01702P1 - PLATE

171 YT21C01034P2

  • YT21C01034P2 - CATCH

172 YN21C01756P1

  • YN21C01756P1 - ROD

173 YT21C01053P1

  • YT21C01053P1 - CLIP

174 ZM11C06014

  • ZM11C06014 - SCREW

175 ZW16X06000

  • ZW16X06000 - WASHER

176 YN21C01687P1

  • YN21C01687P1 - GRIP

177 YN21C01567P1

  • YN21C01567P1 - STRIKER PLATE

178 ZM32C12025

  • ZM32C12025 - BOLT

179 PY06C01040P1

  • PY06C01040P1 - STOP

180 ZN18F10008

  • ZN18F10008 - NUT

181 YN21C01734P2

  • YN21C01734P2 - STAY

182 HY25X10027G1

  • HY25X10027G1 - WASHER
  • 10mm ID x 27mm OD x 3.2mm Thk

183 2419R9D2

  • 2419R9D2 - COTTER PIN

184 YR21C01123P1

  • YR21C01123P1 - COLLAR

185 YN21C01757D1

  • YN21C01757D1 - SHIM
  • 1.2mm Thk

186 YN21C01757D2

  • YN21C01757D2 - SHIM
  • 2mm Thk

187 YN21C01757D3

  • YN21C01757D3 - SHIM
  • 3.2mm Thk

188 2420Z1341

  • 2420Z1341 - GROMMET

189 YX14E01004P1

  • YX14E01004P1 - GROMMET

190 YT21C01179D1

  • YT21C01179D1 - SHIM

191 YF21C01001P1

  • YF21C01001P1 - GUARD

192 PM22C01020DH

  • PM22C01020DH - INSULATING PANEL

193 YB22C00002F2

  • YB22C00002F2 - GUARD

194 YT21C01163DC

  • YT21C01163DC - WEATHERSTRIP

195 YJ21C01079DD

  • YJ21C01079DD - RUBBER WEATHERSTRIP

196 YT21C01163D3

  • YT21C01163D3 - WEATHERSTRIP

197 YB22C01005P1

  • YB22C01005P1 - FOAM INSULATION

198 YB22C01006P1

  • YB22C01006P1 - FOAM INSULATION

199 YB22C01039P1

  • YB22C01039P1 - GUARD

200 YB22C00001F3

  • YB22C00001F3 - GUARD

201 YA21C01036D4

  • YA21C01036D4 - WEATHERSEAL STRIP

202 LE21C01070D2

  • LE21C01070D2 - RUBBER WEATHERSTRIP

203 YT21C01163DB

  • YT21C01163DB - INSULATING PANEL

204 YW21C01057D7

  • YW21C01057D7 - RUBBER WEATHERSTRIP

205 LE21C01070DG

  • LE21C01070DG - RUBBER WEATHERSTRIP

206 2427P1836D10

  • 2427P1836D10 - WEATHERSTRIP

207 YT21C01163DA

  • YT21C01163DA - WEATHERSEAL STRIP

208 YB22C01003P1

  • YB22C01003P1 - FOAM INSULATION

209 YB22C01003P1

  • YB22C01003P1 - FOAM INSULATION

210 YB22C01003P2

  • YB22C01003P2 - INSULATION

211 YB22C01003P2

  • YB22C01003P2 - INSULATION

212 YB22C01009P1

  • YB22C01009P1 - FOAM INSULATION

213 YB22C01010P1

  • YB22C01010P1 - FOAM INSULATION

214 YB22C01011P1

  • YB22C01011P1 - FOAM INSULATION

215 YB22C01013P1

  • YB22C01013P1 - FOAM INSULATION

216 YB22C01038P1

  • YB22C01038P1 - GUARD

217 YN21C02224P1

  • YN21C02224P1 - LOCK

218 YB22C01041P1

  • YB22C01041P1 - INSULATING PANEL

219 YB21C01156F1

  • YB21C01156F1 - GUARD

220 YB21C01154P1

  • YB21C01154P1 - GUARD

221 YB21C01032P1

  • YB21C01032P1 - INSULATING PANEL

222 YJ21C01103D4

  • YJ21C01103D4 - INSULATING PANEL

223 YT21C01159D6

  • YT21C01159D6 - WEATHERSTRIP

224 YT21C01297DA

  • YT21C01297DA - INSULATING PANEL

(SK200SRLC-1S) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/01) — другие схемы

FRAME, UPPER YB52F00034P1 (2) FRAME, UPPER YB52F00034P1 (2)
FUEL INJECTION SYSTEM 0-40A (1) FUEL INJECTION SYSTEM 0-40A (1)
FUEL INJECTION SYSTEM 0-40A (2) FUEL INJECTION SYSTEM 0-40A (2)
FUEL INJECTION SYSTEM 0-40A (3) FUEL INJECTION SYSTEM 0-40A (3)
FUEL INJECTION SYSTEM 0-40A (4) FUEL INJECTION SYSTEM 0-40A (4)
FUEL FILTER AND BRACKET 0-41A (1) FUEL FILTER AND BRACKET 0-41A (1)
FUEL FILTER AND BRACKET 0-41A (2) FUEL FILTER AND BRACKET 0-41A (2)
FUEL FILTER AND BRACKET 0-41A (3) FUEL FILTER AND BRACKET 0-41A (3)
FUEL FILTER AND BRACKET 0-41A (4) FUEL FILTER AND BRACKET 0-41A (4)
FUEL FILTER AND BRACKET 0-41A (5) FUEL FILTER AND BRACKET 0-41A (5)
FUEL FILTER AND BRACKET 0-41A (6) FUEL FILTER AND BRACKET 0-41A (6)
FUEL FILTER AND BRACKET 0-41A (7) FUEL FILTER AND BRACKET 0-41A (7)
FUEL FILTER AND BRACKET 0-41A (8) FUEL FILTER AND BRACKET 0-41A (8)
FUEL INJECTION SYSTEM 0-40A (1) FUEL INJECTION SYSTEM 0-40A (1)
FUEL INJECTION SYSTEM 0-40A (2) FUEL INJECTION SYSTEM 0-40A (2)
FUEL INJECTION SYSTEM 0-40A (3) FUEL INJECTION SYSTEM 0-40A (3)
FUEL INJECTION SYSTEM 0-40A (4) FUEL INJECTION SYSTEM 0-40A (4)
FUEL LINES YB21P00003F1 (1) FUEL LINES YB21P00003F1 (1)
FUEL LINES YB21P00003F1 (2) FUEL LINES YB21P00003F1 (2)
FUEL LINES YB21P00003F1 (3) FUEL LINES YB21P00003F1 (3)
FUEL LINES YB21P00003F1 (4) FUEL LINES YB21P00003F1 (4)
FUEL LINES YB21P00003F2 (1) FUEL LINES YB21P00003F2 (1)
FUEL LINES YB21P00003F2 (2) FUEL LINES YB21P00003F2 (2)
FUEL LINES YB21P00003F2 (3) FUEL LINES YB21P00003F2 (3)
FUEL LINES YB21P00003F2 (4) FUEL LINES YB21P00003F2 (4)
FUEL PUMP AND PIPE 0-42A (1) FUEL PUMP AND PIPE 0-42A (1)
FUEL PUMP AND PIPE 0-42A (2) FUEL PUMP AND PIPE 0-42A (2)
FUEL PUMP AND PIPE 0-42A (3) FUEL PUMP AND PIPE 0-42A (3)
FUEL PUMP AND PIPE 0-42A (4) FUEL PUMP AND PIPE 0-42A (4)
FUEL PUMP YB22P00002F1 (1) FUEL PUMP YB22P00002F1 (1)
FUEL PUMP YB22P00002F1 (2) FUEL PUMP YB22P00002F1 (2)
FUEL PUMP YB22P00002F1 (3) FUEL PUMP YB22P00002F1 (3)
FUEL PUMP YB22P00002F1 (4) FUEL PUMP YB22P00002F1 (4)
FUEL PUMP YF22P00002F1 (1) FUEL PUMP YF22P00002F1 (1)
FUEL PUMP YF22P00002F1 (2) FUEL PUMP YF22P00002F1 (2)
FUEL PUMP YF22P00002F1 (3) FUEL PUMP YF22P00002F1 (3)
FUEL PUMP YF22P00002F1 (4) FUEL PUMP YF22P00002F1 (4)
GAUGE YV59S00004F2 (1) GAUGE YV59S00004F2 (1)
GAUGE YV59S00004F2 (2) GAUGE YV59S00004F2 (2)
GAUGE YV59S00004F2 (3) GAUGE YV59S00004F2 (3)
GAUGE YV59S00004F2 (4) GAUGE YV59S00004F2 (4)
GAUGE YY59S00003F1 (1) GAUGE YY59S00003F1 (1)
GAUGE YY59S00003F1 (2) GAUGE YY59S00003F1 (2)
GAUGE YY59S00003F1 (3) GAUGE YY59S00003F1 (3)
GAUGE YY59S00003F1 (4) GAUGE YY59S00003F1 (4)
GEAR REDUCTION UNIT YB32W00001F1 (1) GEAR REDUCTION UNIT YB32W00001F1 (1)
GEAR REDUCTION UNIT YB32W00001F1 (2) GEAR REDUCTION UNIT YB32W00001F1 (2)
GENERATOR 0-66 (1) GENERATOR 0-66 (1)
GENERATOR 0-66 (2) GENERATOR 0-66 (2)
GENERATOR 0-66 (3) GENERATOR 0-66 (3)
GENERATOR 0-66 (4) GENERATOR 0-66 (4)
GENERATOR 0-66 (5) GENERATOR 0-66 (5)
GENERATOR 0-66 (6) GENERATOR 0-66 (6)
GENERATOR 0-66 (7) GENERATOR 0-66 (7)
GENERATOR 0-66 (8) GENERATOR 0-66 (8)
GOVERNOR; INJECTION PUMP 0-81B (1) GOVERNOR; INJECTION PUMP 0-81B (1)
GOVERNOR; INJECTION PUMP 0-81B (2) GOVERNOR; INJECTION PUMP 0-81B (2)
GOVERNOR; INJECTION PUMP 0-81B (3) GOVERNOR; INJECTION PUMP 0-81B (3)
GOVERNOR; INJECTION PUMP 0-81B (4) GOVERNOR; INJECTION PUMP 0-81B (4)
GUARD INSTAL YB21C00005F2 (1) GUARD INSTAL YB21C00005F2 (1)
GUARD INSTAL YB21C00005F2 (2) GUARD INSTAL YB21C00005F2 (2)
GUARD INSTAL YB21C00005F2 (3) GUARD INSTAL YB21C00005F2 (3)
GUARD INSTAL YB21C00005F2 (4) GUARD INSTAL YB21C00005F2 (4)
GUARD INSTAL YB21C00005F2 (5) GUARD INSTAL YB21C00005F2 (5)
GUARD INSTAL YB21C00005F2 (6) GUARD INSTAL YB21C00005F2 (6)
GUARD INSTAL YB21C00001F6 (1) GUARD INSTAL YB21C00001F6 (1)
GUARD INSTAL YB21C00001F6 (10) GUARD INSTAL YB21C00001F6 (10)
GUARD INSTAL YB21C00001F6 (11) GUARD INSTAL YB21C00001F6 (11)
GUARD INSTAL YB21C00001F6 (12) GUARD INSTAL YB21C00001F6 (12)
GUARD INSTAL YB21C00001F6 (2) GUARD INSTAL YB21C00001F6 (2)
GUARD INSTAL YB21C00001F6 (3) GUARD INSTAL YB21C00001F6 (3)
GUARD INSTAL YB21C00001F6 (4) GUARD INSTAL YB21C00001F6 (4)
GUARD INSTAL YB21C00001F6 (5) GUARD INSTAL YB21C00001F6 (5)
GUARD INSTAL YB21C00001F6 (6) GUARD INSTAL YB21C00001F6 (6)
GUARD INSTAL YB21C00001F6 (7) GUARD INSTAL YB21C00001F6 (7)
GUARD INSTAL YB21C00001F6 (8) GUARD INSTAL YB21C00001F6 (8)
GUARD INSTAL YB21C00001F6 (9) GUARD INSTAL YB21C00001F6 (9)
GUARD INSTAL YB21C00005F2 (1) GUARD INSTAL YB21C00005F2 (1)
GUARD INSTAL YB21C00005F2 (2) GUARD INSTAL YB21C00005F2 (2)
GUARD INSTAL YB21C00005F2 (3) GUARD INSTAL YB21C00005F2 (3)
GUARD INSTAL YB21C00005F2 (4) GUARD INSTAL YB21C00005F2 (4)
GUARD INSTAL YB21C00005F2 (5) GUARD INSTAL YB21C00005F2 (5)
GUARD INSTAL YB21C00005F2 (6) GUARD INSTAL YB21C00005F2 (6)
GUARD INSTAL YF21C00001FE (1) GUARD INSTAL YF21C00001FE (1)
GUARD INSTAL YF21C00001FE (2) GUARD INSTAL YF21C00001FE (2)
GUARD INSTAL YF21C00001FE (3) GUARD INSTAL YF21C00001FE (3)
GUARD INSTAL YF21C00001FE (4) GUARD INSTAL YF21C00001FE (4)
GUARD INSTAL YF21C00001FF (1) GUARD INSTAL YF21C00001FF (1)
GUARD INSTAL YF21C00001FF (2) GUARD INSTAL YF21C00001FF (2)
GUARD INSTAL YF21C00001FF (3) GUARD INSTAL YF21C00001FF (3)
GUARD INSTAL YF21C00001FF (4) GUARD INSTAL YF21C00001FF (4)
GUARD INSTAL YF21C00001FF (5) GUARD INSTAL YF21C00001FF (5)
GUARD INSTAL YF21C00001FF (6) GUARD INSTAL YF21C00001FF (6)
GUARD INSTAL YF21C00001FG (1) GUARD INSTAL YF21C00001FG (1)
GUARD INSTAL YF21C00001FG (2) GUARD INSTAL YF21C00001FG (2)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (1) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (1)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (10) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (10)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (11) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (11)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (12) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (12)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (13) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (13)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (14) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (14)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (15) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (15)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (16) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (16)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (2) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (2)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (3) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (3)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (4) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (4)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (5) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (5)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (6) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (6)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (7) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (7)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (8) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (8)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (9) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (9)
HARNESS ASSY, CAB YB14E00010F1 (1) HARNESS ASSY, CAB YB14E00010F1 (1)
HARNESS ASSY, CAB YB14E00010F1 (10) HARNESS ASSY, CAB YB14E00010F1 (10)
HARNESS ASSY, CAB YB14E00010F1 (11) HARNESS ASSY, CAB YB14E00010F1 (11)
HARNESS ASSY, CAB YB14E00010F1 (12) HARNESS ASSY, CAB YB14E00010F1 (12)
HARNESS ASSY, CAB YB14E00010F1 (2) HARNESS ASSY, CAB YB14E00010F1 (2)
HARNESS ASSY, CAB YB14E00010F1 (3) HARNESS ASSY, CAB YB14E00010F1 (3)
HARNESS ASSY, CAB YB14E00010F1 (4) HARNESS ASSY, CAB YB14E00010F1 (4)
HARNESS ASSY, CAB YB14E00010F1 (5) HARNESS ASSY, CAB YB14E00010F1 (5)
HARNESS ASSY, CAB YB14E00010F1 (6) HARNESS ASSY, CAB YB14E00010F1 (6)
1434 Все схемы
