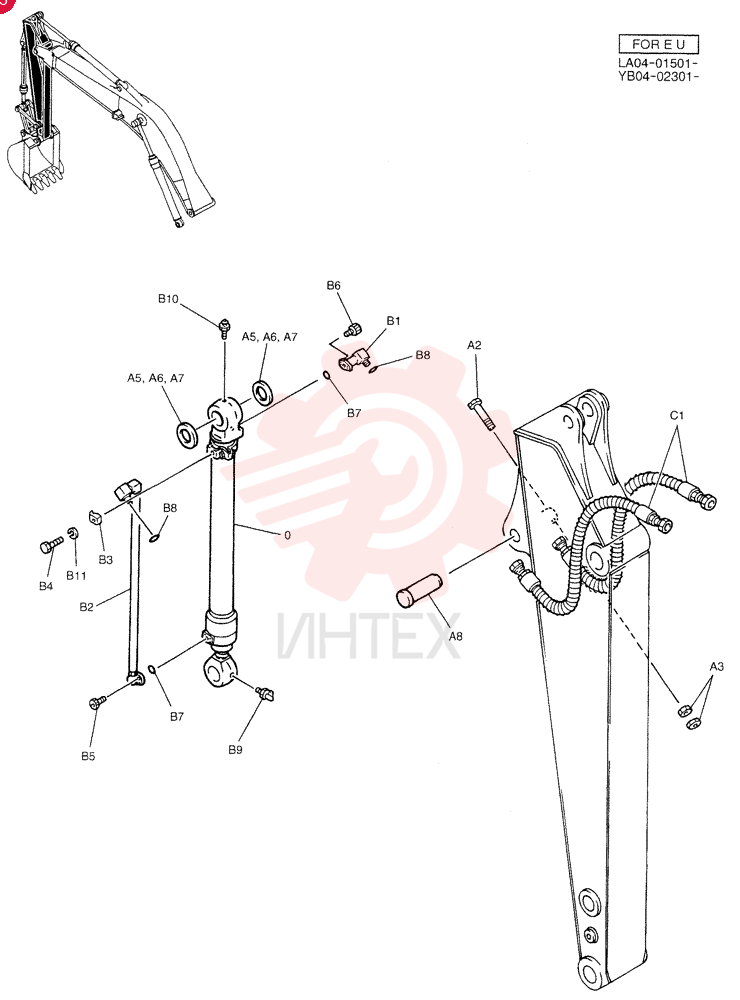

HYDRAULIC CYLINDER YB01V00011F2 (8)
1 YB01V00011F2
- YB01V00011F2 - HYDRAULIC CYLINDER
2 YN12B00121F2
- YN12B00121F2 - CYLINDER INSTAL
3 HS18C16140G1
- HS18C16140G1 - SCREW
4 ZN18C16013
- ZN18C16013 - NUT
5 YN12B01122D1
- YN12B01122D1 - SHIM
- 82mm ID x 140mm OD x 0.5mm Thk
6 YN12B01122D2
- YN12B01122D2 - SHIM
- 82mm ID x 140mm OD x 0.9mm Thk
7 YN12B01122D3
- YN12B01122D3 - SHIM
- 82mm ID x 140mm OD x 1.6mm Thk
8 YN12B01348P2
- YN12B01348P2 - PIN
9 YB43H00008F1
- YB43H00008F1 - HYD LINES
- CYLINDER
10 LQ43H01029P2
- LQ43H01029P2 - TUBE
11 YB43H01013P1
- YB43H01013P1 - RIGID TUBE
12 YN43H01097P1
- YN43H01097P1 - CLAMP
13 ZS18C10055
- ZS18C10055 - SCREW
- Hex
- M10 x 55mm
14 ZS28C10030
- ZS28C10030 - SCREW
- Hex Socket Head
- M10 x 30mm
15 ZS28C10035
- ZS28C10035 - SCREW
- Hex Socket Head
- M10 x 35mm
16 ZD12P02600
- ZD12P02600 - O-RING
17 ZD12A01800
- ZD12A01800 - O-RING
- 1.78mm Thk x 18.77mm ID
- Cl 6
18 ZG91U02000
- ZG91U02000 - LUBE NIPPLE
19 ZG91S02000
- ZG91S02000 - LUBE NIPPLE
- 1/8" NPT x 1/8" NPT
20 ZW26X10000
- ZW26X10000 - LOCK WASHER
21 YB43H00001F1
- YB43H00001F1 - HYD LINES
- ARM
22 ZX50H12120
- ZX50H12120 - FLEXIBLE HOSE
