(SK200SRLC-1S) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/01)
/

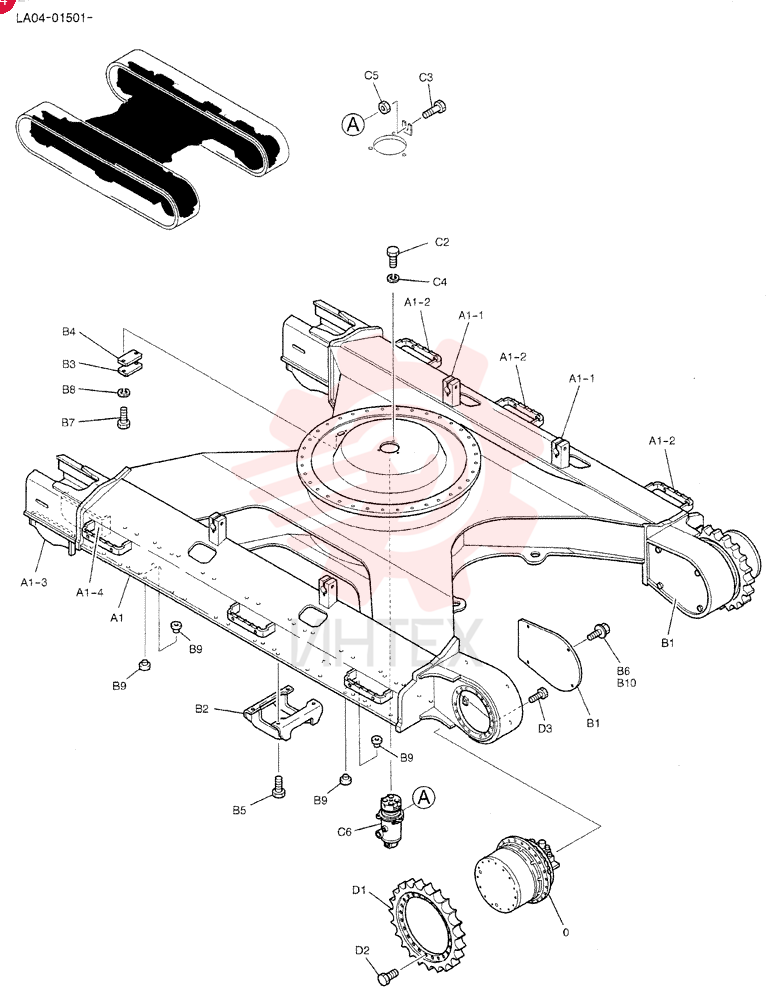

HYDRAULIC MOTOR YN15V00011F4 (4)

HYDRAULIC MOTOR YN15V00011F4 (4)

HYDRAULIC MOTOR YN15V00011F4 (4)

1 YN15V00011F4

  • YN15V00011F4 - HYDRAULIC MOTOR

2 YB02F00016P1

  • YB02F00016P1 -

3 YN07F01103P1

  • YN07F01103P1 - SUPPORT

4 YN41C00037P1

  • YN41C00037P1 - STEP

5 YN07F01075P1

  • YN07F01075P1 - GUIDE

6 YN07F01076P1

  • YN07F01076P1 - GUIDE

7 YN01F00029F1

  • YN01F00029F1 - LOW GROUP

8 YN01F01077P1

  • YN01F01077P1 - COVER

9 YN01F01039P1

  • YN01F01039P1 - GUIDE

10 2422T556

  • 2422T556 - PLATE

11 2418T12274

  • 2418T12274 - PACKING

12 2420P1580D1

  • 2420P1580D1 - SCREW
  • M18 x 1.5 x 40mm

13 2420T6786

  • 2420T6786 - BOLT
  • M12 x 1.75 x 25mm

14 ZS18C10014

  • ZS18C10014 - SCREW
  • Hex
  • M10 x 14mm

15 ZW26X10000

  • ZW26X10000 - LOCK WASHER

16 YN01F01040P1

  • YN01F01040P1 - CAP

17 ZM73C12025

  • ZM73C12025 - BOLT
  • M12x25mm - Course Thread

18 YN19H00040F2

  • YN19H00040F2 - FLEXIBLE JOINT

19 ZS18C12025

  • ZS18C12025 - SCREW
  • Hex
  • M12 x 25mm

20 ZS18F20120

  • ZS18F20120 - SCREW

21 ZW16X12000

  • ZW16X12000 - WASHER

22 ZN18F20016

  • ZN18F20016 - NUT

23 YN55V00037F2

  • YN55V00037F2 - FLEXIBLE JOINT

24 YN53D00010F1

  • YN53D00010F1 - MOTOR INSTAL
  • PROPEL

25 2404N262

  • 2404N262 - SPROCKET
  • 21 teeth
  • 664mm OD

26 ZS13C18055

  • ZS13C18055 - BOLT

27 YN53D01003P1

  • YN53D01003P1 - CAPSCREW
