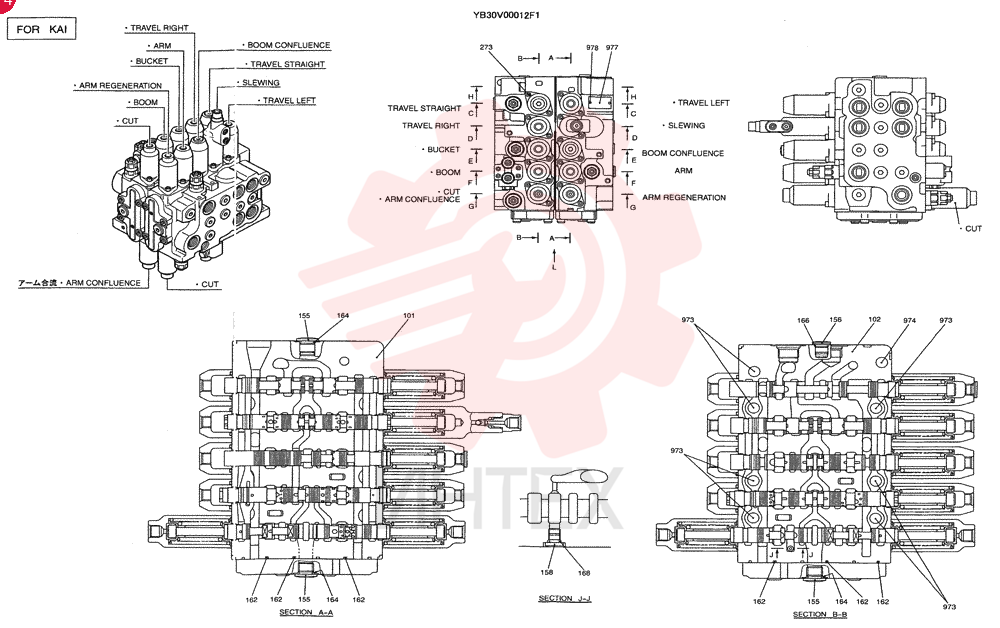

CONTROL VALVE
1 YB30V00012F1
- YB30V00012F1 - CONTROL VALVE
2 NSS
- NSS - NOT SOLD SEPARAT
3 NSS
- NSS - NOT SOLD SEPARAT
4 YW30V00001S155
- YW30V00001S155 - PLUG
5 YN30V00001S156
- YN30V00001S156 - PLUG
6 YN30V00001S158
- YN30V00001S158 - PLUG
7 ZD12G03000
- ZD12G03000 - O-RING
- 29.40mm ID x 35.60mm OD x 3.10mm
8 ZD12P01500
- ZD12P01500 - O-RING
9 ZD12P01800
- ZD12P01800 - O-RING
10 ZD12P01400
- ZD12P01400 - O-RING
11 ZD12P00800
- ZD12P00800 - O-RING
- 1.9mm Thk x 7.8mm ID
- 90 Duro
12 2436U1265S201
- 2436U1265S201 - COVER
13 LP30V01003F1
- LP30V01003F1 - COVER
14 YN30V00021S207
- YN30V00021S207 - COVER
15 2436U1265S203
- 2436U1265S203 - COVER
16 YX30V00009F1
- YX30V00009F1 - LOCK VALVE
17 YX20V01001S214
- YX20V01001S214 - PLATE
18 YY30V00031S262
- YY30V00031S262 - O-RING
19 ZD12G03500
- ZD12G03500 - O-RING
- 34.40mm ID x 40.60mm OD x 3.10mm
20 ZS23C12025
- ZS23C12025 - CAPSCREW
- Hex Socket Head
- M12 x 52mm
21 ZS23C08025
- ZS23C08025 - SCREW
- Hex Socket Head
- M8 x 25mm
22 YB30V00003S301
- YB30V00003S301 - REPAIR KIT
23 YB30V00011S302
- YB30V00011S302 - SPOOL
24 NSS
- NSS - NOT SOLD SEPARAT
25 YB30V00003S304
- YB30V00003S304 - SPOOL
26 YW30V00006S305
- YW30V00006S305 - SPOOL
27 YX30V00011S306
- YX30V00011S306 - REPAIR KIT
28 YB30V00012S307
- YB30V00012S307 -
29 YW30V00001S308
- YW30V00001S308 - SPOOL
30 LP30V00004S312
- LP30V00004S312 - REPAIR KIT
31 YB30V00003S310
- YB30V00003S310 - SPOOL
32 YY30V00044S322
- YY30V00044S322 - SPRING
33 YN30V00001S328
- YN30V00001S328 - SPRING
34 YX30V00011S324
- YX30V00011S324 - SPRING
35 YN30V00001S325
- YN30V00001S325 - SPRING
36 YN30V00001S326
- YN30V00001S326 - SPRING
37 YN30V00001S327
- YN30V00001S327 - SPRING
38 YX30V00011S328
- YX30V00011S328 - SPRING
39 2436U1265S322
- 2436U1265S322 - SPRING
40 2436U1265S332
- 2436U1265S332 - SPRING SEAT
41 2436U1265S336
- 2436U1265S336 - BOLT
42 2436U1265S335
- 2436U1265S335 - STOP
43 YN30V00001S338
- YN30V00001S338 - STOP
44 YX30V00012S333
- YX30V00012S333 - STOP
45 2436U1265S511
- 2436U1265S511 - POPPET
46 YW30V00001S513
- YW30V00001S513 - POPPET
47 YW30V00001S514
- YW30V00001S514 - POPPET
48 2436U1265S521
- 2436U1265S521 - SPRING
49 YW30V00001S524
- YW30V00001S524 - SPRING
50 YN30V00001S552
- YN30V00001S552 - PLUG
51 YW30V00001S556
- YW30V00001S556 - PLUG
52 ZD12P02000
- ZD12P02000 - O-RING
- 2.4mm Thk x 19.8mm ID
- 90 Duro
53 YN22V00001F4
- YN22V00001F4 - VALVE PRESSURE RELIE
54 YN22V00002F1
- YN22V00002F1 - VALVE
55 YN22V00002F9
- YN22V00002F9 - VALVE
56 ZS23C14110
- ZS23C14110 - SET SCREW
- Hex Socket Head
- M14 x 110mm
57 ZS23C14075
- ZS23C14075 - CAPSCREW
- Hex Socket Head
- M14 x 75mm
58 NSS
- NSS - NOT SOLD SEPARAT
59 NSS
- NSS - NOT SOLD SEPARAT
