(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

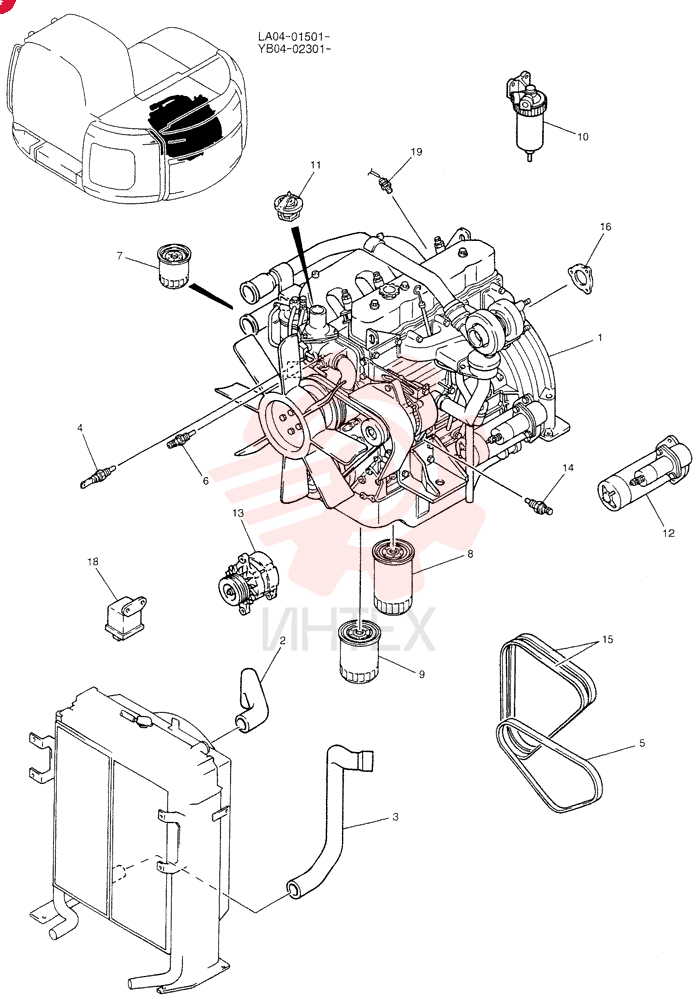

ENGINE YB02P00005F1 (2)

ENGINE YB02P00005F1 (2)

ENGINE YB02P00005F1 (2)

1 YB02P00005F1

  • YB02P00005F1 - ENGINE

2 YB02P00005F1

  • YB02P00005F1 - ENGINE

3 YB02P00005F3

  • YB02P00005F3 - ENGINE ASSEMBLY

4 YB02P00005F3

  • YB02P00005F3 - ENGINE ASSEMBLY

5 YB05P01001P1

  • YB05P01001P1 - FLEXIBLE HOSE

6 YB05P01002P1

  • YB05P01002P1 - FLEXIBLE HOSE

7 YT52S00001P1

  • YT52S00001P1 - SENSOR
  • 50 Degrees C to 120 Degrees C

8 YX20M01025P1

  • YX20M01025P1 - V-BELT
  • 42.92" L

9 VI8971256011

  • VI8971256011 - SWITCH

10 VI8971725491

  • VI8971725491 - ELEMENT

11 VI8970261342

  • VI8970261342 - FILTER

12 VI8941609641

  • VI8941609641 - ELEMENT

13 VI1132008410

  • VI1132008410 - OIL SEPARATOR

14 VI1137700700

  • VI1137700700 - THERMOSTAT

15 VI8970298637

  • VI8970298637 - STARTER MOTOR

16 VI1812004710

  • VI1812004710 - ALTERNATOR

17 VI1812004710

  • VI1812004710 - ALTERNATOR

18 VI1812005303

  • VI1812005303 - GENERATOR

19 VI1812005303

  • VI1812005303 - GENERATOR

20 VI1824100082

  • VI1824100082 - SWITCH

21 VI1136712830

  • VI1136712830 - SET OF 2 BELTS

22 VI8943690210

  • VI8943690210 - GASKET

23 VI8942580140

  • VI8942580140 - RELAY

24 VI1815105130

  • VI1815105130 - SENSOR
