(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

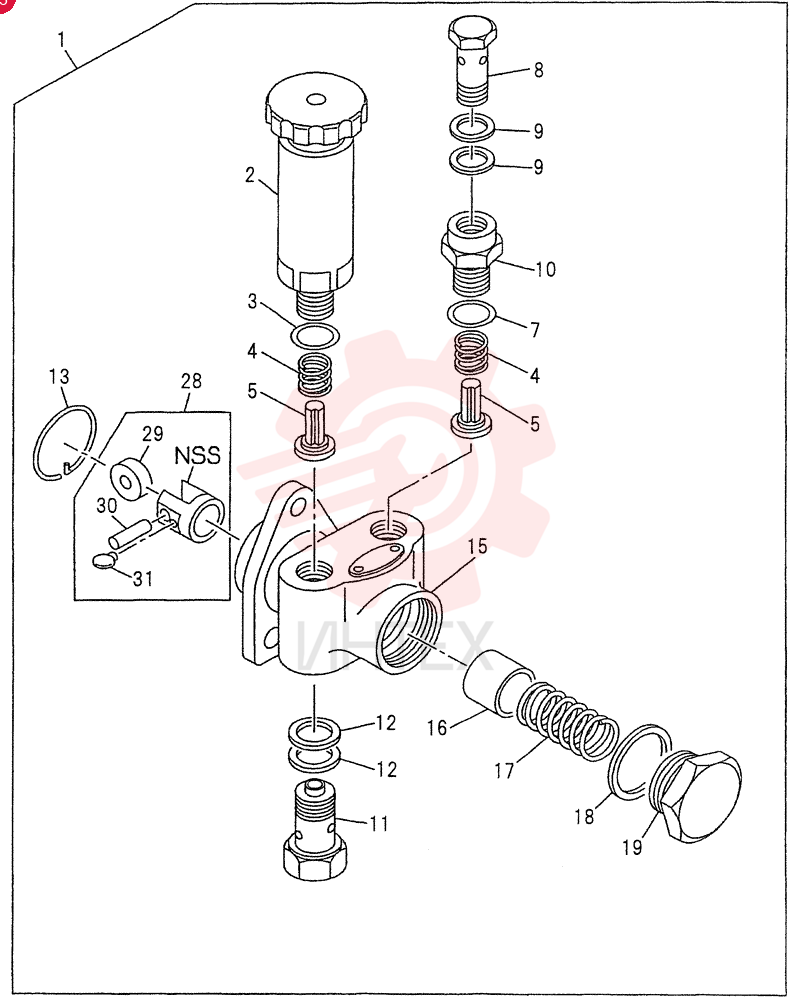

FEED PUMP; INJECTION PUMP 0-84B (4)

FEED PUMP; INJECTION PUMP 0-84B (4)

FEED PUMP; INJECTION PUMP 0-84B (4)

1 0-84B

  • 0-84B - FEED PUMP
  • INJECTION PUMP

2 VI8972410323

  • VI8972410323 - PUMP

3 VI1157501910

  • VI1157501910 - PUMP

4 VI1157610060

  • VI1157610060 - PUMP

5 VI1196230160

  • VI1196230160 - GASKET

6 VI9813517020

  • VI9813517020 - SPRING

7 VI1157550020

  • VI1157550020 - VALVE

8 VI1196230160

  • VI1196230160 - GASKET

9 VI1156190820

  • VI1156190820 - BOLT

10 VI1157590010

  • VI1157590010 - O-RING

11 VI1157590030

  • VI1157590030 - ADAPTER

12 VI5157590270

  • VI5157590270 - BOLT

13 VI1157590010

  • VI1157590010 - O-RING

14 VI9813550250

  • VI9813550250 - SNAP RING

15 VI1157510210

  • VI1157510210 - HOUSING
  • FUEL FEED PUMP

16 VI9813512050

  • VI9813512050 - PISTON

17 VI8972144660

  • VI8972144660 - SPRING
  • PISTON
  • FUEL FEED PUMP

18 VI9813550350

  • VI9813550350 - GASKET

19 VI8941711850

  • VI8941711850 - NUT

20 VI1157540020

  • VI1157540020 - TAPPET ASM
  • FUEL FEED PUMP

21 VI1157590430

  • VI1157590430 - ROLLER
  • TAPPET
  • FUEL FEED PUMP

22 VI9813514060

  • VI9813514060 - PIN
  • TAPPET ROLLER
  • FUEL FEED PUMP

23 VI9813514160

  • VI9813514160 - GUIDE
  • TAPPET
  • FUEL FEED PUMP
