(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

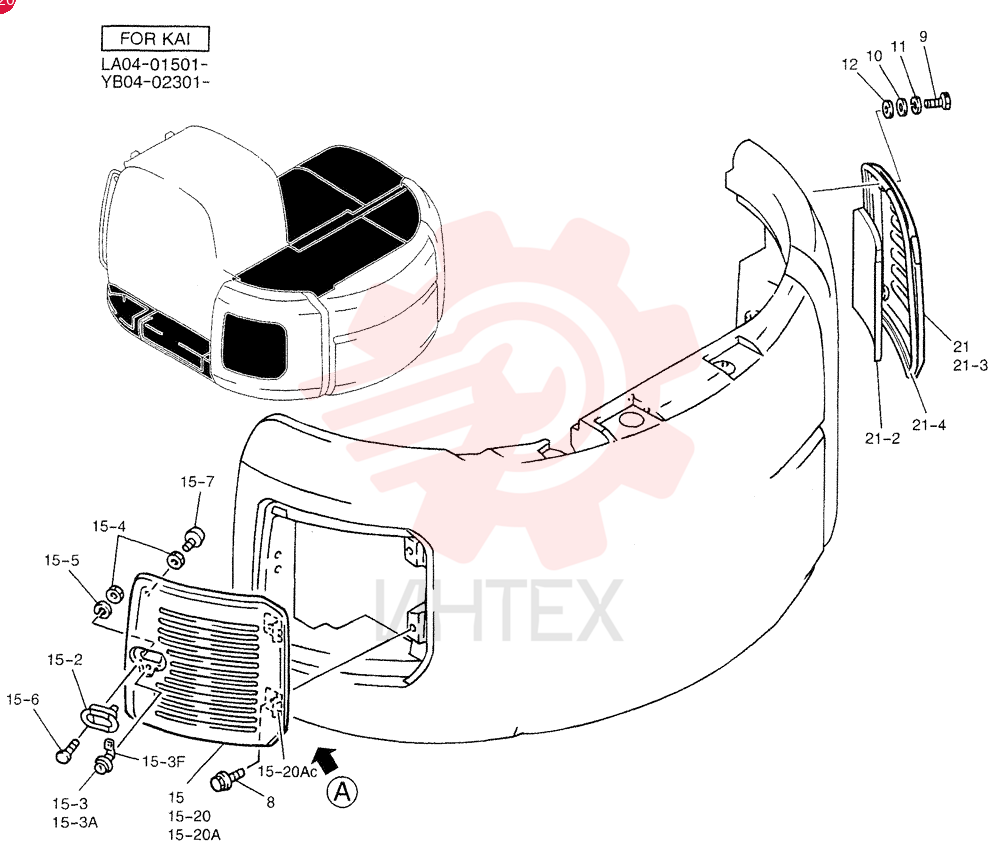

GUARD INSTAL YF21C00001FG (1)

GUARD INSTAL YF21C00001FG (1)

GUARD INSTAL YF21C00001FG (1)

1 YF21C00001FG

  • YF21C00001FG - GUARD INSTAL

2 ZM32C12025

  • ZM32C12025 - BOLT

3 HS18C10025G1

  • HS18C10025G1 - SCREW

4 HY25X11024G1

  • HY25X11024G1 - WASHER

5 YT21C01172P1

  • YT21C01172P1 - LOCK WASHER

6 YT21C01187P2

  • YT21C01187P2 - WASHER

7 YN21C01452F7

  • YN21C01452F7 - COVER ASSY

8 PM21C01109P1

  • PM21C01109P1 - LOCK

9 PM21C01268F1

  • PM21C01268F1 - LOCK

10 YR22C01025P1

  • YR22C01025P1 - LOCK

11 PM21C01269P1

  • PM21C01269P1 - PLATE

12 ZN18C05004

  • ZN18C05004 - NUT

13 ZW26X05000

  • ZW26X05000 - LOCK WASHER

14 PH22C01023P1

  • PH22C01023P1 - BOLT

15 2416T6682

  • 2416T6682 - RUBBER BAND

16 YF21C01004P1

  • YF21C01004P1 - STAY

17 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

18 2419R9D2

  • 2419R9D2 - COTTER PIN

19 YR21C01123P1

  • YR21C01123P1 - COLLAR

20 YF21C01005P2

  • YF21C01005P2 - COVER

21 YB21C01096P2

  • YB21C01096P2 - COVER

22 YT21C01027P1

  • YT21C01027P1 - HINGE

23 YB21C01075F4

  • YB21C01075F4 - COVER ASSY

24 YF21C01008P1

  • YF21C01008P1 - FOAM INSULATION

25 YB21C01095P1

  • YB21C01095P1 - COVER

26 YZ21C01044D9

  • YZ21C01044D9 - INSULATING PANEL
