(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

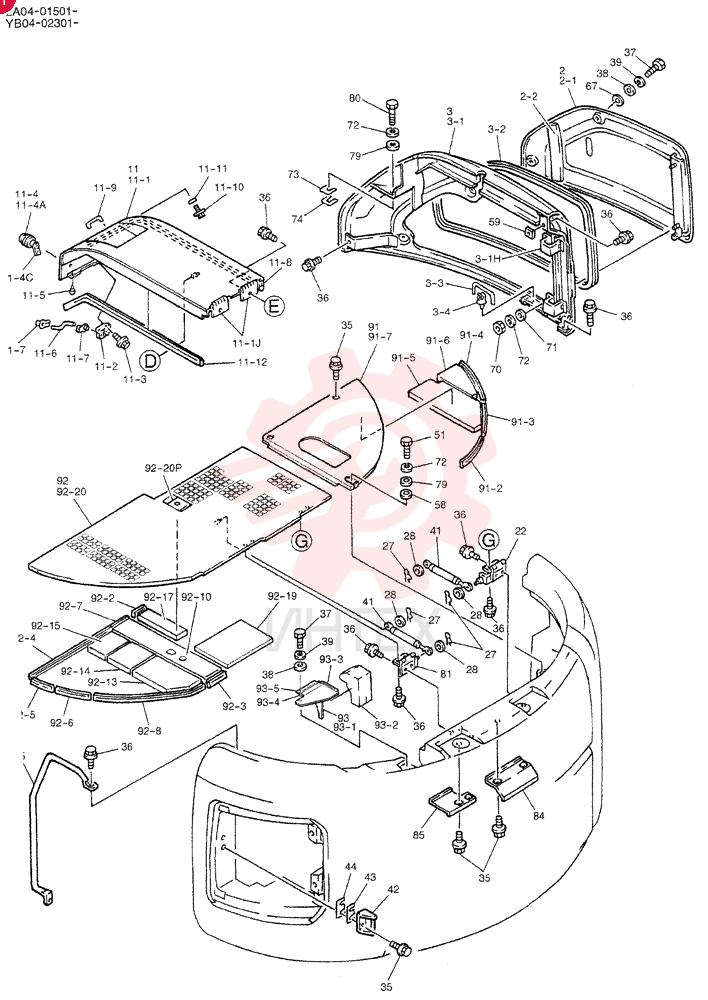

GUARD INSTAL YB21C00001F6 (11)

GUARD INSTAL YB21C00001F6 (11)

GUARD INSTAL YB21C00001F6 (11)

1 YB21C00001F6

  • YB21C00001F6 - GUARD INSTAL

2 YB21C01038F1

  • YB21C01038F1 - BODY

3 YB21C01061P1

  • YB21C01061P1 - BOXED PANEL

4 YB21C01010P2

  • YB21C01010P2 - COVER

5 YX21C01056P1

  • YX21C01056P1 - HINGE

6 YN21C01258P2

  • YN21C01258P2 - LOCK

7 YN21C01552P1

  • YN21C01552P1 - STAY

8 HY25X10027G1

  • HY25X10027G1 - WASHER
  • 10mm ID x 27mm OD x 3.2mm Thk

9 2419R9D2

  • 2419R9D2 - COTTER PIN

10 ZM32C12025

  • ZM32C12025 - BOLT

11 YN21C01710D4

  • YN21C01710D4 - RUBBER WEATHERSTRIP

12 YN21C01704P1

  • YN21C01704P1 - INSULATING PANEL

13 PY06C01040P1

  • PY06C01040P1 - STOP

14 ZN18F10008

  • ZN18F10008 - NUT

15 YN21C01706F1

  • YN21C01706F1 - PANEL

16 YN21C01616P2

  • YN21C01616P2 - PANEL

17 YN21C01705P1

  • YN21C01705P1 - FOAM INSULATION

18 YN21C01691F1

  • YN21C01691F1 - PANEL

19 YN21C01613P4

  • YN21C01613P4 - COWLING

20 YN21C01707P1

  • YN21C01707P1 - HINGE

21 PH21C01021D8

  • PH21C01021D8 - RUBBER WEATHERSTRIP

22 YX21C01204P1

  • YX21C01204P1 - STAY

23 YR21C01123P1

  • YR21C01123P1 - COLLAR

24 YN21C01535F1

  • YN21C01535F1 - COVER

25 YN21C01663P2

  • YN21C01663P2 - COVER

26 YN21C01725P1

  • YN21C01725P1 - HINGE

27 YN21C01438F3

  • YN21C01438F3 - LOCK

28 YR22C01025P2

  • YR22C01025P2 - LOCK

29 YN21C01537P1

  • YN21C01537P1 - PLATE

30 YT21C01034P1

  • YT21C01034P1 - CATCH

31 YN21C01538P2

  • YN21C01538P2 - ROD

32 YT21C01053P1

  • YT21C01053P1 - CLIP

33 ZM11C06014

  • ZM11C06014 - SCREW

34 ZW16X06000

  • ZW16X06000 - WASHER

35 YN21C01662P3

  • YN21C01662P3 - COVER

36 YN21C01687P1

  • YN21C01687P1 - GRIP

37 YN21C01567P1

  • YN21C01567P1 - STRIKER PLATE

38 ZM32C12025

  • ZM32C12025 - BOLT

39 PY06C01040P1

  • PY06C01040P1 - STOP

40 ZN18F10008

  • ZN18F10008 - NUT

41 YN21C01734P2

  • YN21C01734P2 - STAY

42 HY25X10027G1

  • HY25X10027G1 - WASHER
  • 10mm ID x 27mm OD x 3.2mm Thk

43 2419R9D2

  • 2419R9D2 - COTTER PIN

44 YR21C01123P1

  • YR21C01123P1 - COLLAR

45 YN21C01749P2

  • YN21C01749P2 - COVER

46 YN21C01686F3

  • YN21C01686F3 - COVER ASSY

47 YN21C01551P2

  • YN21C01551P2 - COVER

48 YF21C01051P1

  • YF21C01051P1 - FOAM INSULATION

49 YB21C01074P1

  • YB21C01074P1 - FOAM INSULATION

50 YB21C01039F1

  • YB21C01039F1 - COVER

51 YB21C01068P1

  • YB21C01068P1 - GUARD

52 YT21C01057P1

  • YT21C01057P1 - HINGE

53 YT21C01034P2

  • YT21C01034P2 - CATCH

54 ZM61C06016

  • ZM61C06016 - BOLT

55 YN21C01438F2

  • YN21C01438F2 - LOCK

56 YR22C01025P2

  • YR22C01025P2 - LOCK

57 YN21C01702P1

  • YN21C01702P1 - PLATE

58 YT21C01143P1

  • YT21C01143P1 - RUBBER SLEEVE

59 YN21C01572P1

  • YN21C01572P1 - ROD

60 YT21C01053P1

  • YT21C01053P1 - CLIP

61 YW21C01057D4

  • YW21C01057D4 - WEATHERSEAL STRIP

62 YN21C01181P1

  • YN21C01181P1 - HANDLE

63 ZM12C08020

  • ZM12C08020 - BOLT

64 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

65 PY01P01019D9

  • PY01P01019D9 - WEATHERSEAL STRIP

66 YB21C01040F1

  • YB21C01040F1 - COVER

67 YB21C01063P1

  • YB21C01063P1 - GUARD

68 YJ21C01146D3

  • YJ21C01146D3 - INSULATING PANEL

69 YJ21C01079D2

  • YJ21C01079D2 - WEATHERSTRIP

70 YB21C01041F1

  • YB21C01041F1 - COVER ASSY

71 YB21C01018P1

  • YB21C01018P1 - COVER

72 YJ21C01146D7

  • YJ21C01146D7 - STRIP

73 YJ21C01146D4

  • YJ21C01146D4 - TRIM

74 YB21C01042F1

  • YB21C01042F1 - GUARD

75 YB21C01022P1

  • YB21C01022P1 - COVER

76 YW21C01057D9

  • YW21C01057D9 - WEATHERSTRIP

77 YT21C01163DE

  • YT21C01163DE - INSULATING PANEL

78 YN21C01136D4

  • YN21C01136D4 - WEATHERSTRIP

79 YN21C01687P1

  • YN21C01687P1 - GRIP

80 YB21C01072P1

  • YB21C01072P1 - FOAM INSULATION

81 YB21C01043F1

  • YB21C01043F1 - COVER

82 YB21C01004P1

  • YB21C01004P1 - GUARD

83 YB21C01033P1

  • YB21C01033P1 - INSULATING PANEL

84 YB21C01060P1

  • YB21C01060P1 - COVER

85 YB21C01044F2

  • YB21C01044F2 - U-BRACKET

86 YB21C01034D1

  • YB21C01034D1 - INSULATING PANEL

87 YN21C01530P1

  • YN21C01530P1 - INSULATING PANEL

88 YB21C01035D1

  • YB21C01035D1 - LABEL

89 YB21C01080P1

  • YB21C01080P1 - INSULATING PANEL

90 YB21C01081P1

  • YB21C01081P1 - INSULATING PANEL

91 YT21C01163D1

  • YT21C01163D1 - INSULATING PANEL

92 LE21C01070DK

  • LE21C01070DK - WEATHERSEAL STRIP

93 PY01P01019D1

  • PY01P01019D1 - INSULATING PANEL

94 YB21C01092P2

  • YB21C01092P2 - U-BRACKET

95 YB21C01045F2

  • YB21C01045F2 - COVER ASSY

96 YN21C01710D4

  • YN21C01710D4 - RUBBER WEATHERSTRIP

97 YB21C01036D1

  • YB21C01036D1 - RUBBER

98 YN21C01722P1

  • YN21C01722P1 - GUARD

99 ZM12C08020

  • ZM12C08020 - BOLT

100 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

101 LE21C01070DG

  • LE21C01070DG - RUBBER WEATHERSTRIP

102 YB21C01036D2

  • YB21C01036D2 - RUBBER

103 YB21C01089P1

  • YB21C01089P1 - COVER

104 YB21C01062P1

  • YB21C01062P1 - U-BRACKET

105 YB21C01079F1

  • YB21C01079F1 - GUARD

106 YB21C01077P1

  • YB21C01077P1 - GUARD

107 YB21C01078P1

  • YB21C01078P1 - INSULATING PANEL

108 YN21C01751F1

  • YN21C01751F1 - BRACKET

109 YN21C01743P1

  • YN21C01743P1 - BRACKET

110 PY06C01040P1

  • PY06C01040P1 - STOP

111 ZN18F10008

  • ZN18F10008 - NUT

112 YN21C01440P1

  • YN21C01440P1 - HINGE

113 YN21C01434P2

  • YN21C01434P2 - STAY

114 YB21C01021P1

  • YB21C01021P1 - SUPPORT

115 YB21C01047F1

  • YB21C01047F1 - GUARD

116 YB21C01023P1

  • YB21C01023P1 - GUARD

117 2427P1836D14

  • 2427P1836D14 - WEATHERSTRIP

118 PH03M01281P1

  • PH03M01281P1 - GROMMET

119 YW21C01302P1

  • YW21C01302P1 - GAS STRUT

120 2419R9D2

  • 2419R9D2 - COTTER PIN

121 ZW16X08000

  • ZW16X08000 - WASHER
  • 8mm ID x 17mm OD x 1.6mm Thk

122 HY25X10027G1

  • HY25X10027G1 - WASHER
  • 10mm ID x 27mm OD x 3.2mm Thk

123 YN21C01321P1

  • YN21C01321P1 - STOP

124 YN21C01748P1

  • YN21C01748P1 - STRIKER PLATE

125 ZM32C12025

  • ZM32C12025 - BOLT

126 ZM32C12030

  • ZM32C12030 - BOLT

127 HS18C10025G1

  • HS18C10025G1 - SCREW

128 HY25X11024G1

  • HY25X11024G1 - WASHER

129 YT21C01172P1

  • YT21C01172P1 - LOCK WASHER

130 YW21C01180P1

  • YW21C01180P1 - GAS STRUT

131 YN21C01467P2

  • YN21C01467P2 - STRIKER PLATE

132 YN21C0117401

  • YN21C0117401 - SPACER

133 YN21C01174D2

  • YN21C01174D2 - SPACER

134 YB21C01050F1

  • YB21C01050F1 - U-BRACKET

135 YB21C01007P2

  • YB21C01007P2 - U-BRACKET

136 YB21C01071D1

  • YB21C01071D1 - INSULATING PANEL

137 ZN18F10008

  • ZN18F10008 - NUT

138 YB21C01031P1

  • YB21C01031P1 - CAPSCREW

139 ZS18C12035

  • ZS18C12035 - SCREW
  • Hex
  • M12 x 35mm

140 YB21C01064P1

  • YB21C01064P1 - COVER

141 YB21C01025P1

  • YB21C01025P1 - GUARD

142 YB21C01024P1

  • YB21C01024P1 - GUARD

143 YB21C01030P1

  • YB21C01030P1 - STRIKER PLATE

144 YN21C01752P1

  • YN21C01752P1 - BOLT

145 YT21C01179D1

  • YT21C01179D1 - SHIM

146 YX21C01165D2

  • YX21C01165D2 - SPACER

147 HY35X13025G1

  • HY35X13025G1 - WASHER

148 ZS18C12045

  • ZS18C12045 - SCREW
  • Hex
  • M12 x 45mm

149 ZS18C12060

  • ZS18C12060 - SCREW
  • Hex
  • M12 x 60mm

150 YN21C01694P1

  • YN21C01694P1 - STRIKER PLATE

151 ZS18C12025

  • ZS18C12025 - SCREW
  • Hex
  • M12 x 25mm

152 YN21C01685P1

  • YN21C01685P1 - STAY

153 YT21C01187P2

  • YT21C01187P2 - WASHER

154 YB21C01006P1

  • YB21C01006P1 - GUARD

155 ZM12C08020

  • ZM12C08020 - BOLT

156 ZN18C12010

  • ZN18C12010 - NUT

157 2418T10357

  • 2418T10357 - WASHER

158 ZW26X12000

  • ZW26X12000 - LOCK WASHER

159 YN21C01175D1

  • YN21C01175D1 - SHIM

160 YN21C01175D2

  • YN21C01175D2 - SHIM

161 YN21C01713P1

  • YN21C01713P1 - U-BRACKET

162 ZS18C12055

  • ZS18C12055 - SCREW
  • Hex
  • M12 x 55mm

163 2418T17912D1

  • 2418T17912D1 - WASHER

164 ZS18C12030

  • ZS18C12030 - SCREW
  • Hex
  • M12 x 30mm

165 YB21C01020P1

  • YB21C01020P1 - HINGE

166 YB21C01067P1

  • YB21C01067P1 - U-BRACKET

167 YB21C01052F1

  • YB21C01052F1 - COVER

168 YB21C01055P1

  • YB21C01055P1 - COVER

169 YB21C0107301

  • YB21C0107301 - RUBBER

170 YB21C01152P1

  • YB21C01152P1 - GUARD

171 YB21C01153P1

  • YB21C01153P1 - GUARD

172 YB21C01057P1

  • YB21C01057P1 - U-BRACKET

173 YB21C01082P1

  • YB21C01082P1 - PLATE

174 YB21C01051F2

  • YB21C01051F2 - GUARD

175 YN21C01528D6

  • YN21C01528D6 - INSULATING PANEL

176 YJ21C01080D5

  • YJ21C01080D5 - INSULATING PANEL

177 YJ21C01080D6

  • YJ21C01080D6 - INSULATING PANEL

178 LE21C01070D2

  • LE21C01070D2 - RUBBER WEATHERSTRIP

179 YB21C01084P1

  • YB21C01084P1 - GUARD

180 2416Z440D7

  • 2416Z440D7 - INSULATING PANEL

181 YR21C01251D1

  • YR21C01251D1 - INSULATING PANEL

182 YB21C01091F1

  • YB21C01091F1 - COVER ASSY

183 YB21C01090P1

  • YB21C01090P1 - COVER

184 YN21C01712D9

  • YN21C01712D9 - INSULATING PANEL

185 PH03M01264D4

  • PH03M01264D4 - INSULATING PANEL

186 PH03M01264D5

  • PH03M01264D5 - RUBBER

187 PH03M01264D6

  • PH03M01264D6 - INSULATING PANEL

188 YB22C00002F2

  • YB22C00002F2 - GUARD

189 YT21C01163DC

  • YT21C01163DC - WEATHERSTRIP

190 YJ21C01079DD

  • YJ21C01079DD - RUBBER WEATHERSTRIP

191 YT21C01163D3

  • YT21C01163D3 - WEATHERSTRIP

192 YB22C01005P1

  • YB22C01005P1 - FOAM INSULATION

193 YB22C01006P1

  • YB22C01006P1 - FOAM INSULATION

194 YB22C01039P1

  • YB22C01039P1 - GUARD

195 YB22C00001F4

  • YB22C00001F4 - BONNET ASSY

196 YA21C01036D4

  • YA21C01036D4 - WEATHERSEAL STRIP

197 LE21C01070D2

  • LE21C01070D2 - RUBBER WEATHERSTRIP

198 YT21C01163DB

  • YT21C01163DB - INSULATING PANEL

199 YW21C01057D7

  • YW21C01057D7 - RUBBER WEATHERSTRIP

200 LE21C01070DG

  • LE21C01070DG - RUBBER WEATHERSTRIP

201 2427P1836D10

  • 2427P1836D10 - WEATHERSTRIP

202 YT21C01163DA

  • YT21C01163DA - WEATHERSEAL STRIP

203 YB22C01003P1

  • YB22C01003P1 - FOAM INSULATION

204 YB22C01003P1

  • YB22C01003P1 - FOAM INSULATION

205 YB22C01003P2

  • YB22C01003P2 - INSULATION

206 YB22C01003P2

  • YB22C01003P2 - INSULATION

207 YB22C01009P1

  • YB22C01009P1 - FOAM INSULATION

208 YB22C01010P1

  • YB22C01010P1 - FOAM INSULATION

209 YB22C01011P1

  • YB22C01011P1 - FOAM INSULATION

210 YB22C01013P1

  • YB22C01013P1 - FOAM INSULATION

211 YB22C01041P1

  • YB22C01041P1 - INSULATING PANEL

212 YB22C01042P1

  • YB22C01042P1 - BONNET

213 YN21C02224P1

  • YN21C02224P1 - LOCK

214 YB21C01156F1

  • YB21C01156F1 - GUARD

215 YB21C01154P1

  • YB21C01154P1 - GUARD

216 YB21C01032P1

  • YB21C01032P1 - INSULATING PANEL

217 YJ21C01103D4

  • YJ21C01103D4 - INSULATING PANEL

218 YT21C01159D6

  • YT21C01159D6 - WEATHERSTRIP

219 YT21C01297DA

  • YT21C01297DA - INSULATING PANEL

(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06) — другие схемы

FUEL FILTER AND BRACKET 0-41A (3) FUEL FILTER AND BRACKET 0-41A (3)
FUEL FILTER AND BRACKET 0-41A (4) FUEL FILTER AND BRACKET 0-41A (4)
FUEL FILTER AND BRACKET 0-41A (5) FUEL FILTER AND BRACKET 0-41A (5)
FUEL FILTER AND BRACKET 0-41A (6) FUEL FILTER AND BRACKET 0-41A (6)
FUEL FILTER AND BRACKET 0-41A (7) FUEL FILTER AND BRACKET 0-41A (7)
FUEL FILTER AND BRACKET 0-41A (8) FUEL FILTER AND BRACKET 0-41A (8)
FUEL INJECTION SYSTEM 0-40A (1) FUEL INJECTION SYSTEM 0-40A (1)
FUEL INJECTION SYSTEM 0-40A (2) FUEL INJECTION SYSTEM 0-40A (2)
FUEL INJECTION SYSTEM 0-40A (3) FUEL INJECTION SYSTEM 0-40A (3)
FUEL INJECTION SYSTEM 0-40A (4) FUEL INJECTION SYSTEM 0-40A (4)
FUEL LINES YB21P00003F1 (1) FUEL LINES YB21P00003F1 (1)
FUEL LINES YB21P00003F1 (2) FUEL LINES YB21P00003F1 (2)
FUEL LINES YB21P00003F1 (3) FUEL LINES YB21P00003F1 (3)
FUEL LINES YB21P00003F1 (4) FUEL LINES YB21P00003F1 (4)
FUEL LINES YB21P00003F2 (1) FUEL LINES YB21P00003F2 (1)
FUEL LINES YB21P00003F2 (2) FUEL LINES YB21P00003F2 (2)
FUEL LINES YB21P00003F2 (3) FUEL LINES YB21P00003F2 (3)
FUEL LINES YB21P00003F2 (4) FUEL LINES YB21P00003F2 (4)
FUEL PUMP AND PIPE 0-42A (1) FUEL PUMP AND PIPE 0-42A (1)
FUEL PUMP AND PIPE 0-42A (2) FUEL PUMP AND PIPE 0-42A (2)
FUEL PUMP AND PIPE 0-42A (3) FUEL PUMP AND PIPE 0-42A (3)
FUEL PUMP AND PIPE 0-42A (4) FUEL PUMP AND PIPE 0-42A (4)
FUEL PUMP YB22P00002F1 (1) FUEL PUMP YB22P00002F1 (1)
FUEL PUMP YB22P00002F1 (2) FUEL PUMP YB22P00002F1 (2)
FUEL PUMP YB22P00002F1 (3) FUEL PUMP YB22P00002F1 (3)
FUEL PUMP YB22P00002F1 (4) FUEL PUMP YB22P00002F1 (4)
FUEL PUMP YF22P00002F1 (1) FUEL PUMP YF22P00002F1 (1)
FUEL PUMP YF22P00002F1 (2) FUEL PUMP YF22P00002F1 (2)
FUEL PUMP YF22P00002F1 (3) FUEL PUMP YF22P00002F1 (3)
FUEL PUMP YF22P00002F1 (4) FUEL PUMP YF22P00002F1 (4)
GAUGE YV59S00004F2 (1) GAUGE YV59S00004F2 (1)
GAUGE YV59S00004F2 (2) GAUGE YV59S00004F2 (2)
GAUGE YV59S00004F2 (3) GAUGE YV59S00004F2 (3)
GAUGE YV59S00004F2 (4) GAUGE YV59S00004F2 (4)
GAUGE YY59S00003F1 (1) GAUGE YY59S00003F1 (1)
GAUGE YY59S00003F1 (2) GAUGE YY59S00003F1 (2)
GAUGE YY59S00003F1 (3) GAUGE YY59S00003F1 (3)
GAUGE YY59S00003F1 (4) GAUGE YY59S00003F1 (4)
GEAR REDUCTION UNIT YB32W00001F1 (1) GEAR REDUCTION UNIT YB32W00001F1 (1)
GEAR REDUCTION UNIT YB32W00001F1 (2) GEAR REDUCTION UNIT YB32W00001F1 (2)
GENERATOR 0-66 (1) GENERATOR 0-66 (1)
GENERATOR 0-66 (2) GENERATOR 0-66 (2)
GENERATOR 0-66 (3) GENERATOR 0-66 (3)
GENERATOR 0-66 (4) GENERATOR 0-66 (4)
GENERATOR 0-66 (5) GENERATOR 0-66 (5)
GENERATOR 0-66 (6) GENERATOR 0-66 (6)
GENERATOR 0-66 (7) GENERATOR 0-66 (7)
GENERATOR 0-66 (8) GENERATOR 0-66 (8)
GOVERNOR; INJECTION PUMP 0-81B (1) GOVERNOR; INJECTION PUMP 0-81B (1)
GOVERNOR; INJECTION PUMP 0-81B (2) GOVERNOR; INJECTION PUMP 0-81B (2)
GOVERNOR; INJECTION PUMP 0-81B (3) GOVERNOR; INJECTION PUMP 0-81B (3)
GOVERNOR; INJECTION PUMP 0-81B (4) GOVERNOR; INJECTION PUMP 0-81B (4)
GUARD INSTAL YB21C00005F2 (1) GUARD INSTAL YB21C00005F2 (1)
GUARD INSTAL YB21C00005F2 (2) GUARD INSTAL YB21C00005F2 (2)
GUARD INSTAL YB21C00005F2 (3) GUARD INSTAL YB21C00005F2 (3)
GUARD INSTAL YB21C00005F2 (4) GUARD INSTAL YB21C00005F2 (4)
GUARD INSTAL YB21C00005F2 (5) GUARD INSTAL YB21C00005F2 (5)
GUARD INSTAL YB21C00005F2 (6) GUARD INSTAL YB21C00005F2 (6)
GUARD INSTAL YB21C00001F6 (1) GUARD INSTAL YB21C00001F6 (1)
GUARD INSTAL YB21C00001F6 (10) GUARD INSTAL YB21C00001F6 (10)
GUARD INSTAL YB21C00001F6 (11) GUARD INSTAL YB21C00001F6 (11)
GUARD INSTAL YB21C00001F6 (12) GUARD INSTAL YB21C00001F6 (12)
GUARD INSTAL YB21C00001F6 (2) GUARD INSTAL YB21C00001F6 (2)
GUARD INSTAL YB21C00001F6 (3) GUARD INSTAL YB21C00001F6 (3)
GUARD INSTAL YB21C00001F6 (4) GUARD INSTAL YB21C00001F6 (4)
GUARD INSTAL YB21C00001F6 (5) GUARD INSTAL YB21C00001F6 (5)
GUARD INSTAL YB21C00001F6 (6) GUARD INSTAL YB21C00001F6 (6)
GUARD INSTAL YB21C00001F6 (7) GUARD INSTAL YB21C00001F6 (7)
GUARD INSTAL YB21C00001F6 (8) GUARD INSTAL YB21C00001F6 (8)
GUARD INSTAL YB21C00001F6 (9) GUARD INSTAL YB21C00001F6 (9)
GUARD INSTAL YB21C00005F2 (1) GUARD INSTAL YB21C00005F2 (1)
GUARD INSTAL YB21C00005F2 (2) GUARD INSTAL YB21C00005F2 (2)
GUARD INSTAL YB21C00005F2 (3) GUARD INSTAL YB21C00005F2 (3)
GUARD INSTAL YB21C00005F2 (4) GUARD INSTAL YB21C00005F2 (4)
GUARD INSTAL YB21C00005F2 (5) GUARD INSTAL YB21C00005F2 (5)
GUARD INSTAL YB21C00005F2 (6) GUARD INSTAL YB21C00005F2 (6)
GUARD INSTAL YF21C00001FE (1) GUARD INSTAL YF21C00001FE (1)
GUARD INSTAL YF21C00001FE (2) GUARD INSTAL YF21C00001FE (2)
GUARD INSTAL YF21C00001FE (3) GUARD INSTAL YF21C00001FE (3)
GUARD INSTAL YF21C00001FE (4) GUARD INSTAL YF21C00001FE (4)
GUARD INSTAL YF21C00001FF (1) GUARD INSTAL YF21C00001FF (1)
GUARD INSTAL YF21C00001FF (2) GUARD INSTAL YF21C00001FF (2)
GUARD INSTAL YF21C00001FF (3) GUARD INSTAL YF21C00001FF (3)
GUARD INSTAL YF21C00001FF (4) GUARD INSTAL YF21C00001FF (4)
GUARD INSTAL YF21C00001FF (5) GUARD INSTAL YF21C00001FF (5)
GUARD INSTAL YF21C00001FF (6) GUARD INSTAL YF21C00001FF (6)
GUARD INSTAL YF21C00001FG (1) GUARD INSTAL YF21C00001FG (1)
GUARD INSTAL YF21C00001FG (2) GUARD INSTAL YF21C00001FG (2)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (1) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (1)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (10) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (10)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (11) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (11)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (12) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (12)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (13) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (13)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (14) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (14)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (15) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (15)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (16) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (16)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (2) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (2)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (3) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (3)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (4) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (4)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (5) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (5)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (6) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (6)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (7) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (7)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (8) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (8)
HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (9) HARNESS ASSY, CAB (WITHOUT POWER WINDOW) YB14E00013F1 (9)
HARNESS ASSY, CAB YB14E00010F1 (1) HARNESS ASSY, CAB YB14E00010F1 (1)
HARNESS ASSY, CAB YB14E00010F1 (10) HARNESS ASSY, CAB YB14E00010F1 (10)
HARNESS ASSY, CAB YB14E00010F1 (11) HARNESS ASSY, CAB YB14E00010F1 (11)
HARNESS ASSY, CAB YB14E00010F1 (12) HARNESS ASSY, CAB YB14E00010F1 (12)
HARNESS ASSY, CAB YB14E00010F1 (2) HARNESS ASSY, CAB YB14E00010F1 (2)
HARNESS ASSY, CAB YB14E00010F1 (3) HARNESS ASSY, CAB YB14E00010F1 (3)
HARNESS ASSY, CAB YB14E00010F1 (4) HARNESS ASSY, CAB YB14E00010F1 (4)
HARNESS ASSY, CAB YB14E00010F1 (5) HARNESS ASSY, CAB YB14E00010F1 (5)
HARNESS ASSY, CAB YB14E00010F1 (6) HARNESS ASSY, CAB YB14E00010F1 (6)
HARNESS ASSY, CAB YB14E00010F1 (7) HARNESS ASSY, CAB YB14E00010F1 (7)
HARNESS ASSY, CAB YB14E00010F1 (8) HARNESS ASSY, CAB YB14E00010F1 (8)
HARNESS ASSY, CAB YB14E00010F1 (9) HARNESS ASSY, CAB YB14E00010F1 (9)
HARNESS ASSY, CAB YB14E00015F1 (1) HARNESS ASSY, CAB YB14E00015F1 (1)
HARNESS ASSY, CAB YB14E00015F1 (10) HARNESS ASSY, CAB YB14E00015F1 (10)
HARNESS ASSY, CAB YB14E00015F1 (11) HARNESS ASSY, CAB YB14E00015F1 (11)
HARNESS ASSY, CAB YB14E00015F1 (12) HARNESS ASSY, CAB YB14E00015F1 (12)
1436 Все схемы
