(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

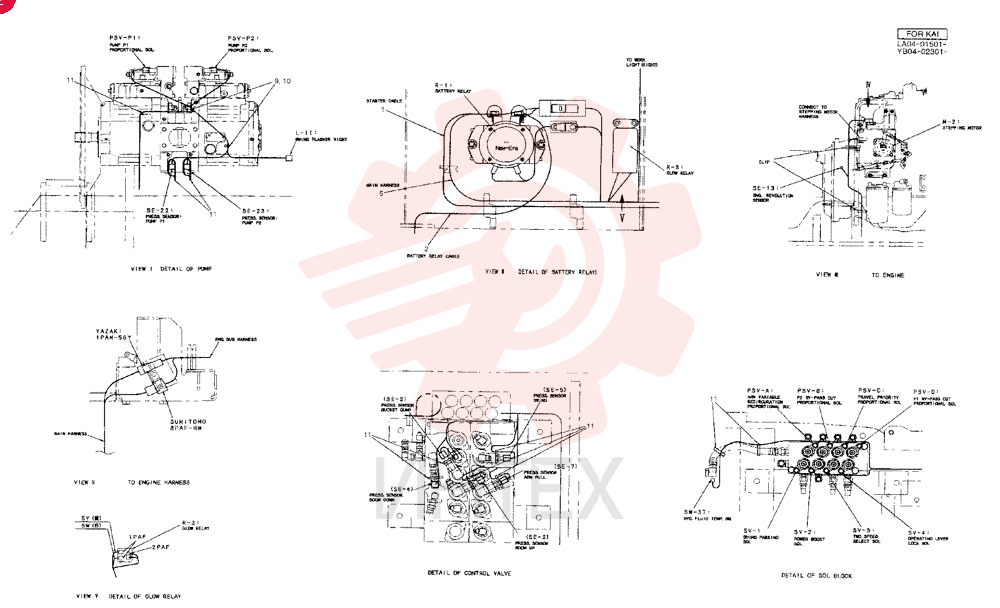

HARNESS ASSY, UPPER YB13E00012F1 (4)

HARNESS ASSY, UPPER YB13E00012F1 (4)

HARNESS ASSY, UPPER YB13E00012F1 (4)

1 YB13E00012F1

  • YB13E00012F1 - HARNESS ASSY
  • UPPER

2 YB13E01008D1

  • YB13E01008D1 - CABLE

3 YB13E01004D1

  • YB13E01004D1 - CABLE

4 YB13E01003D1

  • YB13E01003D1 - CABLE

5 2486R87D2

  • 2486R87D2 - CABLE

6 YB13E01027P3

  • YB13E01027P3 - HARNESS
  • Serial Range: LA04-01501-LA04-01521

7 YB13E01027P3

  • YB13E01027P3 - HARNESS
  • Serial Range: YB04-02301-YB04-02336

8 YB13E01027P4

  • YB13E01027P4 - WIRE HARNESS

9 YB13E01027P4

  • YB13E01027P4 - WIRE HARNESS

10 LE13E01006P1

  • LE13E01006P1 - HARNESS

11 ZN18C08007

  • ZN18C08007 - NUT

12 ZW26X08000

  • ZW26X08000 - LOCK WASHER

13 2432R233D1

  • 2432R233D1 - CLIP

14 ZM61C06012

  • ZM61C06012 - BOLT

15 PY01P01043D4

  • PY01P01043D4 - CABLE TIE
  • 4.80mm W x 251mm L

16 YT13E01021P2

  • YT13E01021P2 - GROMMET

17 YN25M01045P1

  • YN25M01045P1 - GROMMET

18 YB13E01009P1

  • YB13E01009P1 - GROMMET
