(SK200SRLC) - SHORT RADIUS EXCAVATOR BTW LA04-01501 - LA04-01625 (1/01-12/06)
/

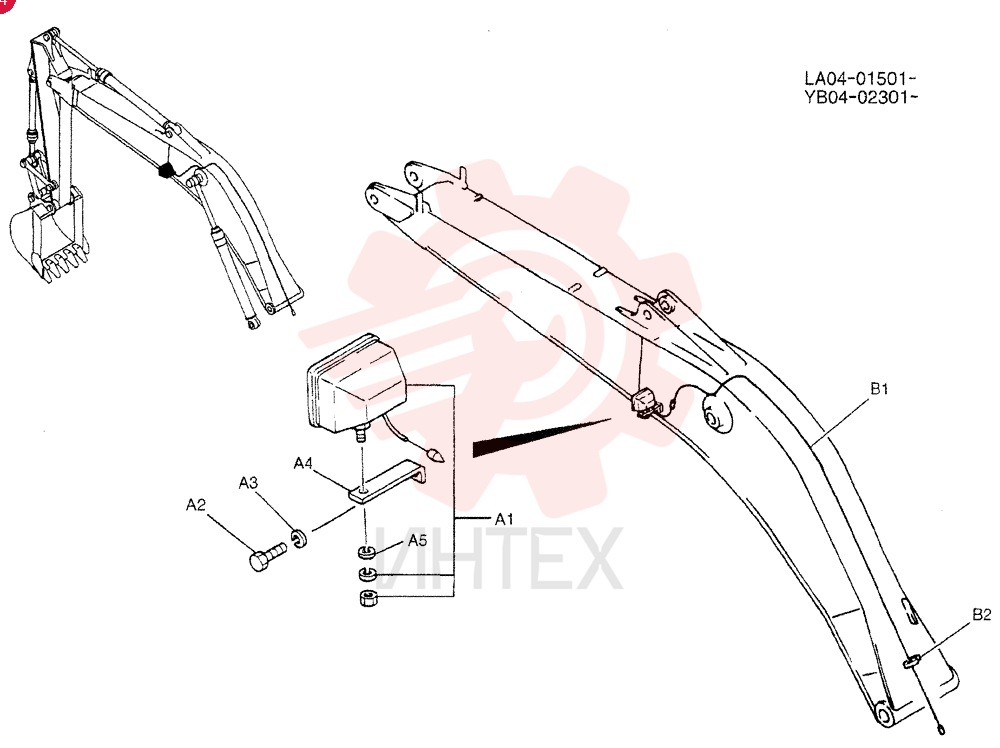

LIGHT ASSY. YV80E00001F1 (1)

LIGHT ASSY. YV80E00001F1 (1)

LIGHT ASSY. YV80E00001F1 (1)

1 YV80E00001F1

  • YV80E00001F1 - LIGHT ASSY.

2 YW80S00001F1

  • YW80S00001F1 - LIGHT ASSY.

3 ZS18C10020

  • ZS18C10020 - SCREW
  • Hex
  • M10 x 20mm

4 2418R323D11

  • 2418R323D11 - WASHER

5 2416T13056

  • 2416T13056 - BRACKET

6 2418R323D13

  • 2418R323D13 - LOCK WASHER

7 YB15E00001F1

  • YB15E00001F1 - HARNESS ASSY
  • BOOM

8 YN15E01005D2

  • YN15E01005D2 - WIRE HARNESS

9 PY01P01043D4

  • PY01P01043D4 - CABLE TIE
  • 4.80mm W x 251mm L
