(SK235SR-2) - SHORT RADIUS EXCAVATOR - TIER 3 ASN YF05-02001 (3/07-12/11)
/

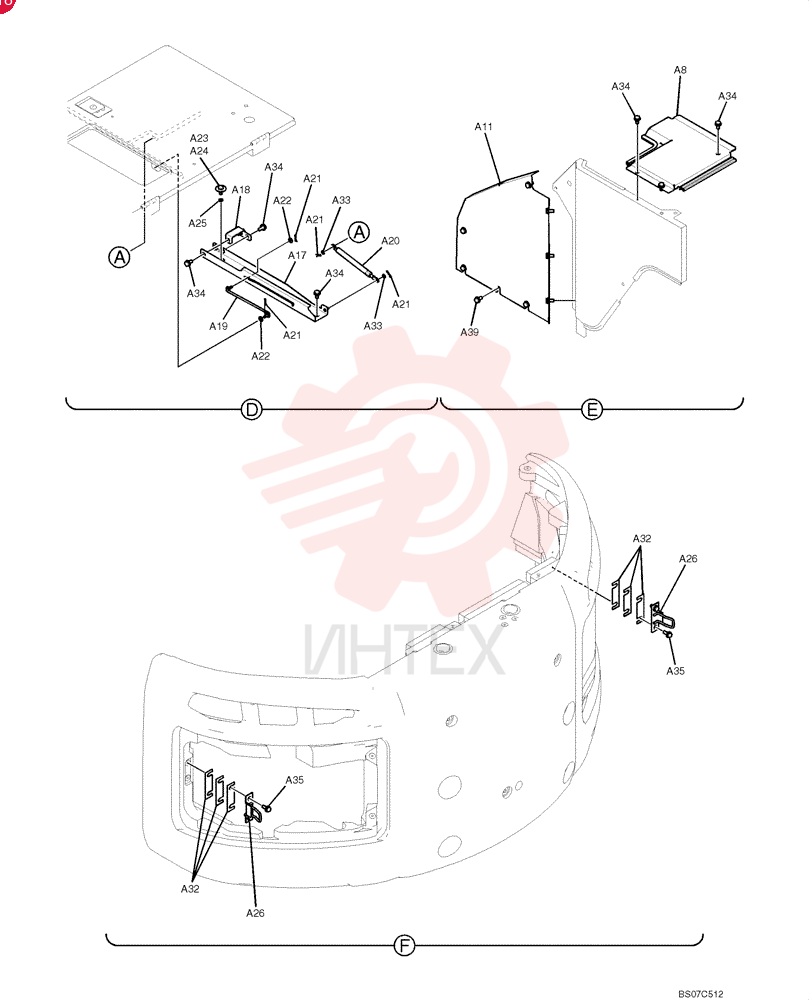

COVER ASSY YF21C01576F1

COVER ASSY YF21C01576F1

COVER ASSY YF21C01576F1

1 YF21C01576F1

  • YF21C01576F1 - COVER ASSY

2 YF21C01712F1

  • YF21C01712F1 - GUARD

3 YF21C01779P2

  • YF21C01779P2 - BRACKET

4 YF21C01777P1

  • YF21C01777P1 - PLATE

5 YF21C01871P1

  • YF21C01871P1 - PLATE

6 YF21C01620P1

  • YF21C01620P1 - STAY

7 YZ21C01096P1

  • YZ21C01096P1 - CYLINDER

8 2419R9D2

  • 2419R9D2 - COTTER PIN

9 YR21C01161P1

  • YR21C01161P1 - WASHER
  • 9mm ID x 22mm OD x 2.3mm Thk

10 ZS18C12030

  • ZS18C12030 - SCREW
  • Hex
  • M12 x 30mm

11 2418T21942

  • 2418T21942 - WASHER

12 YX21C01165D6

  • YX21C01165D6 - SPACER

13 YF21C01551P1

  • YF21C01551P1 - STRIKER PLATE

14 YF21C01802P1

  • YF21C01802P1 - STRIKER PLATE

15 YF21C01782D1

  • YF21C01782D1 - SHIM
  • 2.3mm Thk

16 ZW16P08000

  • ZW16P08000 - WASHER

17 ZM73C12025

  • ZM73C12025 - BOLT
  • M12x25mm - Course Thread

18 ZM73C12025

  • ZM73C12025 - BOLT
  • M12x25mm - Course Thread

19 ZM73C12025

  • ZM73C12025 - BOLT
  • M12x25mm - Course Thread

20 ZM73C12030

  • ZM73C12030 - BOLT
  • M12x30mm - Course Thread

21 ZM73C12030

  • ZM73C12030 - BOLT
  • M12x30mm - Course Thread
