(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

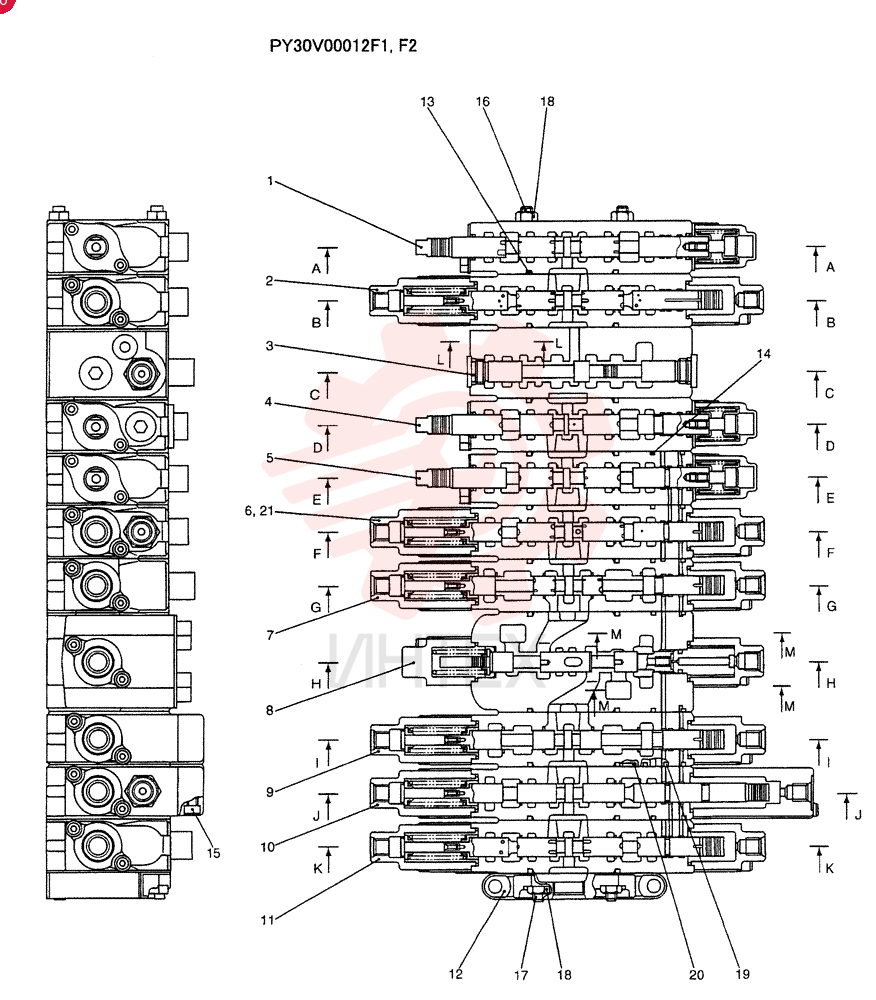

VALVE PY30V00012F1 (4)

VALVE PY30V00012F1 (4)

VALVE PY30V00012F1 (4)

1 PY30V00012F1

  • PY30V00012F1 - VALVE

2 PY30V00012F2

  • PY30V00012F2 - CONTROL VALVE

3 PH30V00020F1

  • PH30V00020F1 - CONTROL VALVE

4 PY30V00013F1

  • PY30V00013F1 - REPAIR KIT

5 PY30V00014F1

  • PY30V00014F1 - VALVE

6 PH30V00023F1

  • PH30V00023F1 - VALVE

7 PY30V00015F1

  • PY30V00015F1 - VALVE

8 PY30V00016F1

  • PY30V00016F1 - CONTROL VALVE

9 PY30V00017F1

  • PY30V00017F1 - PLUG

10 PY30V00018F1

  • PY30V00018F1 - VALVE

11 PY30V00019F1

  • PY30V00019F1 - VALVE

12 PY30V00020F1

  • PY30V00020F1 - CONTROL VALVE

13 PH30V00030F1

  • PH30V00030F1 - CONTROL VALVE

14 PH30V00001S012

  • PH30V00001S012 - COVER

15 YN01V00004S006

  • YN01V00004S006 - O-RING

16 ZD12P02000

  • ZD12P02000 - O-RING
  • 2.4mm Thk x 19.8mm ID
  • 90 Duro

17 ZS23C06040

  • ZS23C06040 - SCREW
  • Hex Socket Head
  • M6 x 40mm

18 PW30V00003S013

  • PW30V00003S013 - BOLT

19 PH30V00001S021

  • PH30V00001S021 - BOLT

20 ZN16C08007

  • ZN16C08007 - NUT

21 ZD12P01400

  • ZD12P01400 - O-RING

22 ZD12P00600

  • ZD12P00600 - O-RING

23 PY30V00016F2

  • PY30V00016F2 - PLUG
