(SK40SR) - COMPACT EXCAVATOR ASN PH04-02801 (NA) (1/90-12/04)
/

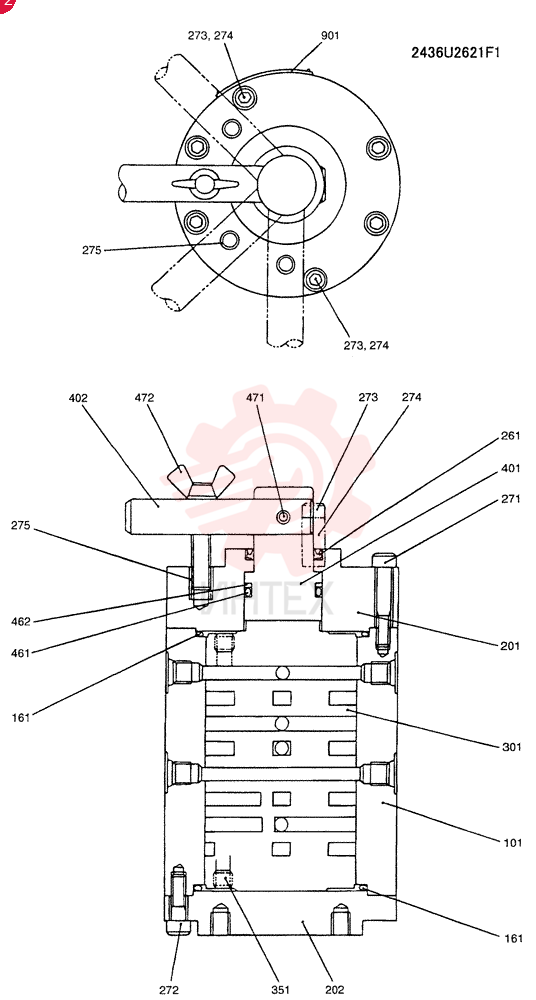

VALVE 2436U2621F1 (2)

VALVE 2436U2621F1 (2)

VALVE 2436U2621F1 (2)

1 2436U2621F1

  • 2436U2621F1 - VALVE

2 NSS

  • NSS - NOT SOLD SEPARAT

3 ZD12G07000

  • ZD12G07000 - O-RING
  • 69.40mm ID x 75.60mm OD x 3.10mm

4 2436U2621S201

  • 2436U2621S201 - COVER

5 2436U2621S202

  • 2436U2621S202 - COVER

6 2436U1244S261

  • 2436U1244S261 - SEAL

7 ZS23C06035

  • ZS23C06035 - SCREW
  • Hex Socket Head
  • M6 x 35mm

8 ZS23C06020

  • ZS23C06020 - SCREW
  • Hex Socket Head
  • M6 x 20mm

9 ZS23C06055

  • ZS23C06055 - CAPSCREW
  • Hex Socket Head
  • M6 x 55mm

10 2436U2621S274

  • 2436U2621S274 - SPACER

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 2436U1244S401

  • 2436U1244S401 - PIN

15 2436U2621S402

  • 2436U2621S402 - LEVER

16 ZD12P02800

  • ZD12P02800 - O-RING

17 ZD85P02800

  • ZD85P02800 - BACK-UP RING

18 ZP26D06025

  • ZP26D06025 - PIN

19 2436U2621S472

  • 2436U2621S472 - BOLT

20 NSS

  • NSS - NOT SOLD SEPARAT
