(WLK15) - WHEEL LOADER (6/97-12/97)
/

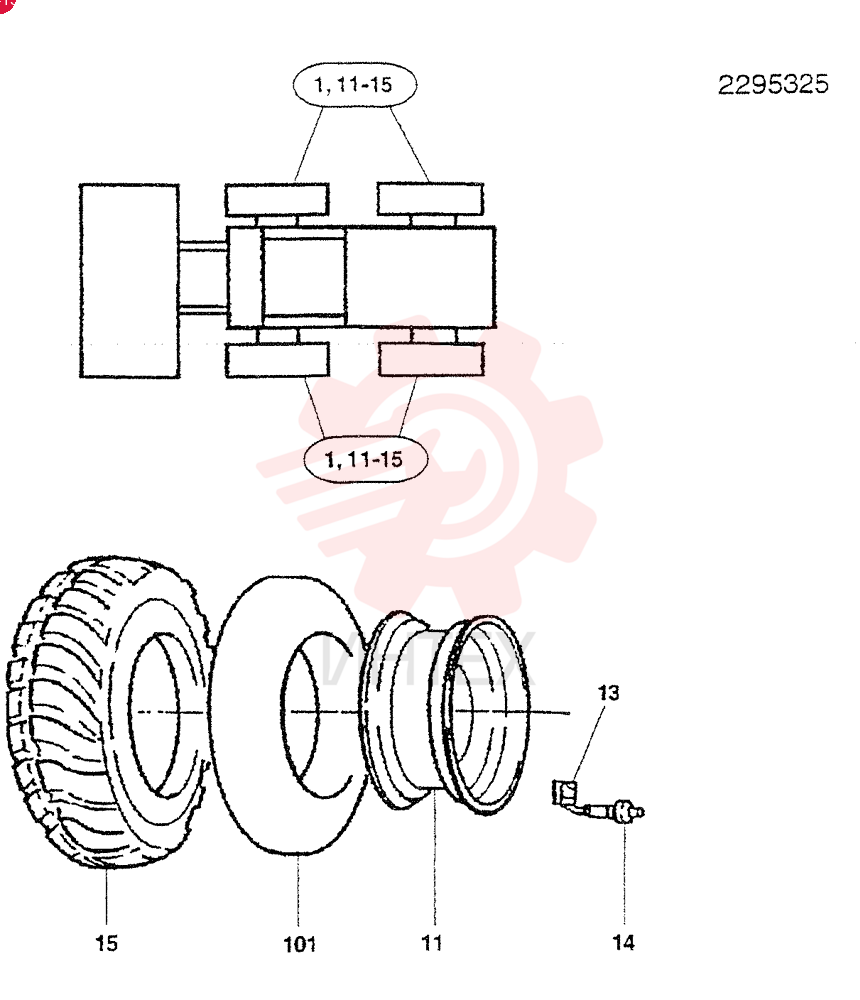

WHEEL AND TIRE 2295325

WHEEL AND TIRE 2295325

WHEEL AND TIRE 2295325

1 2295325

  • 2295325 - WHEEL AND TIRE

2 4513542

  • 4513542 - WHEEL AND TIRE

3 1983119

  • 1983119 - WHEEL DISC
  • DISK WHEEL

4 4109396

  • 4109396 - VALVE STEM
  • VALVE

5 4109417

  • 4109417 - VALVE STEM
  • FOOT

6 2142555

  • 2142555 - TYRE/TIRE
  • TIRE

7 4511364

  • 4511364 - HOSE
