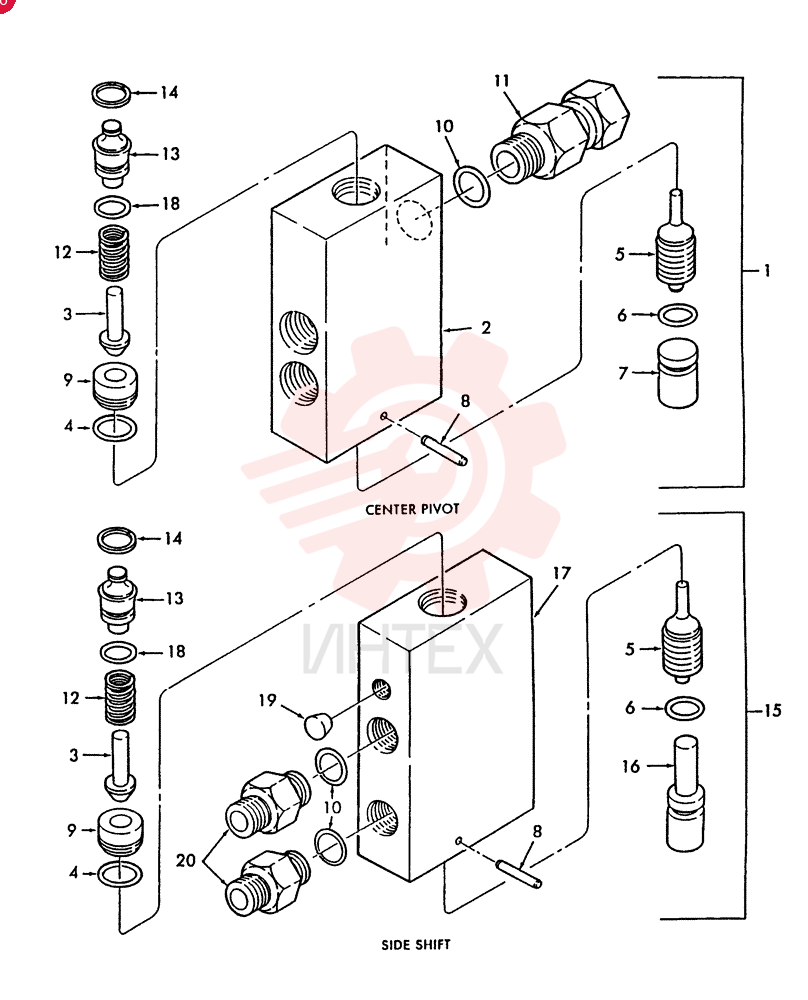

HYDRAULIC VALVE 81873170
1 81873170
- 81873170 - HYDRAULIC VALVE
2 NSS
- NSS - NOT SOLD SEPARAT
3 D5NNB617B
- D5NNB617B - HYDRAULIC VALVE
4 165212
- 165212 - O-RING
- 0.551" ID x 0.691" OD x 0.07"
5 NSS
- NSS - NOT SOLD SEPARAT
6 128999
- 128999 - O-RING
- 0.103" Thk x 0.424" ID
- -111
- Cl 5
- 75 Duro
7 7704148
- 7704148 - STOP
8 354816S7
- 354816S7 - ROLL PIN
9 7704152
- 7704152 - SEAT/SLOT
10 128825
- 128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
11 83959653
- 83959653 - HYD CONNECTOR
12 7704154
- 7704154 - SPRING
13 D5NNB621A
- D5NNB621A - RETAINER
14 81825265
- 81825265 - RETAINER
15 83961940
- 83961940 - HYDRAULIC VALVE
16 83959651
- 83959651 - STOP
17 NSS
- NSS - NOT SOLD SEPARAT
18 9672467
- 9672467 - O-RING
- 0.103" Thk x 0.549" ID
- -113
- Cl 5
- 75 Duro
19 9617020
- 9617020 - PLUG
- 1/4" - 18 x 0.48"
20 9992305
- 9992305 - HYD CONNECTOR
- 13/16" - 16 ORFS x 3/4" - 16 ORB
