(675E) - TRACTOR LOADER BACKHOE (1/96-)
/

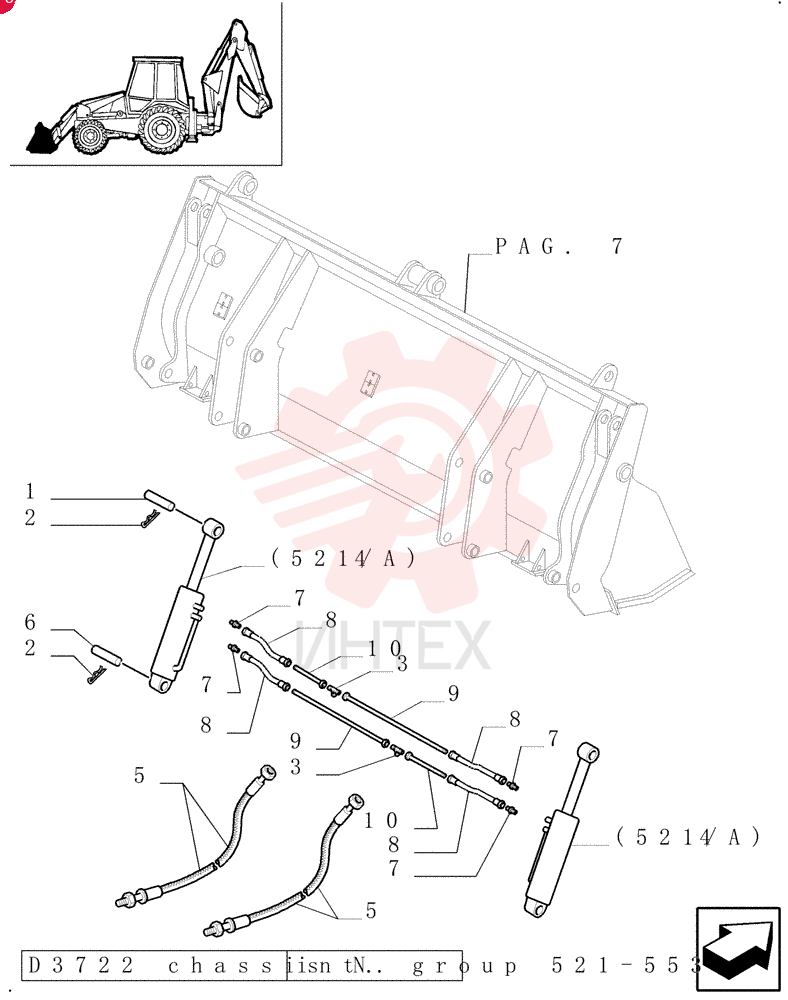

PIN,29.95mm OD x 124mm L 9968158 (6)

PIN,29.95mm OD x 124mm L 9968158 (6)

PIN,29.95mm OD x 124mm L 9968158 (6)

1 9968158

  • 9968158 - PIN
  • 29.95mm OD x 124mm L

2 9969123

  • 9969123 - ROLL PIN

3 9968168

  • 9968168 - 3 WAY CONNECTION

4 9968163

  • 9968163 - HYDRAULIC CYLINDER

5 85812213

  • 85812213 - FLEXIBLE HOSE
  • 700mm lg

6 9968162

  • 9968162 - PIN

7 9968165

  • 9968165 - HYD CONNECTOR

8 9968166

  • 9968166 - HOSE

9 9968167

  • 9968167 - HYD TUBE

10 9968169

  • 9968169 - HYD TUBE
