New Holland Construction
/
(675E) - TRACTOR LOADER BACKHOE (1/96-)
/

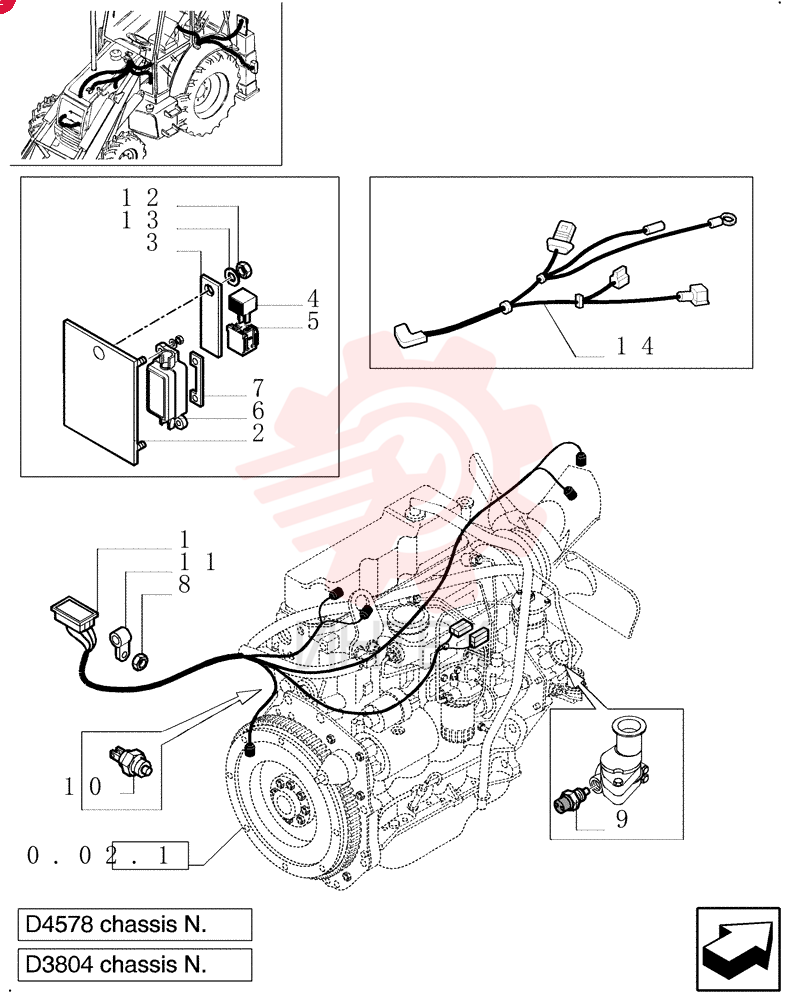

WIRE HARNESS 85802383

WIRE HARNESS 85802383

WIRE HARNESS 85802383

1 85802383

  • 85802383 - WIRE HARNESS

2 85805530

  • 85805530 - WIRE HARNESS

3 85803863

  • 85803863 - PLATE

4 85805687

  • 85805687 - SUPPORT

5 85803862

  • 85803862 - PLATE

6 85805162

  • 85805162 - RELAY
  • 12V
  • 70A

7 82013124

  • 82013124 - RELAY
  • 12V
  • 30A

8 82003697

  • 82003697 - RELAY
  • 12V
  • 30A

9 85804074

  • 85804074 - WIRE HARNESS

10 85803865

  • 85803865 - ELEC CONNECTOR

11 85803864

  • 85803864 - FUSE HOLDER

12 12393149

  • 12393149 - FUSED LINK

13 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

14 85803881

  • 85803881 - SENDER UNIT

15 85812232

  • 85812232 - PRESSURE SWITCH

16 85813383

  • 85813383 - THERMOSTAT

17 85802889

  • 85802889 - CLAMP

18 10788811

  • 10788811 - NUT
  • M5
  • Cl 8

19 12637811

  • 12637811 - WASHER

20 85807881

  • 85807881 - WIRE HARNESS
