New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

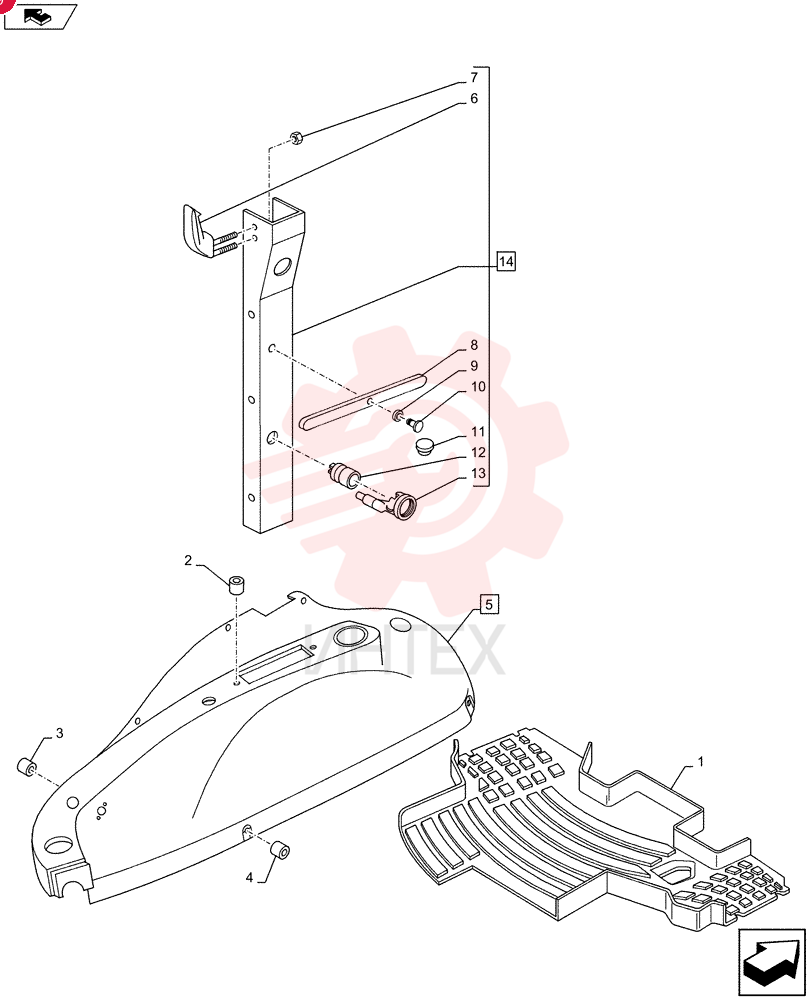

FLOOR MAT 85804867

FLOOR MAT 85804867

FLOOR MAT 85804867

1 85804867

  • 85804867 - FLOOR MAT

2 85802259

  • 85802259 - THREADED BUSHING
  • M4 x 9.7mm OD x 20mm L

3 85805347

  • 85805347 - THREADED BUSHING
  • M6 x 9.7mm OD x 20mm L

4 15627011

  • 15627011 - RIVET
  • Flat
  • M6 OD x 15.5mm L

5 87362094

  • 87362094 - SOFT TRIM

6 5178468

  • 5178468 - COAT HOOK

7 14084011

  • 14084011 - FLANGE NUT
  • M4 x .7
  • Flg

8 83961823

  • 83961823 - STRAP
  • 800mm L

9 12624101

  • 12624101 - WASHER
  • M5 x 22 x 2

10 85806154

  • 85806154 - RIVET

11 79111978

  • 79111978 - PLUG
  • 23mm OD

12 5148132

  • 5148132 - LAMP SOCKET

13 5148131

  • 5148131 - HOUSING

14 85819287

  • 85819287 - SOFT TRIM
