(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

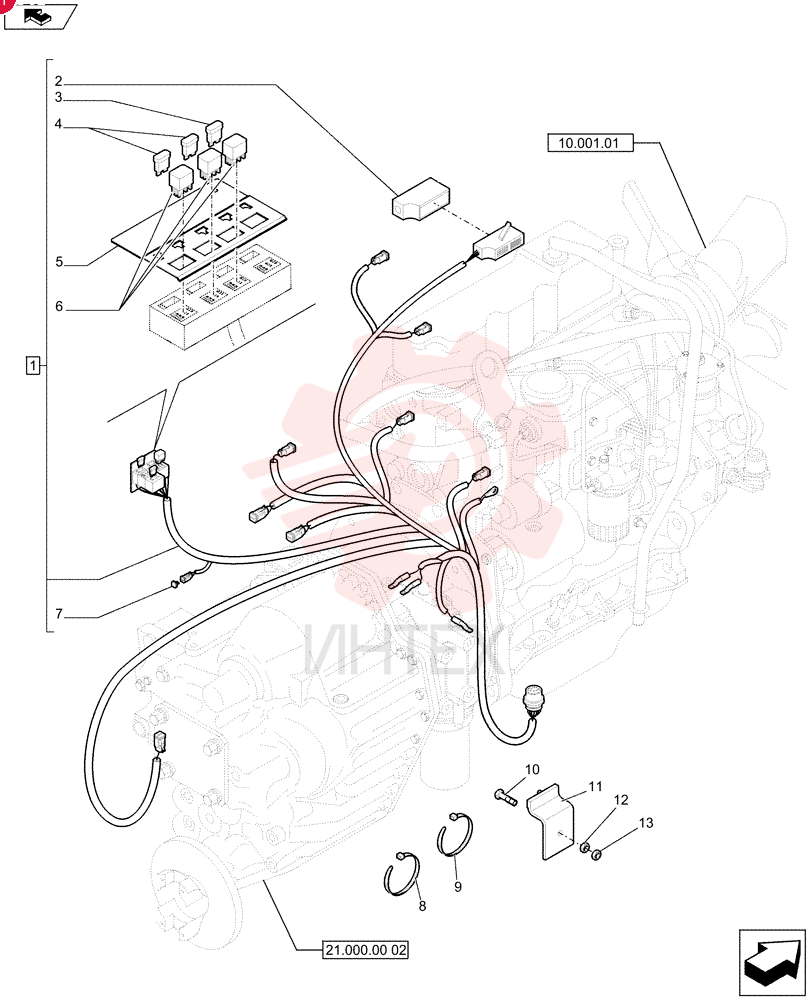

HARNESS 84264158 (2)

HARNESS 84264158 (2)

HARNESS 84264158 (2)

1 84264158

  • 84264158 - HARNESS

2 87675095

  • 87675095 - CUP COVER

3 87693742

  • 87693742 - FUSE
  • 5A

4 92277

  • 92277 - FUSE
  • 30 Amp

5 84282180

  • 84282180 - SUPPORT

6 72274965

  • 72274965 - RELAY
  • 12V
  • 70 Amp

7 87640750

  • 87640750 - ELEC CONNECTOR
  • 47 Ohm
  • 5W

8 87567355

  • 87567355 - CLAMP
  • 202mm L x 4.6mm W x 1.2mm Thk

9 87567356

  • 87567356 - CLAMP
  • 200mm L x 4.6mm W x 1.2mm Thk

10 47049186

  • 47049186 - BOLT
  • M10 x 30mm

11 87562089

  • 87562089 - COVER

12 11701711

  • 11701711 - NUT
  • Hex
  • M10
  • Cl 8
  • ZND

13 87565124

  • 87565124 - NUT
