(B115 TIER 3) - LOADER BACKHOE (2/07-)
/

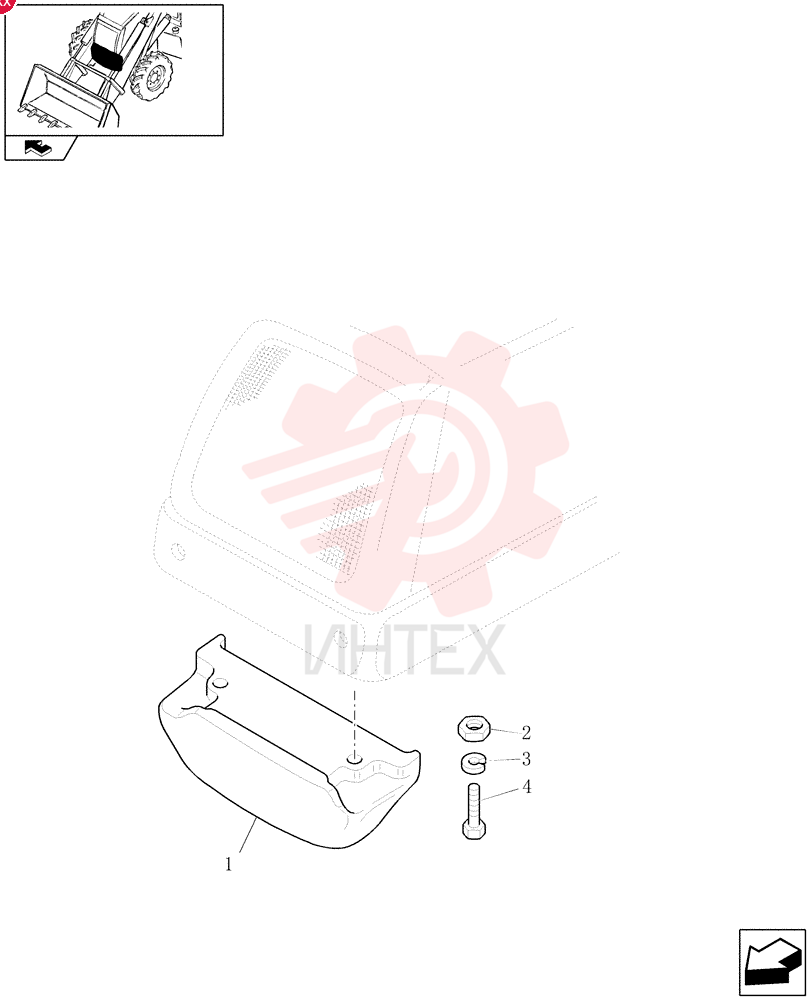

WEIGHT 85804725

WEIGHT 85804725

WEIGHT 85804725

1 85804725

  • 85804725 - WEIGHT

2 12575121

  • 12575121 - NUT
  • M20 x 1.5
  • Cl 10

3 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

4 15989334

  • 15989334 - BOLT
  • Hex
  • M20 x 1.5 x 110mm
  • Cl 10.9
