(B115B) - BACKHOE LOADER - TIER 3 (11/10-)
/

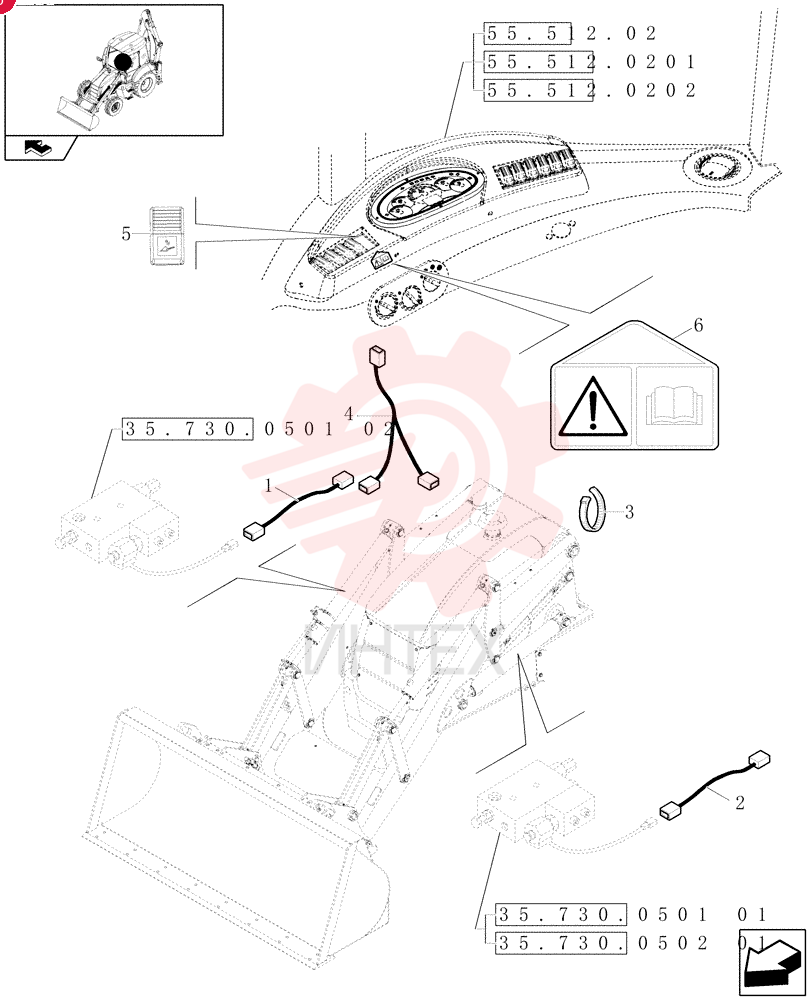

WIRE HARNESS 85826276

WIRE HARNESS 85826276

WIRE HARNESS 85826276

1 85826276

  • 85826276 - WIRE HARNESS

2 85826275

  • 85826275 - WIRE HARNESS

3 14560187

  • 14560187 - COLLAR
  • 199mm L

4 85826274

  • 85826274 - HARNESS

5 85819074

  • 85819074 - SWITCH ASSY

6 85805228

  • 85805228 - DECAL
