New Holland Construction
/
(B115B) - BACKHOE LOADER TIER 3 (2008)
/

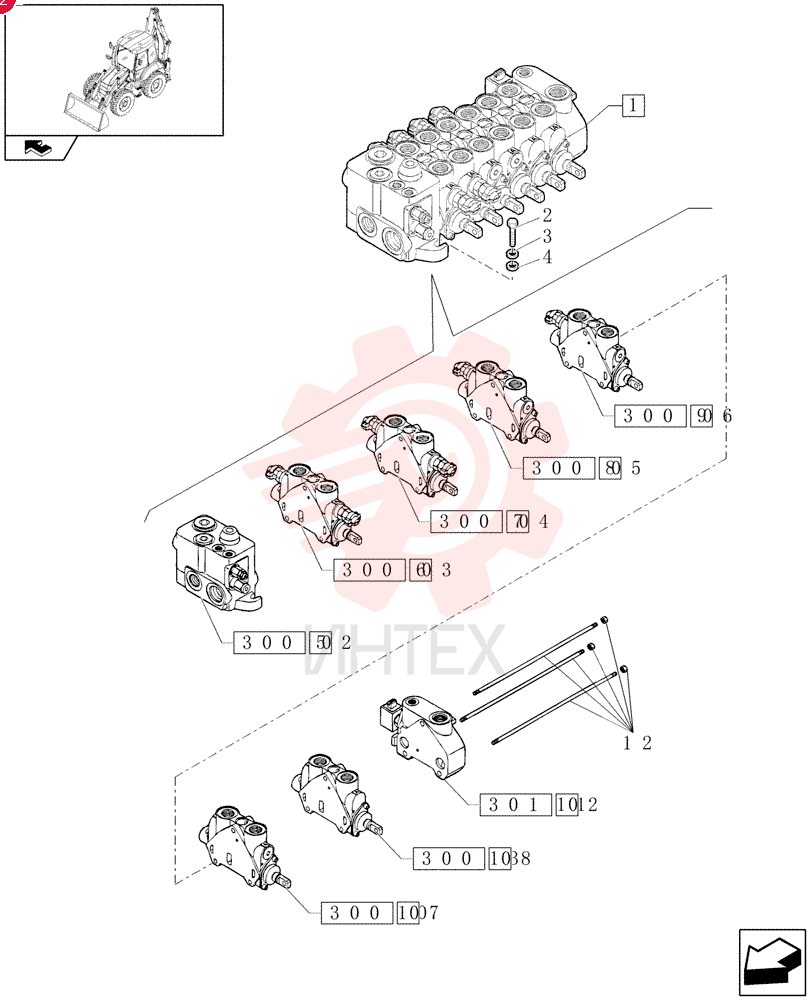

CONTROL VALVE 87734104

CONTROL VALVE 87734104

CONTROL VALVE 87734104

1 87734104

  • 87734104 - CONTROL VALVE

2 15888721

  • 15888721 - BOLT
  • Hex
  • M10 x 1.25 x 55mm
  • Cl 8.8

3 11190679

  • 11190679 - BELLEVILLE WASHER
  • M10 Bolt Size x 27mm OD x 2.5mm Thk

4 85818943

  • 85818943 - SPACER
  • 11mm ID x 30mm OD x 11mm L

5 87610847

  • 87610847 - HYDRAULIC VALVE

6 85826245

  • 85826245 - VALVE SECTION

7 85826253

  • 85826253 - SECTOR

8 85826246

  • 85826246 - SECTOR

9 87758457

  • 87758457 - SPOOL

10 87542780

  • 87542780 - VALVE SECTION

11 85826249

  • 85826249 - SECTOR

12 85811958

  • 85811958 - KIT

13 87611176

  • 87611176 - VALVE SECTION
