(B115B) - BACKHOE LOADER TIER 3 (2008)
/

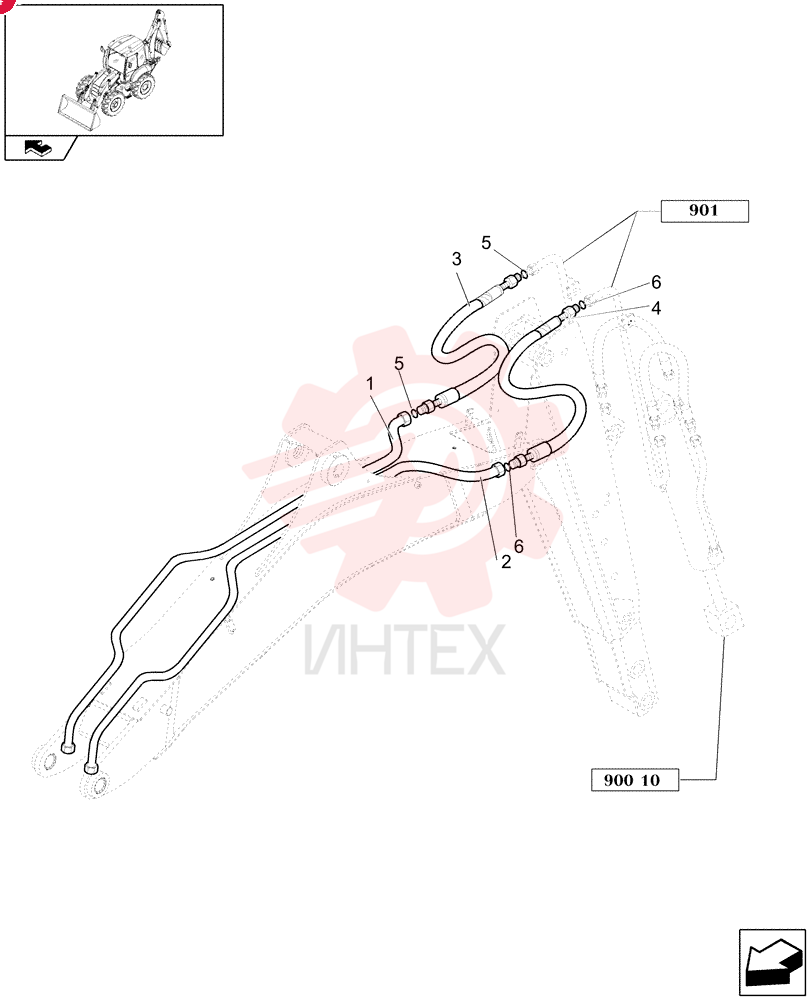

TUBE 85815674

TUBE 85815674

TUBE 85815674

1 85815674

  • 85815674 - TUBE

2 85815676

  • 85815676 - HYD TUBE

3 85817106

  • 85817106 - FLEXIBLE HOSE
  • 15.88mm ID x 1100mm L

4 85817107

  • 85817107 - FLEXIBLE HOSE
  • 12.7mm ID x 1090mm L

5 9991976

  • 9991976 - O-RING
  • 0.07" Thk x 0.739" ID
  • -18
  • Cl 6
  • 90 Duro

6 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
